Secondary/Configurable Control Component Views

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

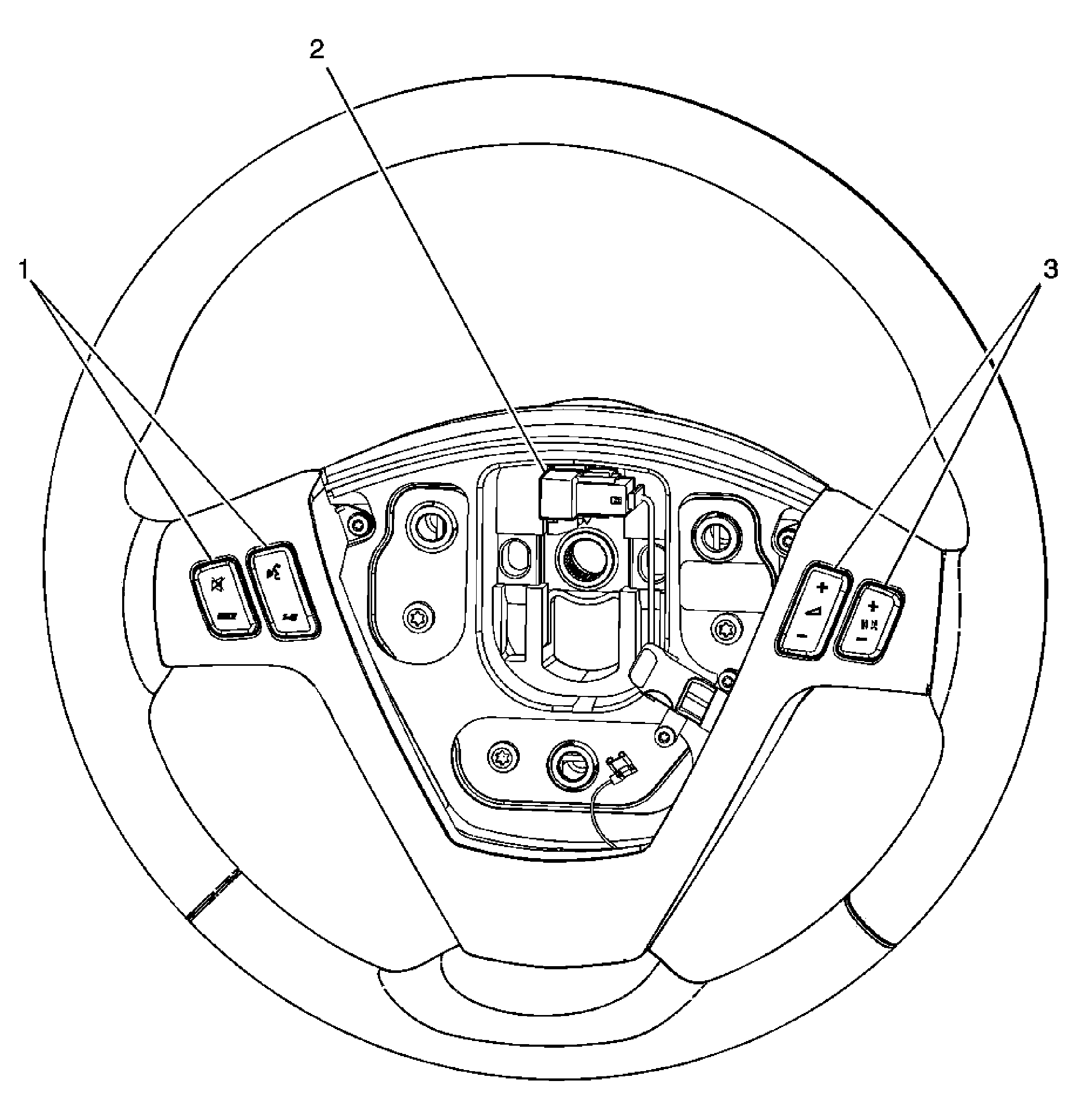

Fig 1: Steering Wheel Component View
GM1847702Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Controls - Left
2 C208
3 Steering Wheel Controls - Right
