Installation Procedure

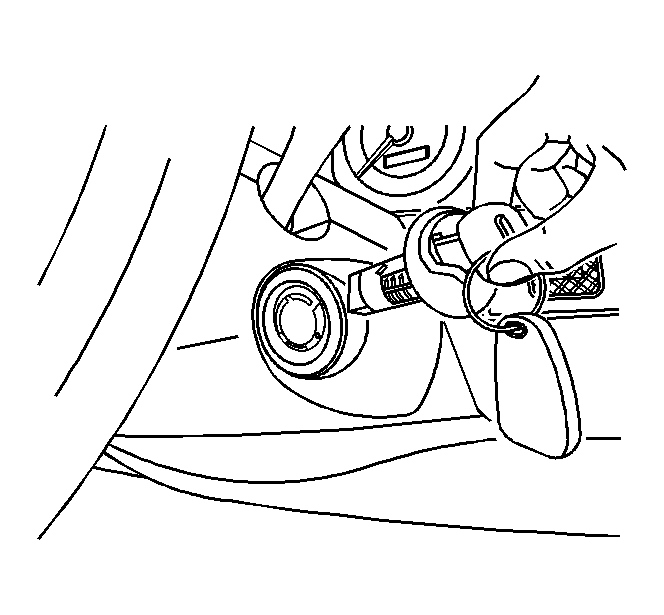

    Fig 1: View Of Ignition Lock Cylinder
    GM803003Courtesy of GENERAL MOTORS CORP.
  1. Install the ignition lock cylinder by doing the following procedure:
    • Align the positioning locking tab slot on the lock module to the positioning tab on the ignition lock cylinder.
    • Push the lock cylinder in until the locking tab locks in the lock module.
  2. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
