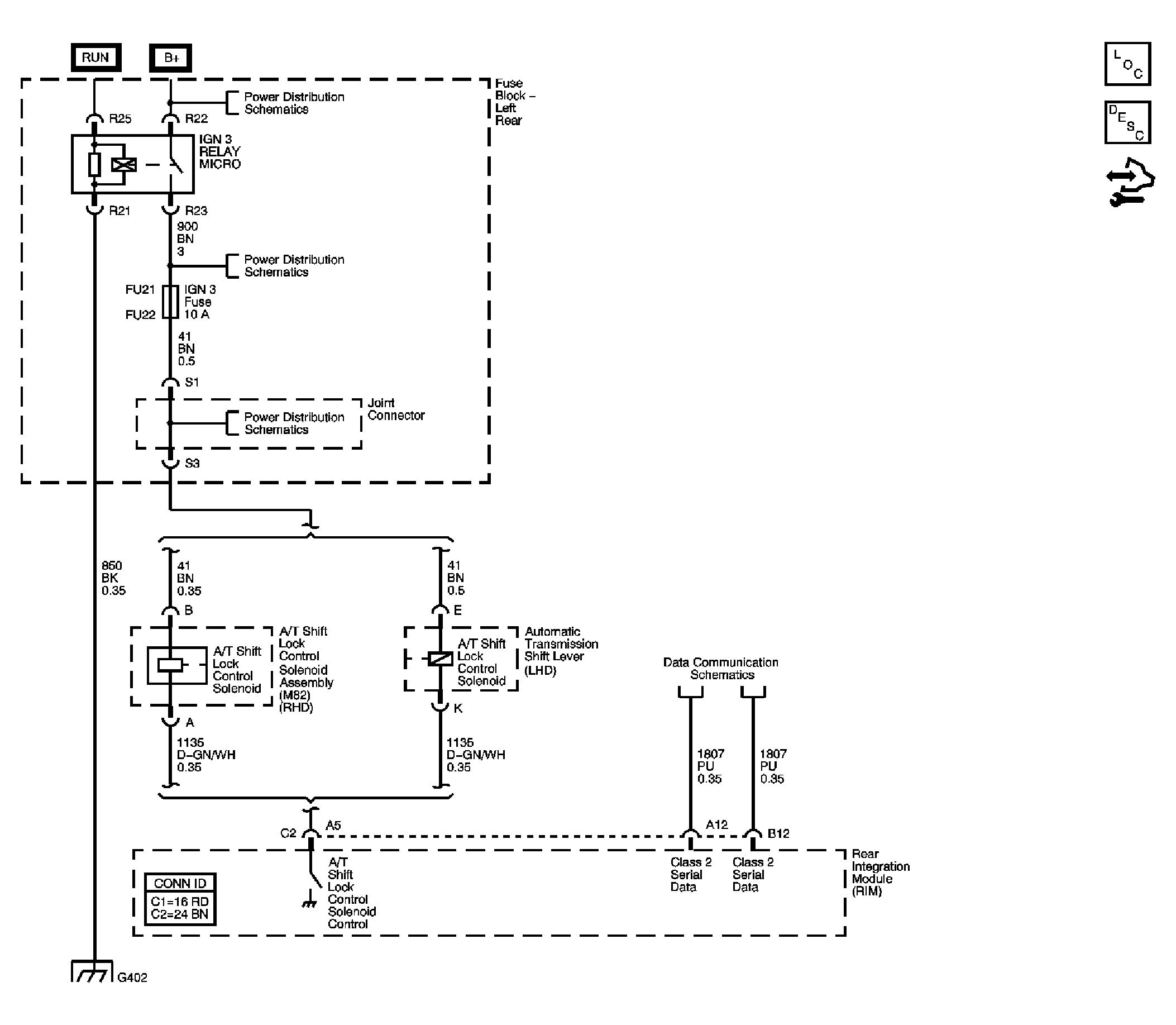

Home >> Cadillac >> 2007 >> CTS Base, 2.8 T, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock System >> Schematic and Routing Diagrams >> Shift Lock Control Schematics
