Seat Belt Component Views

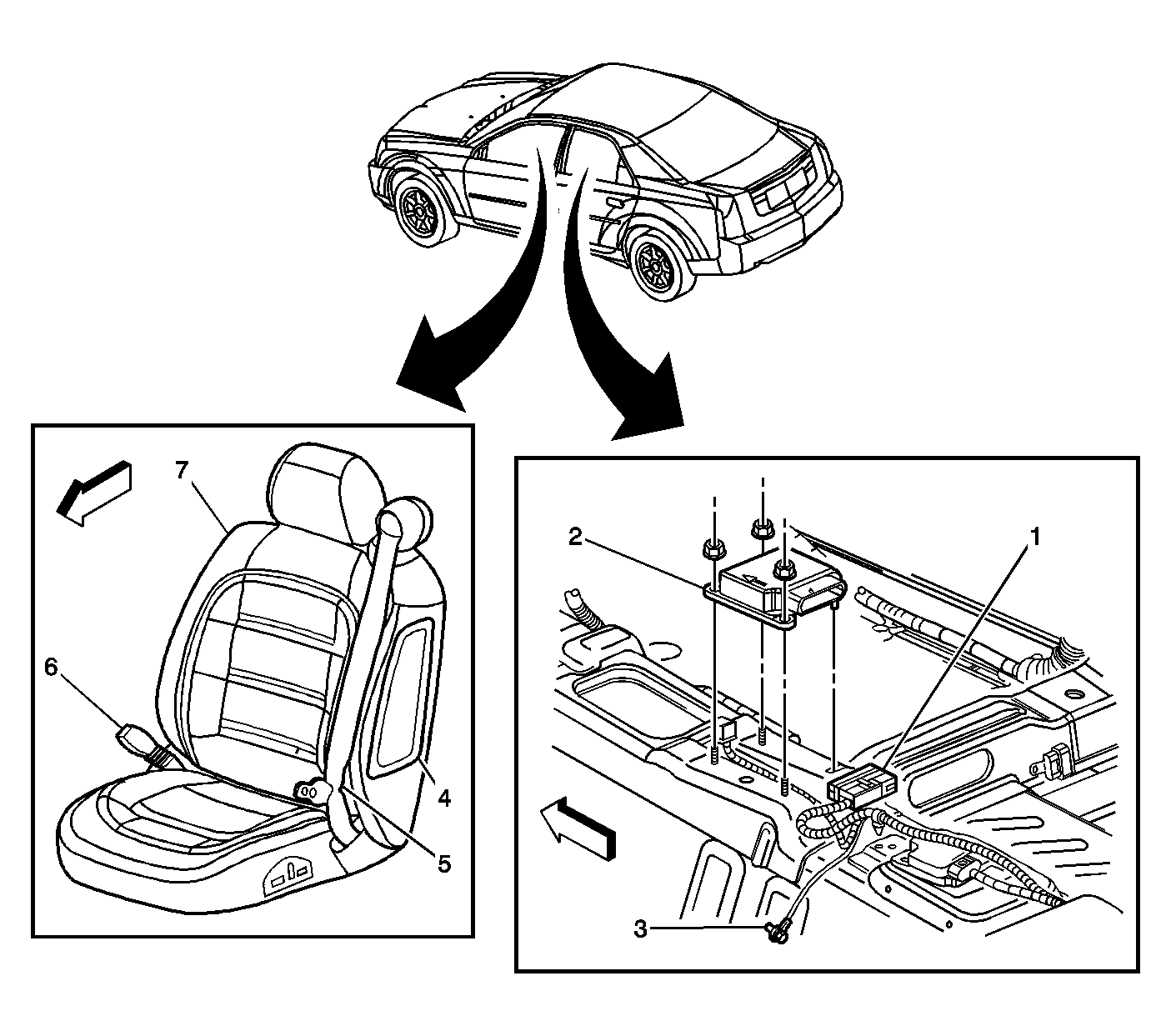

Fig 1: Seat Belts Sub-System
GM801464Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
2 Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 G306
4 Inflatable Restraint Side Impact Module - Left
5 Seat Belt - Left
6 Seat Belt Switch/Seat Belt Pretensioner - Left, Right Similar
7 Seat-Driver - Left, Right Similar
