Installation Procedure

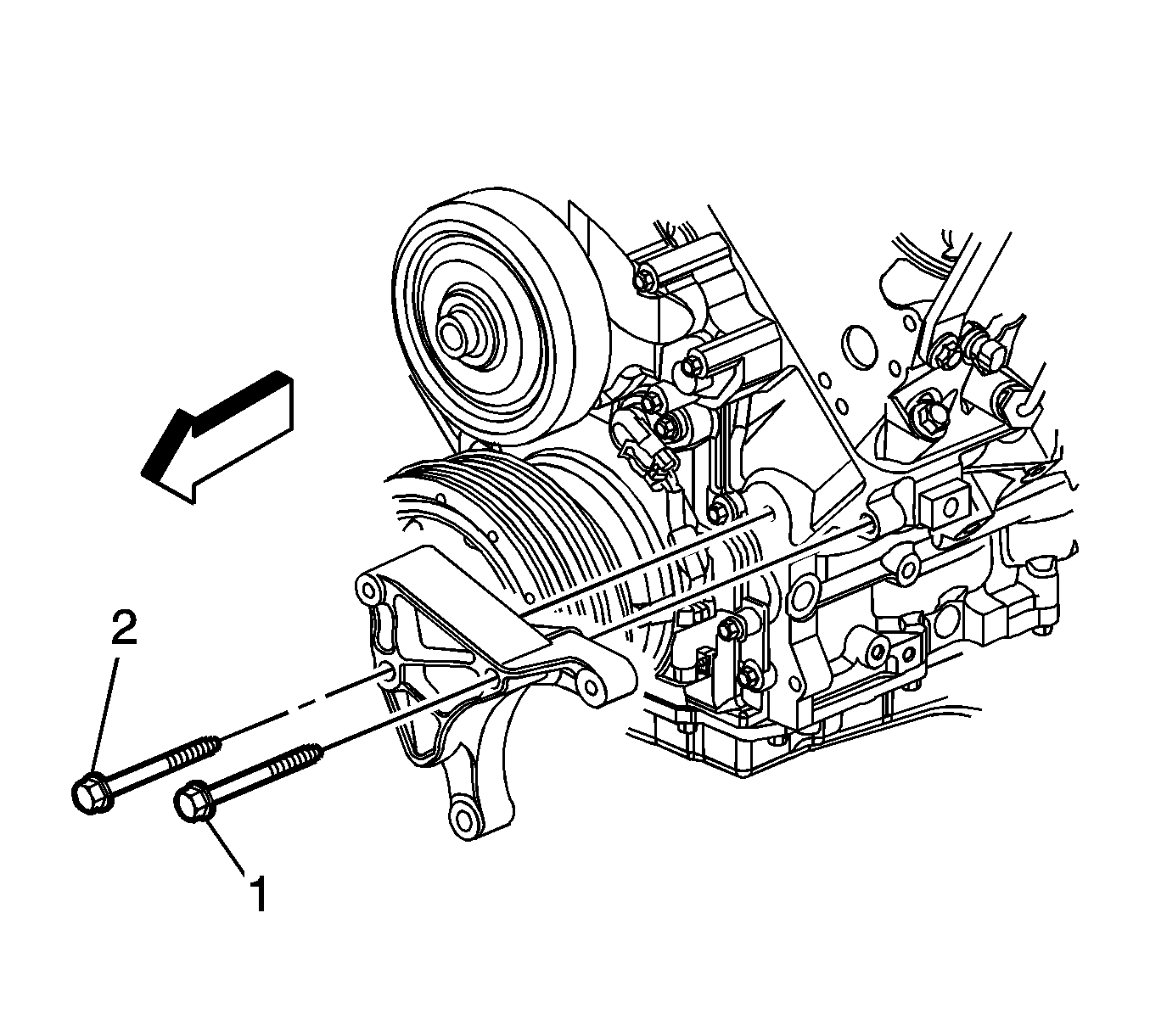

    Fig 1: Locating Generator Bracket To Engine & Mounting Bolts
    GM1455612Courtesy of GENERAL MOTORS CORP.
  1. Install the generator bracket to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bracket bolts.

    Tighten:  Tighten the generator bracket bolts to 50 N.m (37 lb ft).

  3. Install the accessory drive belt idler pulley. Refer to Drive Belt Idler Pulley Replacement .
  4. Install the generator. Refer to Generator Replacement (LP1, LY7)  or Generator Replacement (LS2) .
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
