Installation Procedure

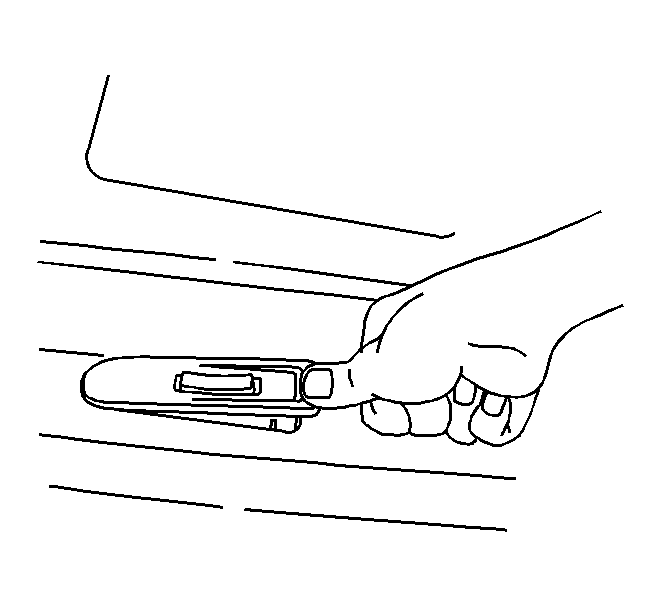

    Fig 1: Installing Rear Door Power Window Switch
    GM754074Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors.
  2. Install the switch into the door trim panel.
  3. Engage the front of the switch to the door panel.
  4. Press down on the switch evenly to engage the retainer.
