Installation Procedure

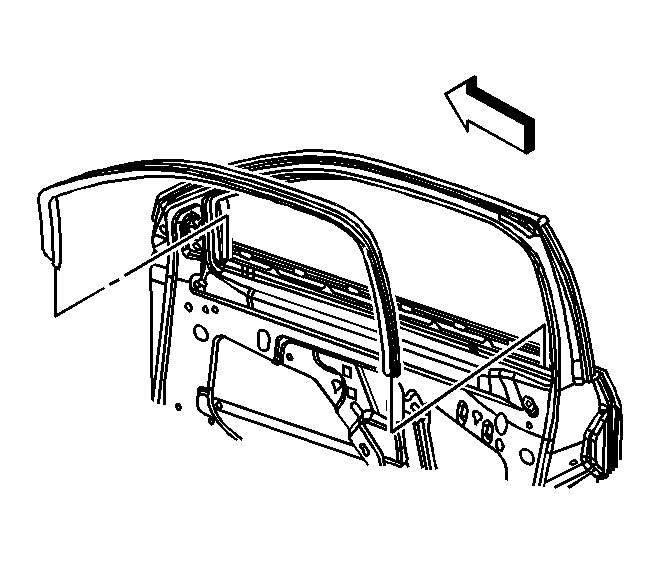

    Fig 1: View Of Front Door Window Inner Weatherstrip
    GM758948Courtesy of GENERAL MOTORS CORP.
  1. Starting at the upper, rear corner, install the inner window weatherstrip to the door pinchweld flange.
  2. Install the window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  3. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
