Installation Procedure

  1. Install the wiring harness in the position in which it was removed.
  2. Connect the electrical connector to the power seat switch.
  3. Slide the power seat switch upward into the seat cushion frame.
  4. Install the push-in fastener in order to secure the power seat switch to the seat cushion frame.
  5. Install the J channel retainers securing the seat cushion cover to the seat cushion frame.
  6. Install the seat cushion cover over the switch.
  7. Position the power seat switch bezel over the switches.
  8. Engage the power seat switch bezel fasteners in order to secure the bezel to the seat cushion frame.

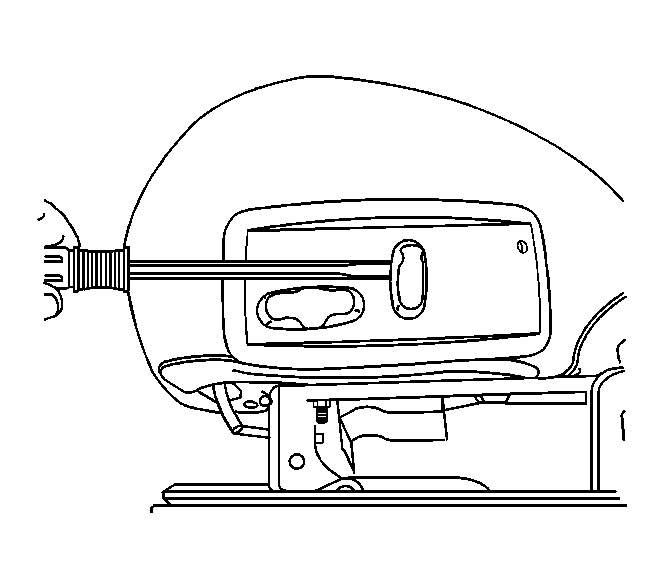

    9. Fig 1: Removing Power Seat Switch Knobs
    GM715082Courtesy of GENERAL MOTORS CORP.
  9. Install the power seat switch knobs.
  10. Install the seat cushion. Refer to Front Seat Cushion Replacement .
  11. Enable the SIR System. Refer to SIR Disabling and Enabling for driver and passenger seat.
  12. Perform the passenger presence system preload test procedure when replacing or performing any repairs on the passenger seat. Refer to Control Module References for replacement, setup, and programming.
