Remote Power Steering Fluid Reservoir Replacement

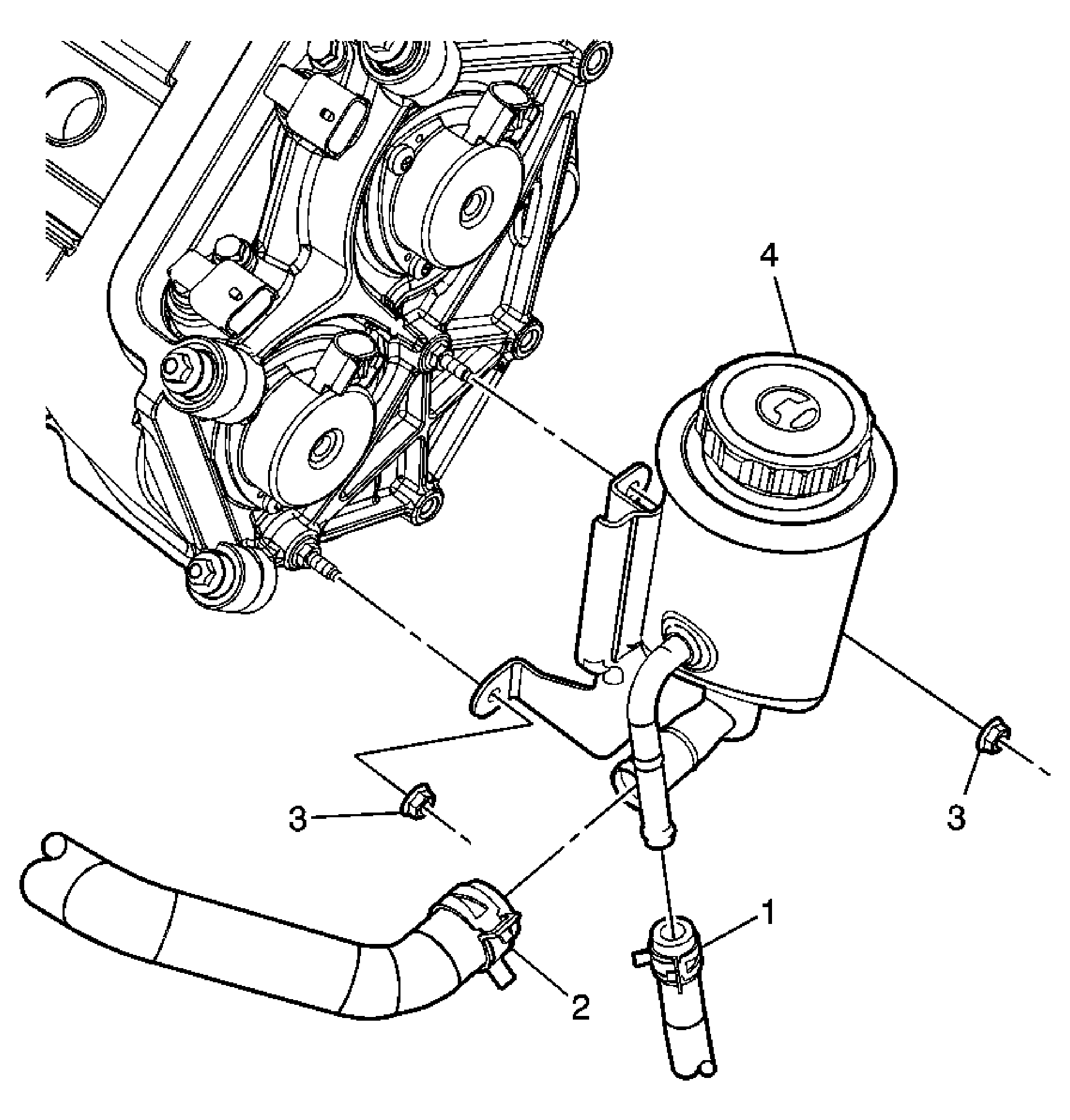

Fig 1: Remote Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the fuel injector sight shield. Refer to Intake Manifold Sight Shield Replacement or Fuel Injector Sight Shield Replacement .
1	Power Steering Reservoir Inlet Hose
2	Power Steering Reservoir Outlet Hose
3	Power Steering Reservoir Bracket Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (7 lb ft)
4	Power Steering Reservoir Tip: Bleed the power steering system. Refer to Power Steering System Bleeding .
