Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

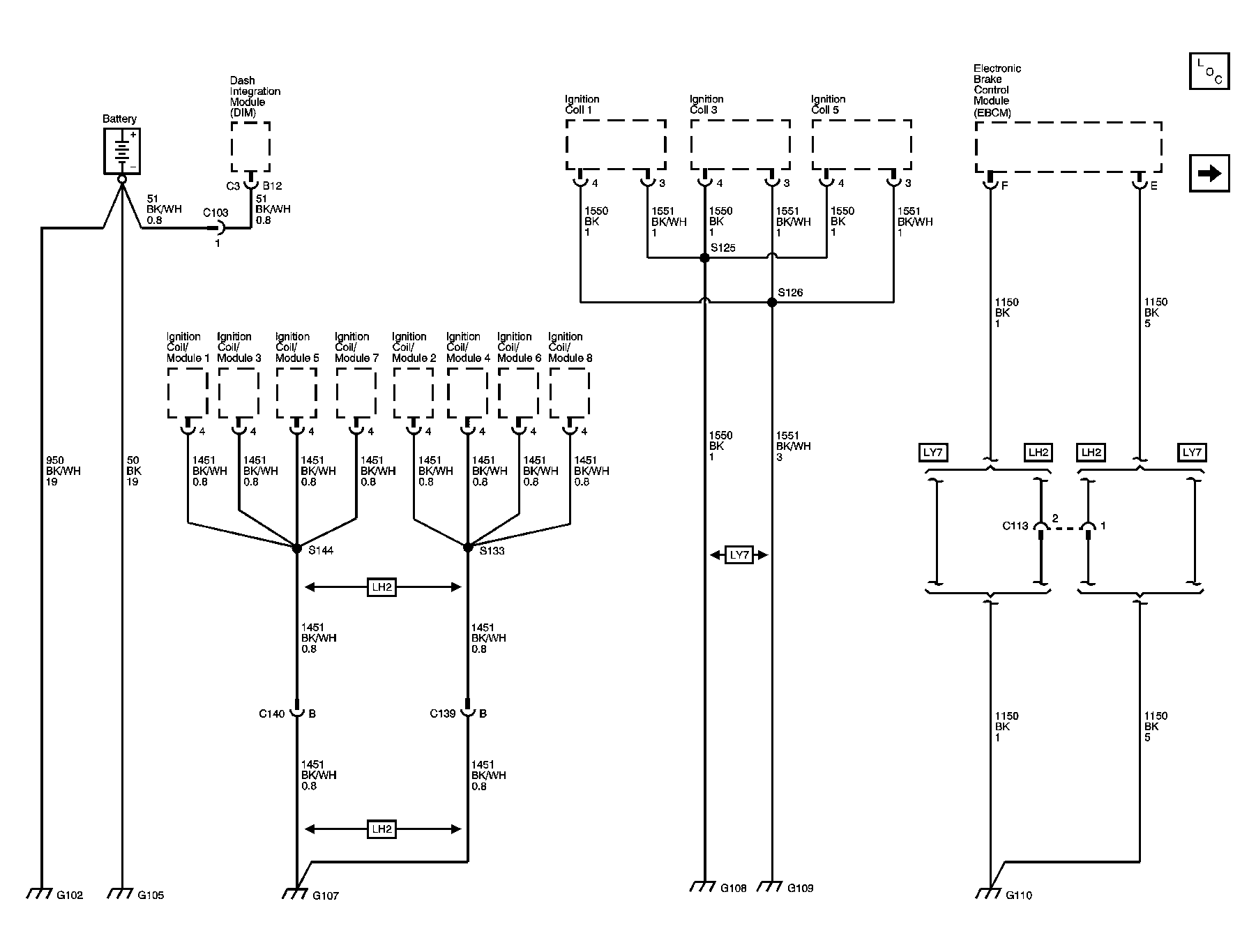

Fig 1: G102, G105, G107, G108, G109 & G110 Schematic

Courtesy of GENERAL MOTORS CORP.

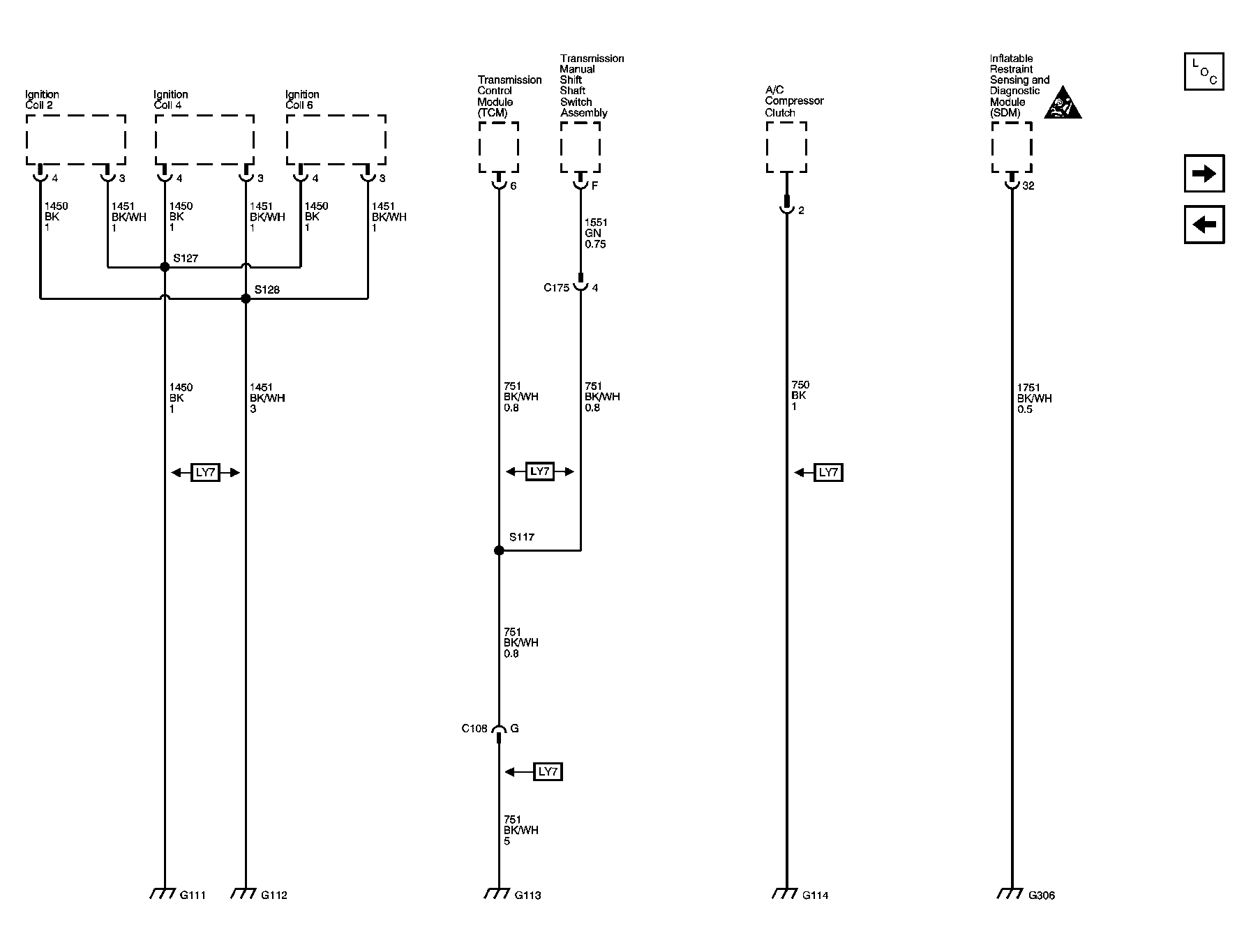

Fig 2: G111, G112, G113, G114 & G306 Schematic

Courtesy of GENERAL MOTORS CORP.

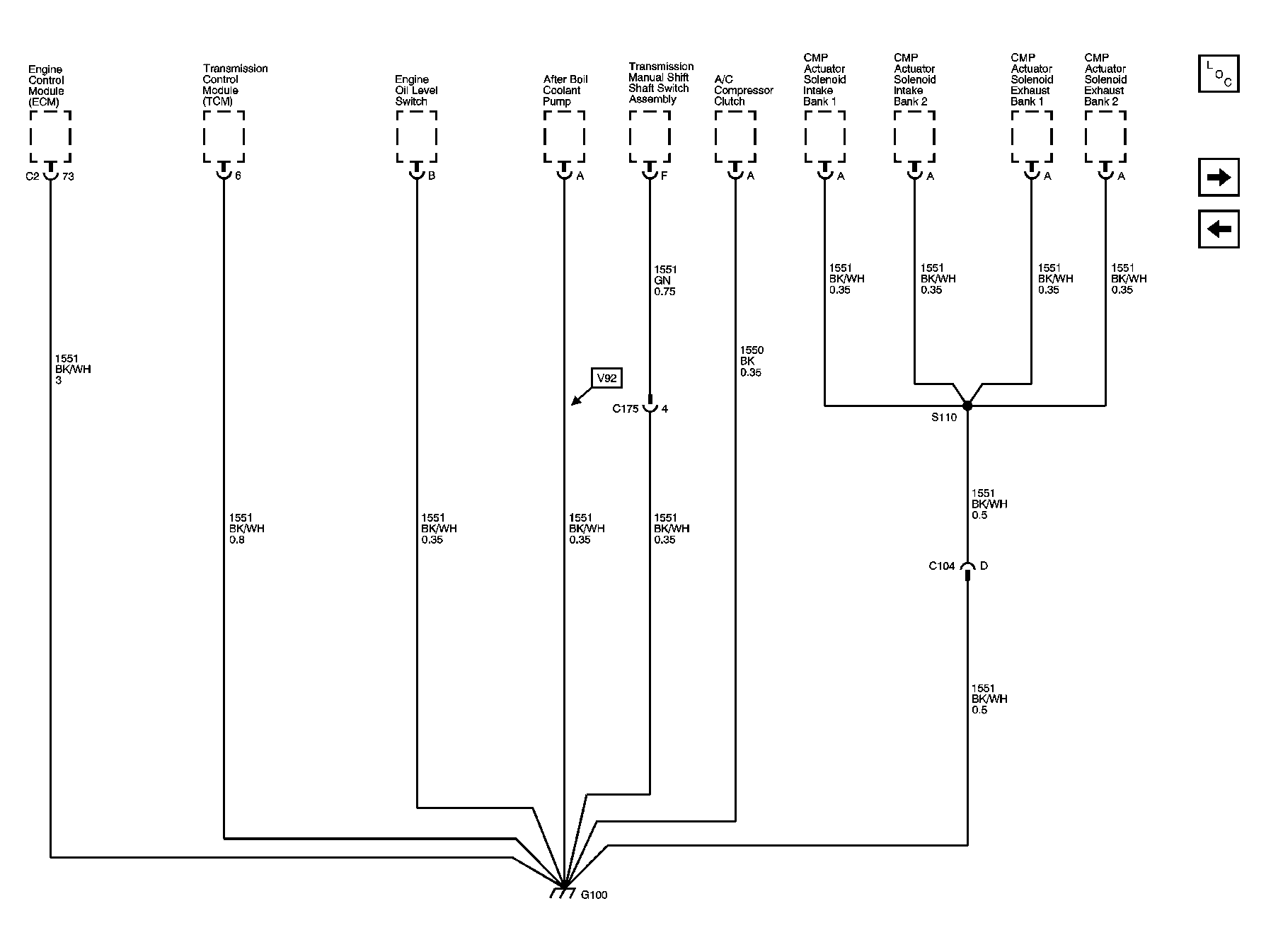

Fig 3: G100 Schematic - LH2

Courtesy of GENERAL MOTORS CORP.

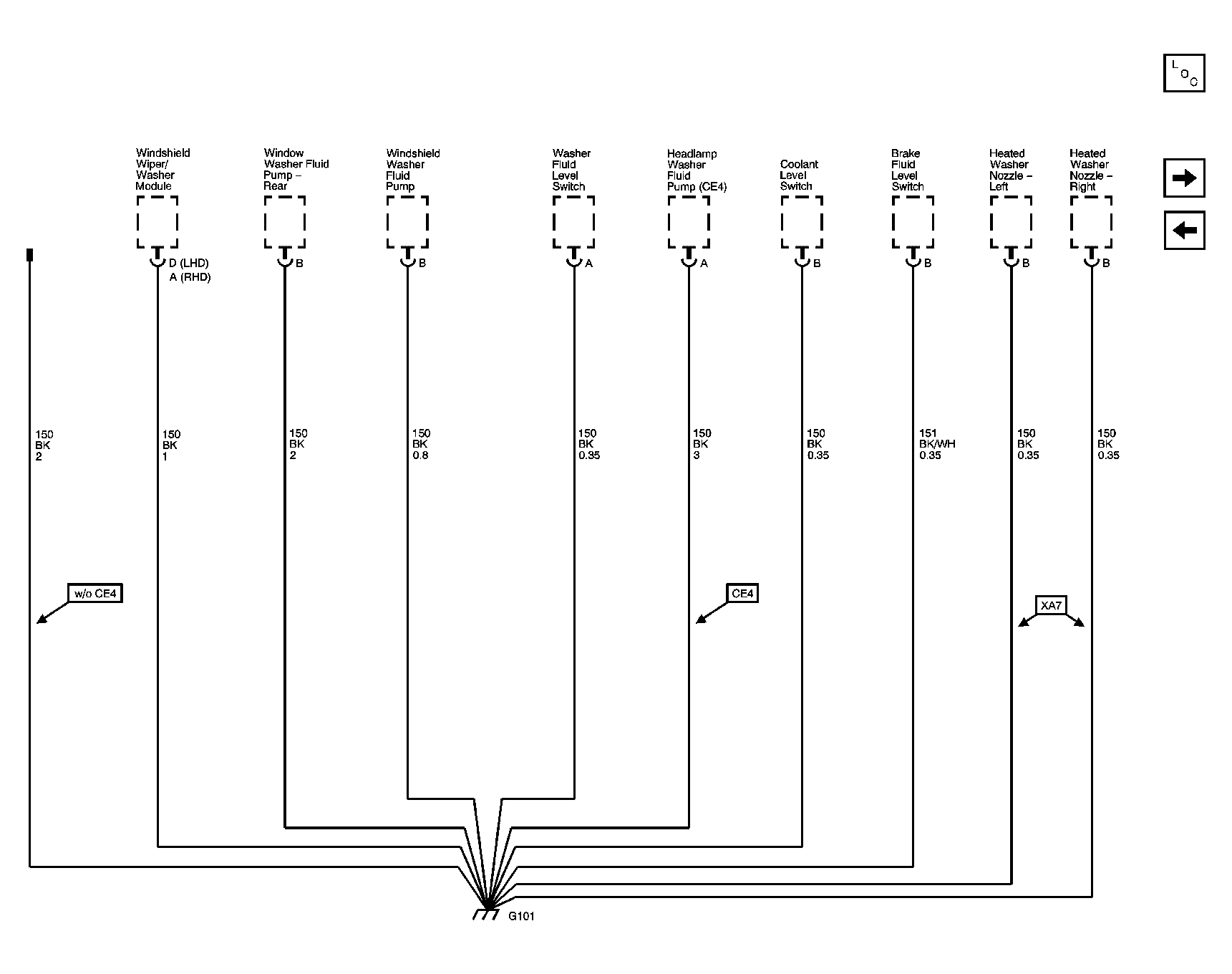

Fig 4: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

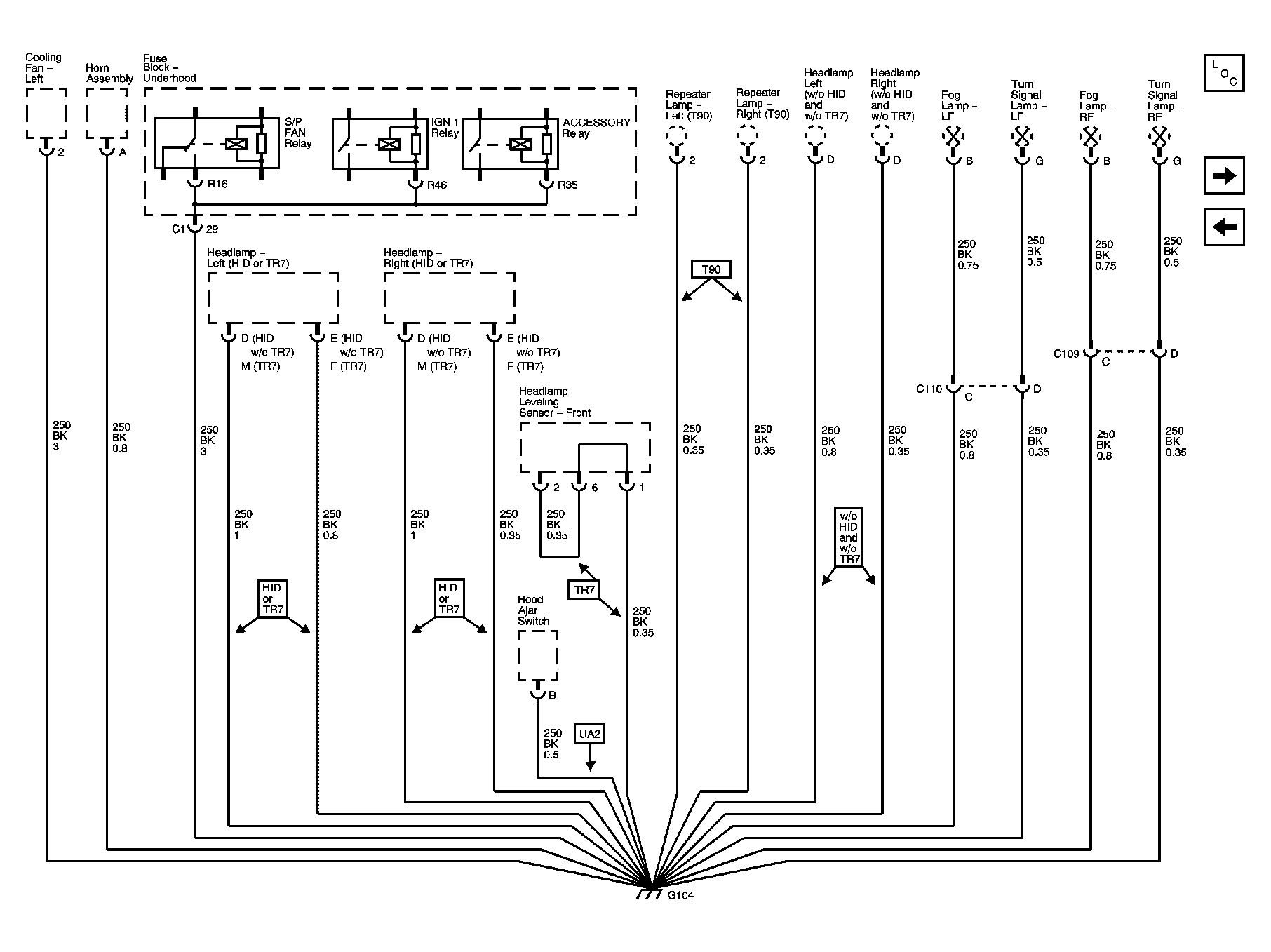

Fig 5: G104 Schematic

Courtesy of GENERAL MOTORS CORP.

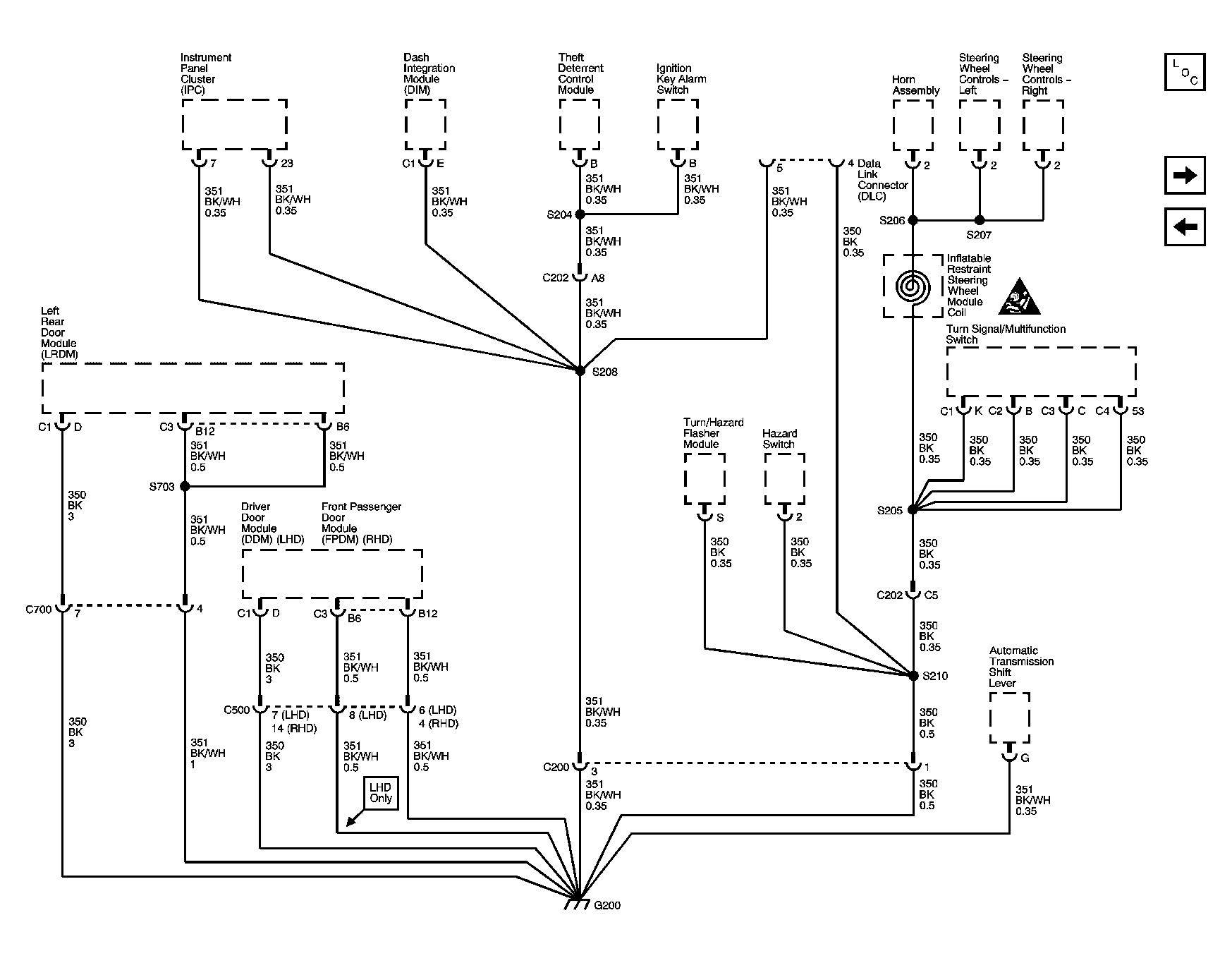

Fig 6: G200 Schematic

Courtesy of GENERAL MOTORS CORP.

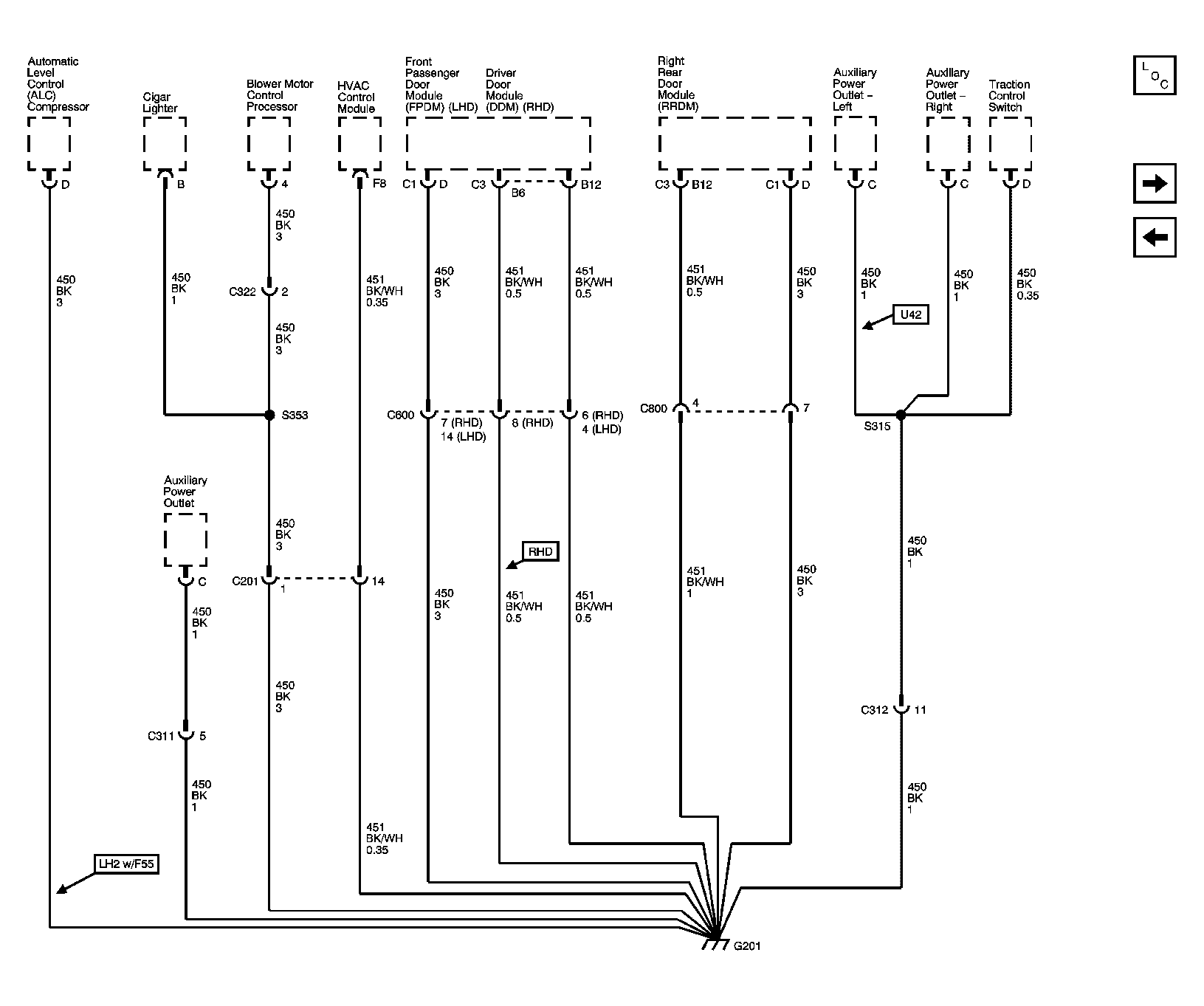

Fig 7: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

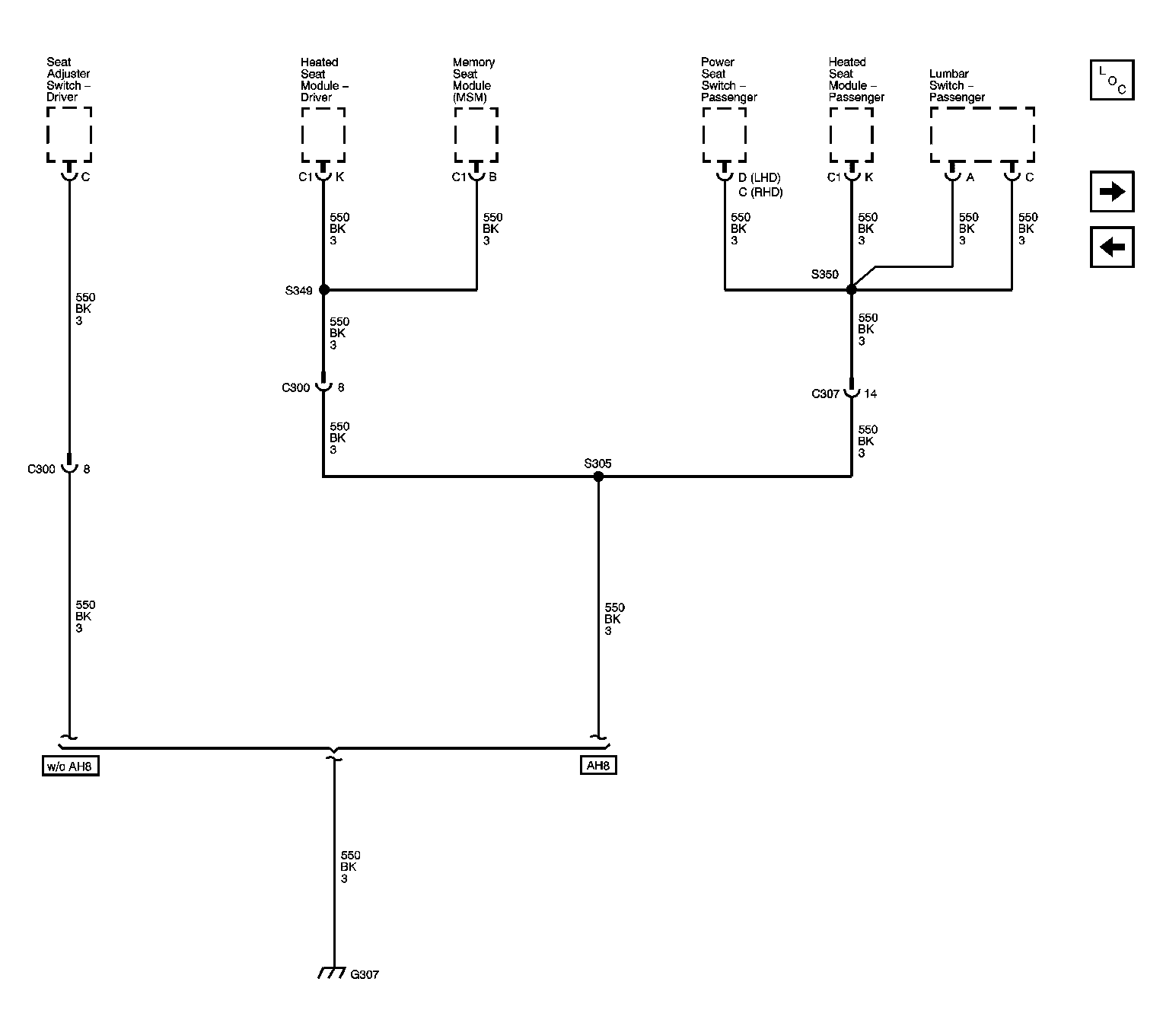

Fig 8: G307 Schematic

Courtesy of GENERAL MOTORS CORP.

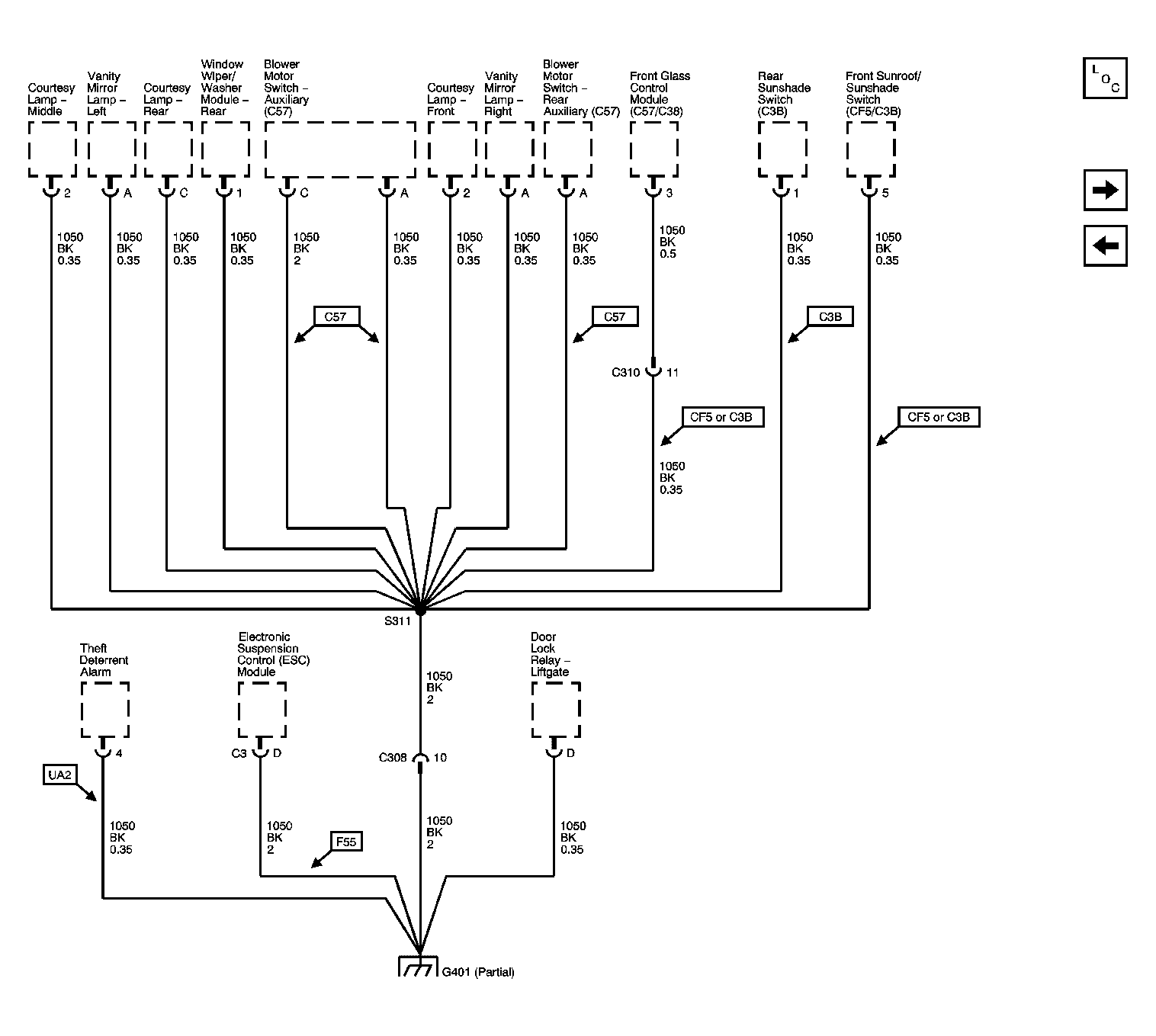

Fig 9: G401 Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

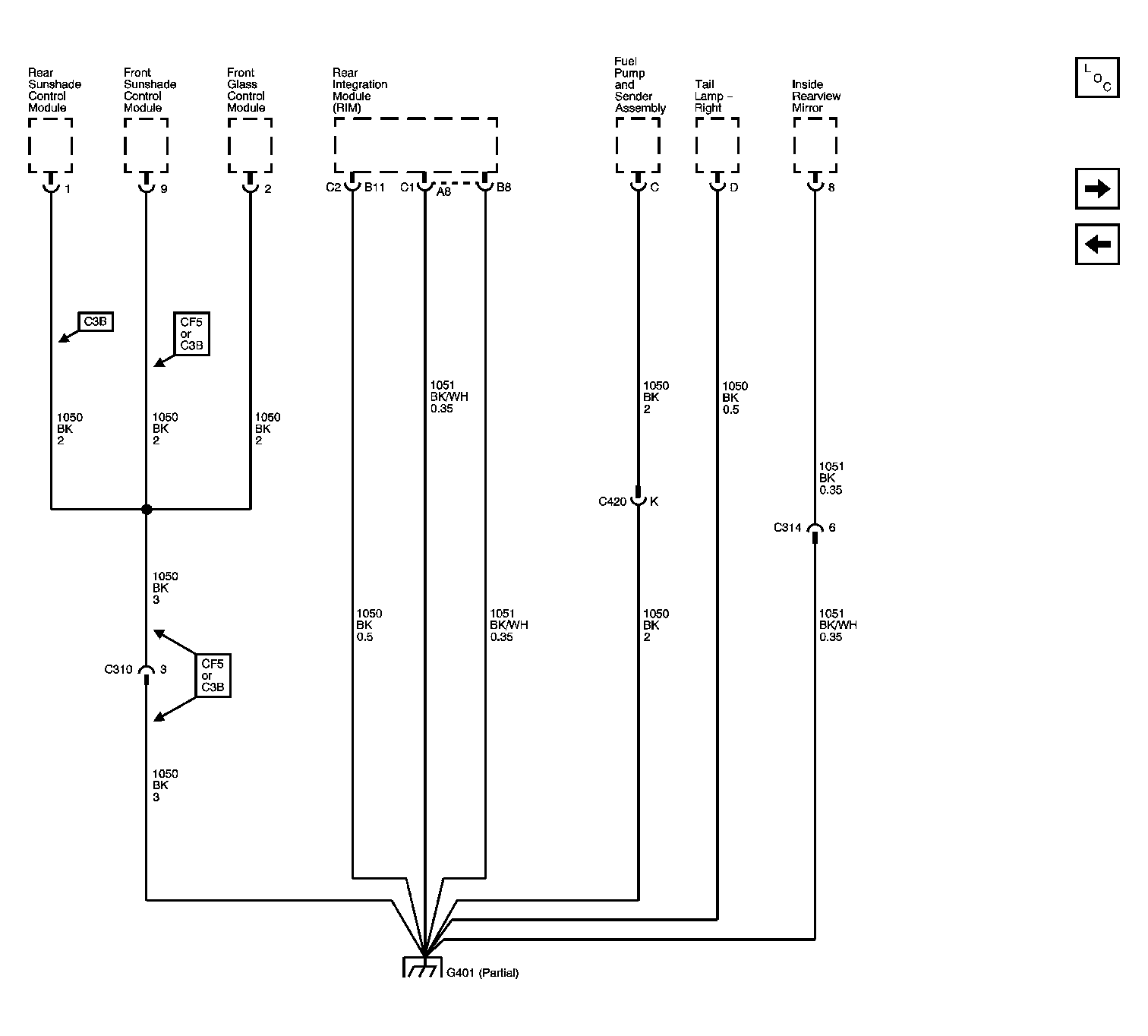

Fig 10: G401 Schematic - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

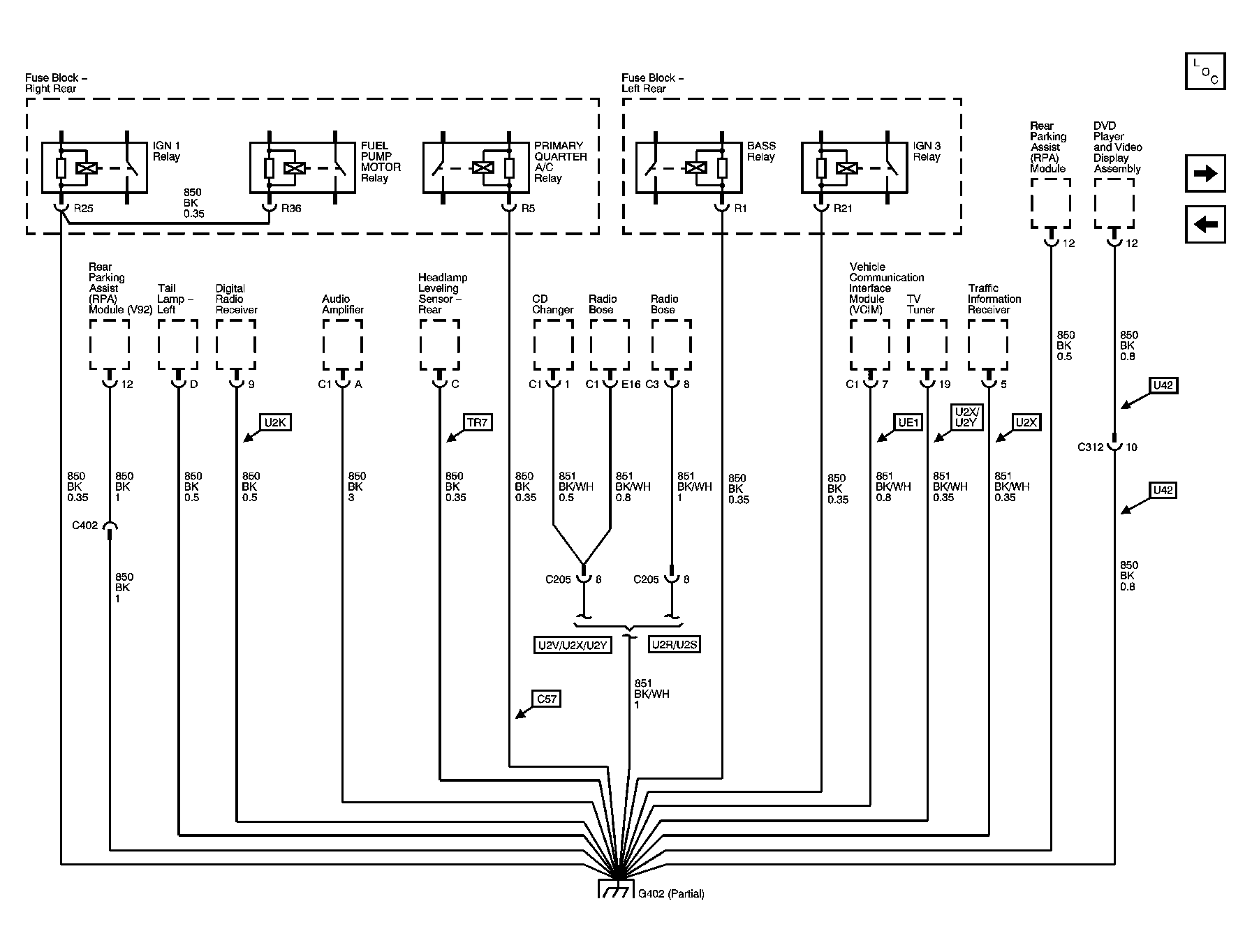

Fig 11: G402 Schematic - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

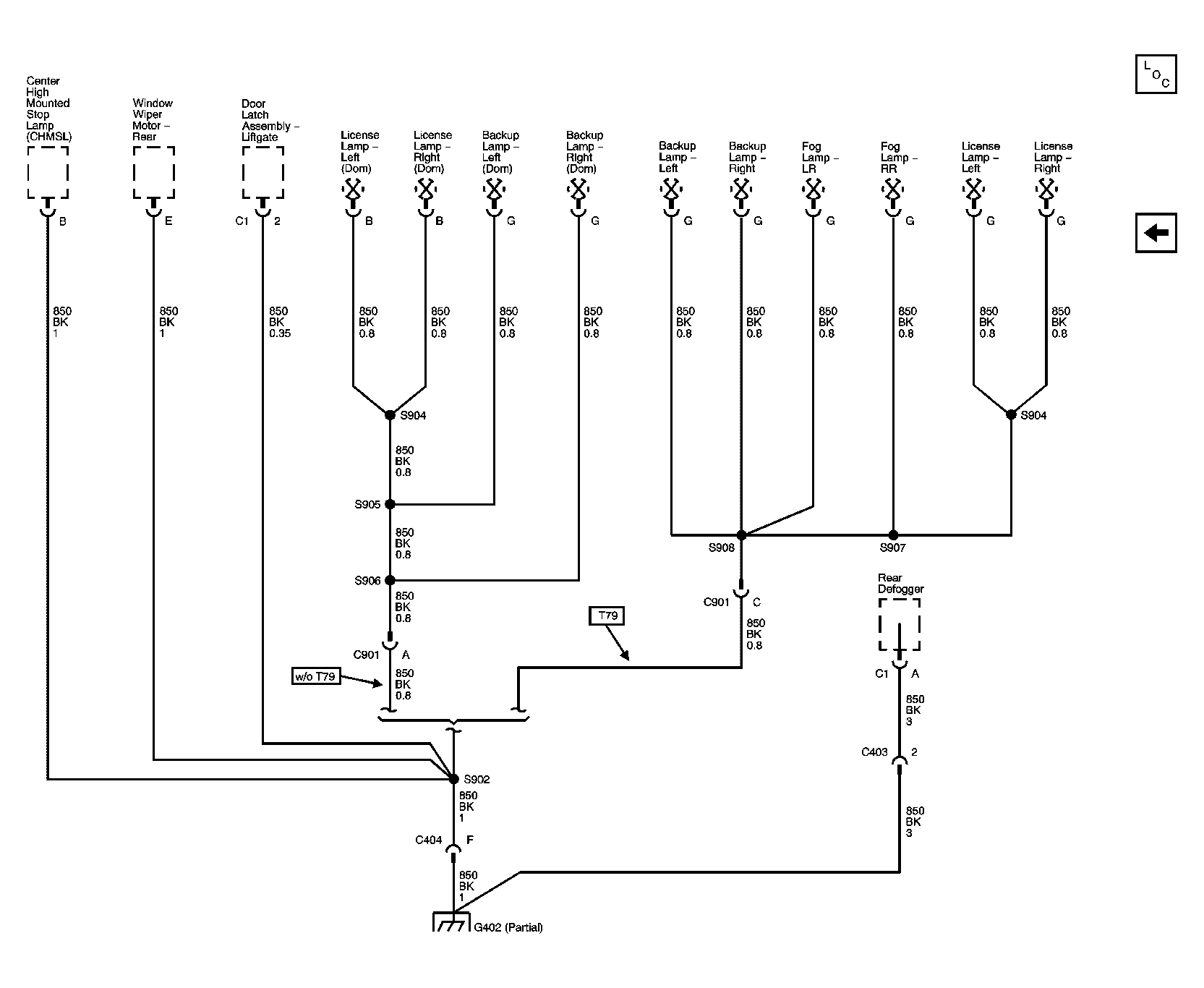

Fig 12: G402 Schematic - 2 Of 2

Courtesy of GENERAL MOTORS CORP.
