Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Connect the hood release cable (1) to the hood latch (2).

Fig 1: View Of Hood Latch & Hood Release Cable

Courtesy of GENERAL MOTORS CORP.

Position the hood latch (2) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts (1) to secure the hood latch to the vehicle.
Tighten: Tighten the bolts to 9 N.m (80 lb in).
Adjust the hood primary latch (2). Refer to Hood Latch Adjustment .

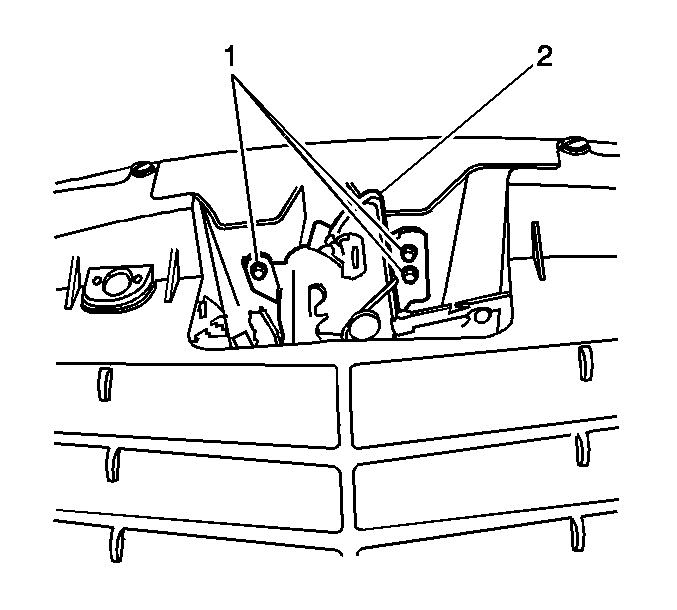

Fig 2: View Of Hood Latch

Courtesy of GENERAL MOTORS CORP.
