Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer the string to either end of the new hood release cable.
  2. Route the string and the hood release cable into the passenger compartment.
  3. Remove the string from the hood release cable.
  4. Seat the hood release cable grommet into the wheel opening.
  5. Connect the hood release cable (2) to the hood release handle (1).

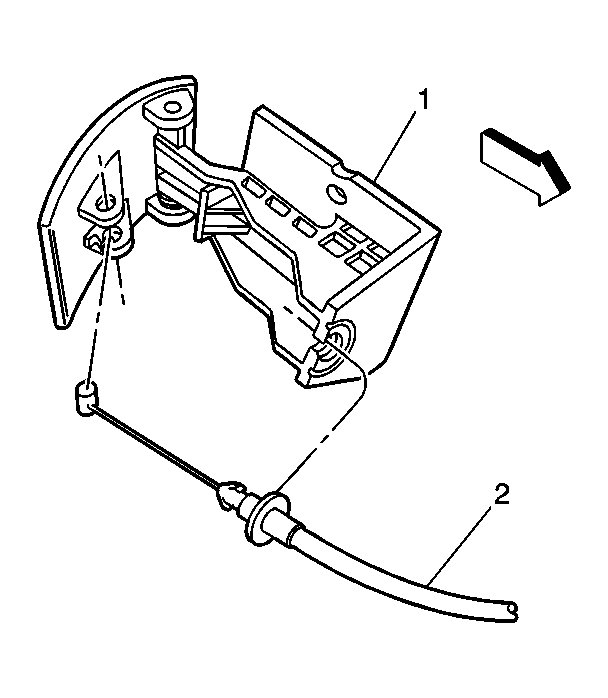

    6. Fig 1: View Of Hood Release Cable
    GM714073Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the fasteners (3) in order to secure the hood release handle (1) to the vehicle.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).

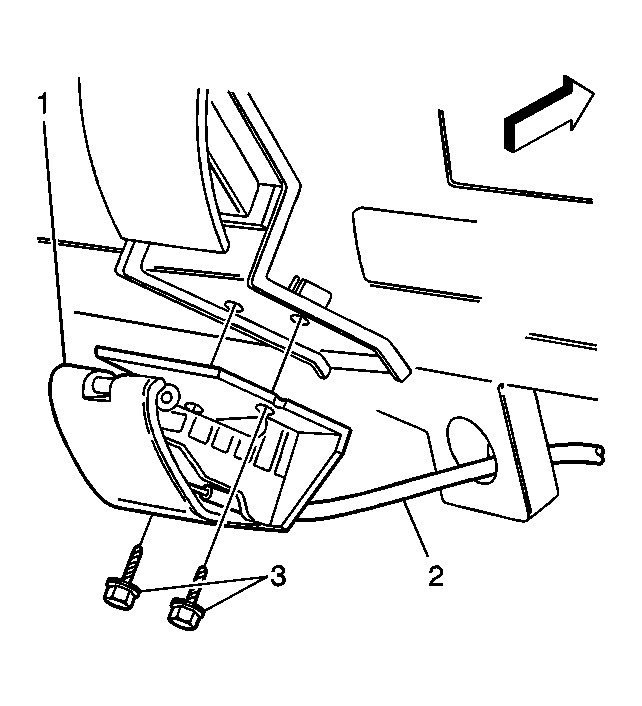

    7. Fig 2: View Of Hood Release Handle
    GM714080Courtesy of GENERAL MOTORS CORP.
  7. Pull the string and the hood release cable through the engine compartment.
  8. Remove the string from the hood release cable.
  9. Connect the hood release cable to the hood latch.

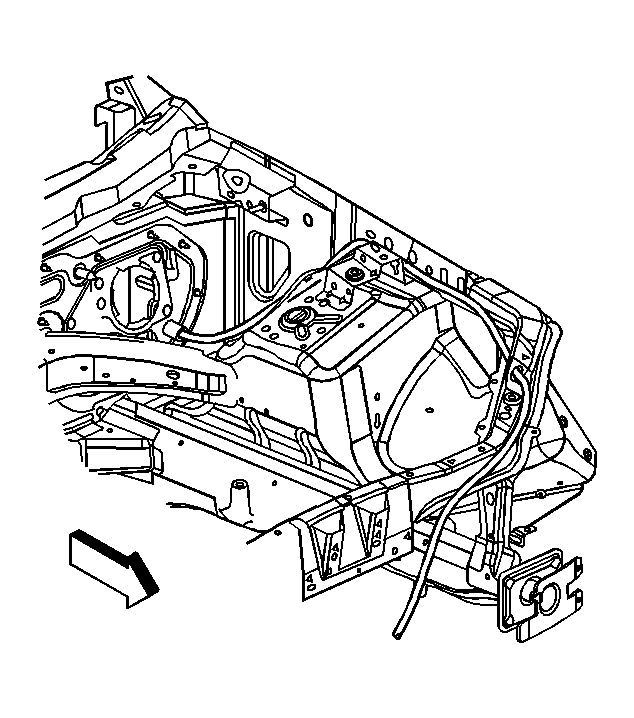

    10. Fig 3: Hood Release Cable Routing
    GM739453Courtesy of GENERAL MOTORS CORP.
  10. Install the hood latch. Refer to Hood Latch Replacement .
  11. Close the hood.
