Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hinge to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts (1) in order to secure the hinge to the motor compartment.

    Tighten:  Tighten the bolts to 24 N.m (18 lb ft).

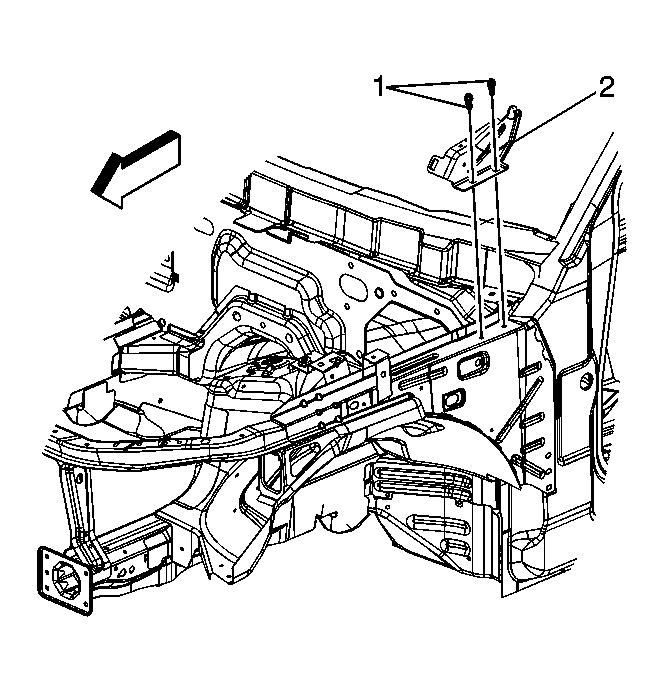

    3. Fig 1: Locating Hood Hinge
    GM1229592Courtesy of GENERAL MOTORS CORP.
  3. Install the hood. Refer to Hood Replacement .
  4. Install the fender. Refer to Fender Replacement - Front .
  5. Close the hood and inspect for fit.
  6. Adjust the hood as necessary. Refer to Hood Adjustment .
  7. Remove the tape from the panel and adjacent surfaces.
