Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fender sound insulator to the vehicle.
  2. Install the push-in fasteners in order to secure the front fender sound insulator to the vehicle.

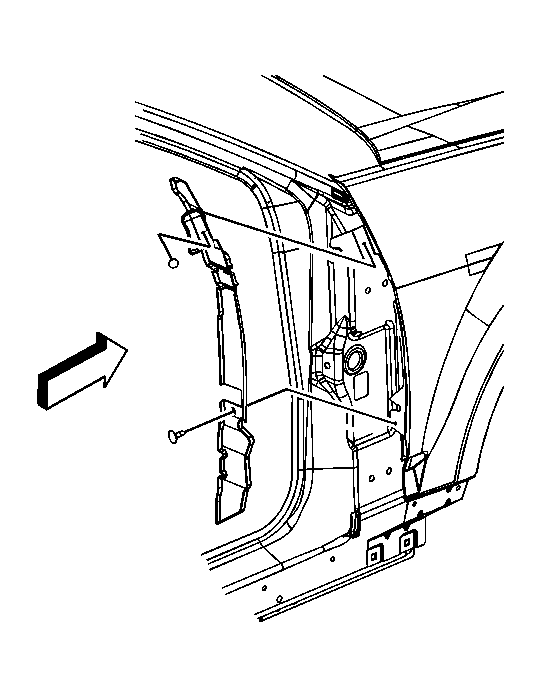

    3. Fig 1: View Of Front Fender Sound Insulator
    GM1232345Courtesy of GENERAL MOTORS CORP.
  3. Close the door.
