Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front air deflector to the vehicle.
  2. Install the push-in retainers to secure the air deflector to the engine cradle.

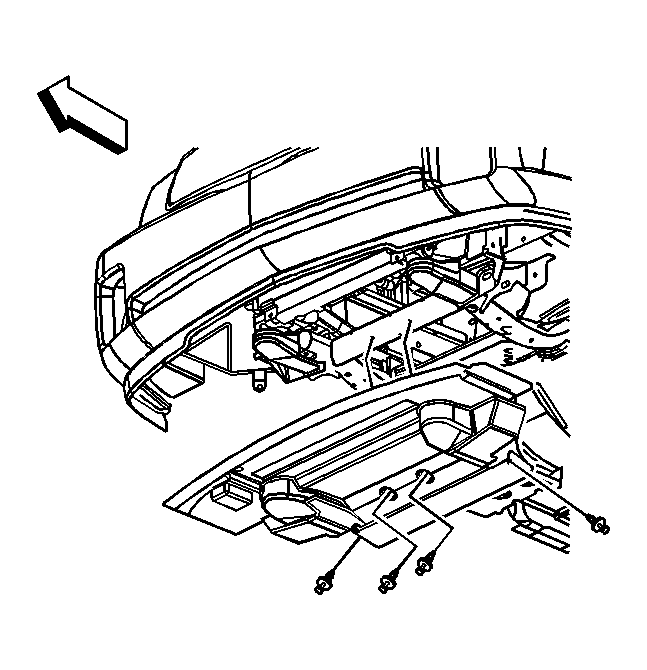

    3. Fig 1: Installing Front Air Deflector
    GM791810Courtesy of GENERAL MOTORS CORP.
  3. Install the push-in retainers to secure the front of the air deflector to the fascia.

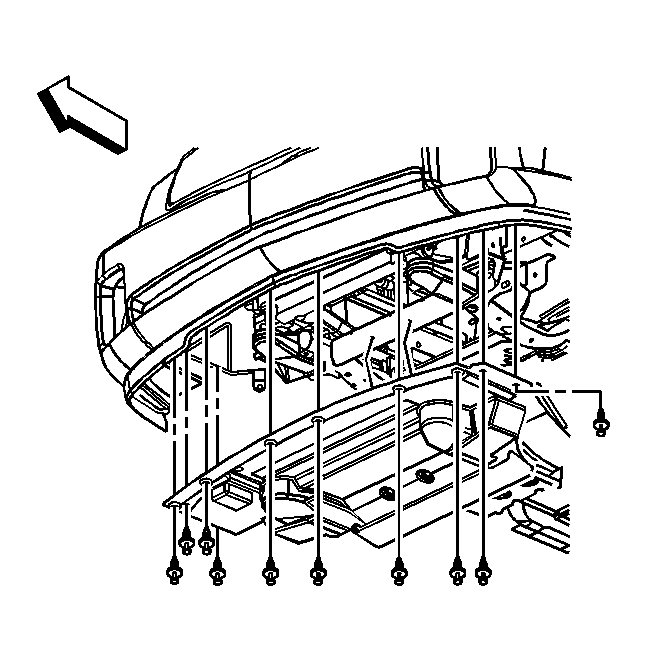

    4. Fig 2: Installing Front Air Deflector Push-In Retainers
    GM791811Courtesy of GENERAL MOTORS CORP.
  4. Lower the vehicle.
