Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the liftgate assist rod onto the upper liftgate assist rod ball stud.
  2. Press the liftgate assist rod onto the lower assist rod ball stud.
  3. Ensure that both clips are fully seated on the liftgate assist rod.

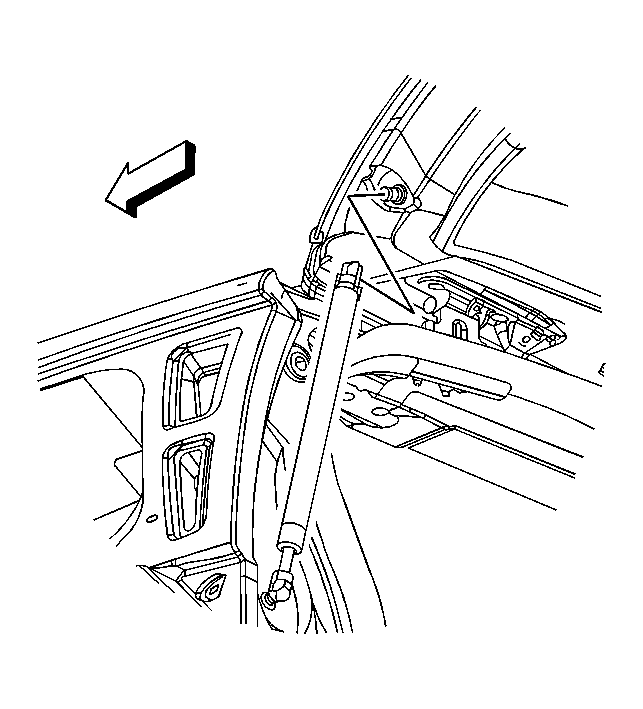

    4. Fig 1: View Of Liftgate Assist Rod
    GM896006Courtesy of GENERAL MOTORS CORP.
  4. Install the tail lamp. Refer to Tail Lamp Replacement in Lighting Systems.
  5. Close the liftgate.
