Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, align the marks on the liftgate with the liftgate hinges.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. With an assistant, install the liftgate hinge bolts.

    Tighten:  Tighten the hinge bolts to 25 N.m (18 lb ft).

  3. Install the liftgate struts. Refer to Strut Replacement - Liftgate .

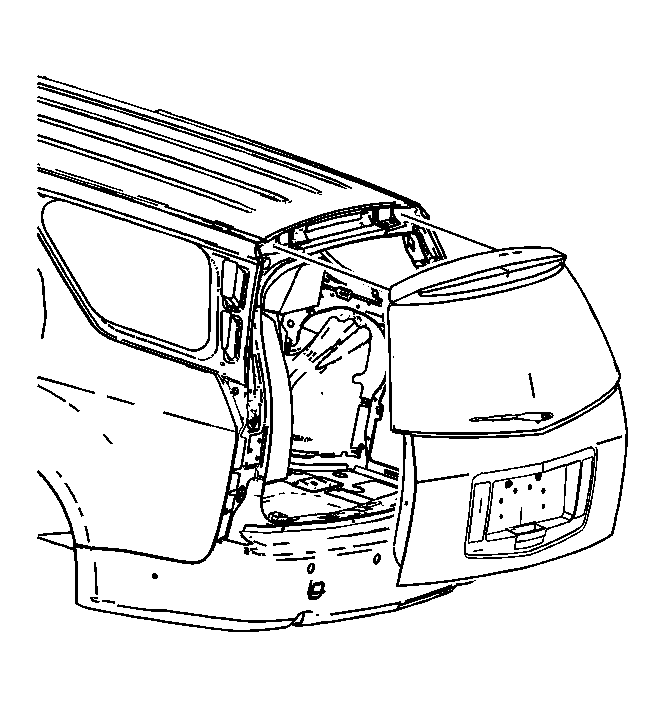

    4. Fig 1: View Of Liftgate
    GM1204248Courtesy of GENERAL MOTORS CORP.
  4. Install the washer hose to the wiper motor assembly.
  5. Install the wiper motor. Refer to Wiper Arm Replacement - Rear in Wipers/Washer Systems.
  6. Install the liftgate wiring harness. Refer to Wiring Harness Replacement - Liftgate .
  7. Install the liftgate applique. Refer to Liftgate Applique Replacement .
  8. Install the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate .
  9. Install the rear wiper arm. Refer to Wiper Arm Replacement - Rear in Wipers/Washer Systems.
