Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

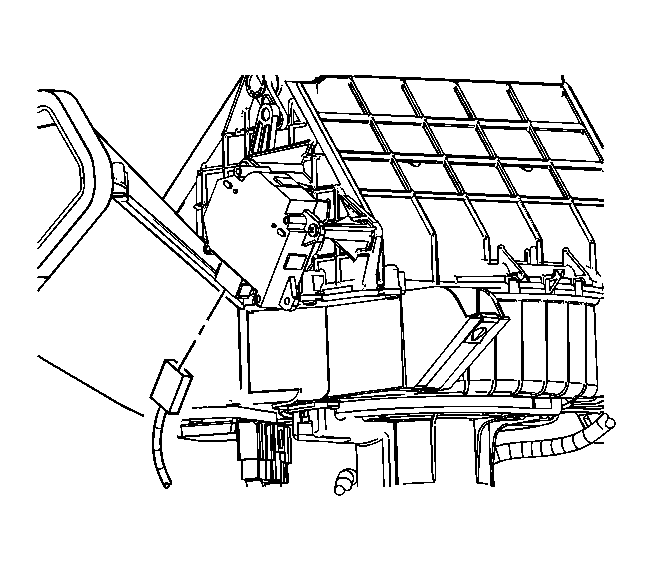

    Fig 1: View Of Recirculation Actuator Electrical Connector
    GM1381157Courtesy of GENERAL MOTORS CORP.
  1. Remove the air inlet assembly. Refer to Air Inlet Assembly Replacement in Heating, Ventilation and Air Conditioning.
  2. Disconnect the electrical connector from the recirculation actuator.

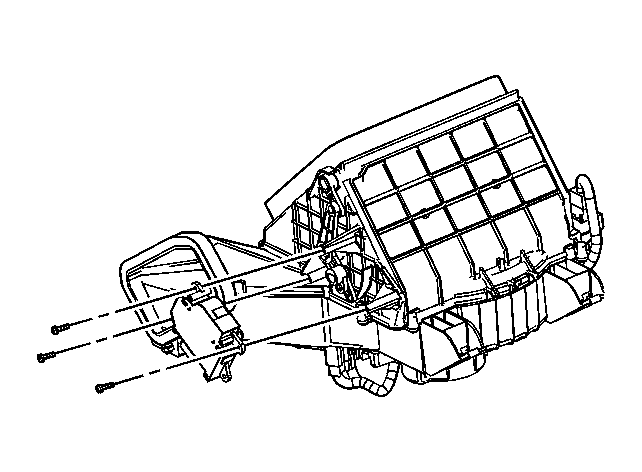

    3. Fig 2: View Of Recirculation Actuator
    GM1381158Courtesy of GENERAL MOTORS CORP.
  3. Remove the recirculation actuator screws.
  4. Remove the recirculation actuator.
