Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

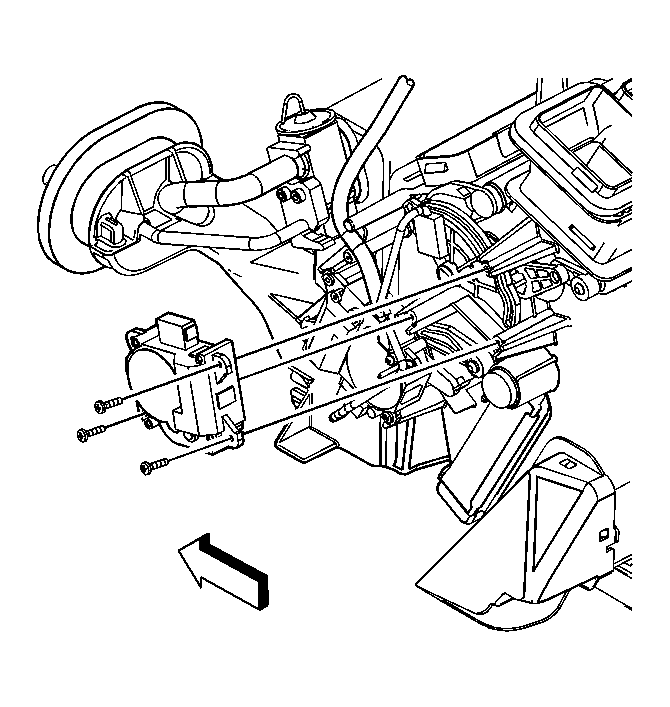

    Fig 1: View Of Mode Actuator
    GM1378965Courtesy of GENERAL MOTORS CORP.
  1. If replacing the mode actuator, transfer the lever from the old actuator to the new actuator.
  2. Install the mode actuator.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the mode actuator screws.

    Tighten:  Tighten the screws to 1 N.m (9 lb in).

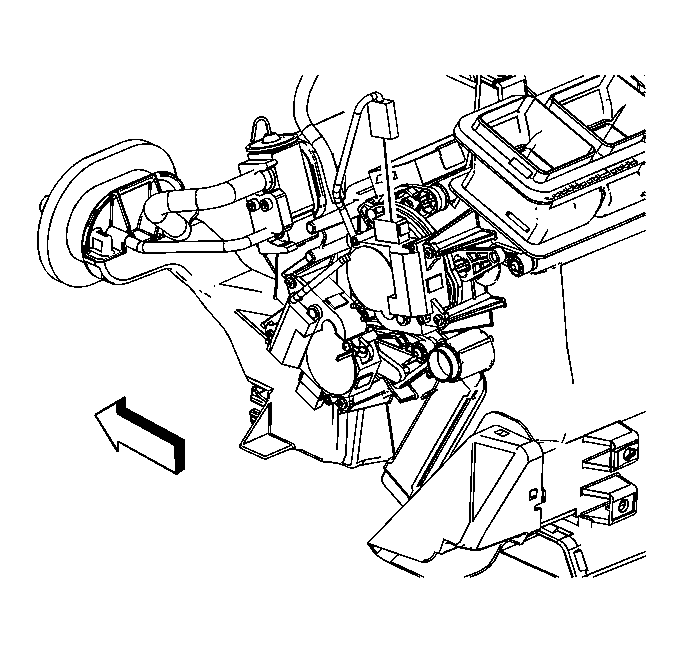

    4. Fig 2: View Of Mode Actuator Electrical Connector
    GM1378961Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the actuator.
  5. Install the I/P carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console.
