Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inside air temperature sensor (2).
  2. Connect the aspirator hose (3) to the inside temperature sensor (2).
    3. Fig 1: View Of Air Temperature Sensor & Aspirator Hose
    GM760802Courtesy of GENERAL MOTORS CORP.
  3. Connect the inside air temperature sensor electrical connector (1).
    4. IMPORTANT: Assure that the foam seal tape is in place and covering the openings on the sides of the grille assembly (2).
  4. Install the inside air temperature sensor (2) into the I/P.

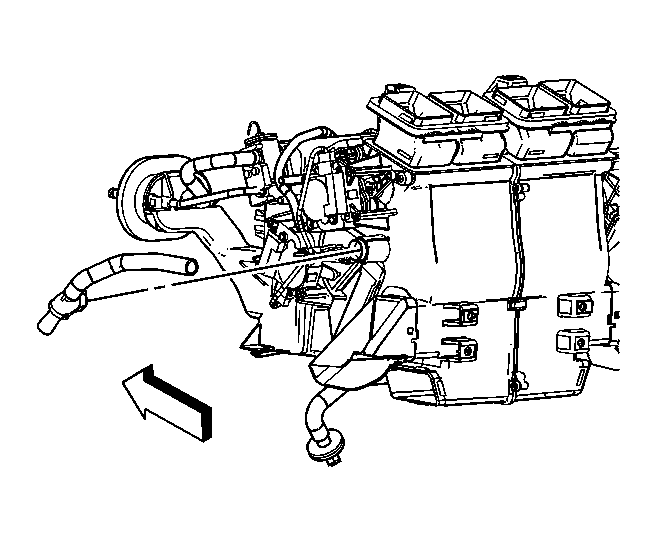

    5. Fig 2: View Of Aspirator Hose
    GM1369936Courtesy of GENERAL MOTORS CORP.
  5. Connect the aspirator hose to the HVAC module.
  6. Install the knee bolster. Refer to Knee Bolster Replacement in Instrument Panel, Gages and Console.
