Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the blower motor control processor.

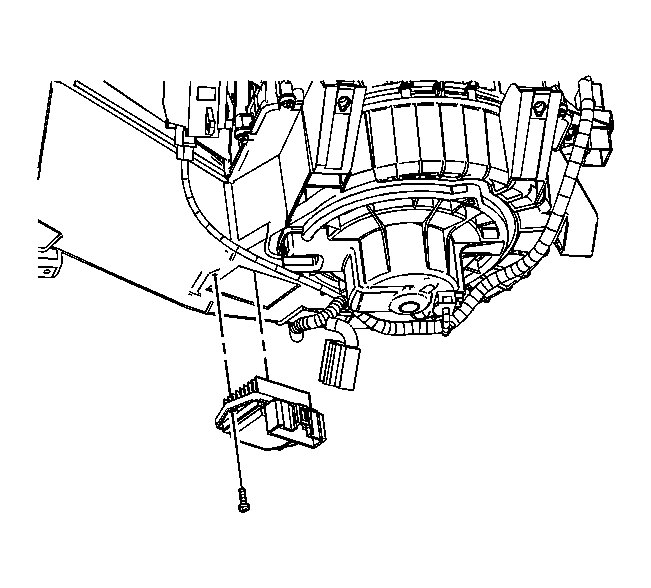

Fig 1: View Of Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the blower motor control processor retaining screw.
Tighten: Tighten the screw to 1 N.m (9 lb in).

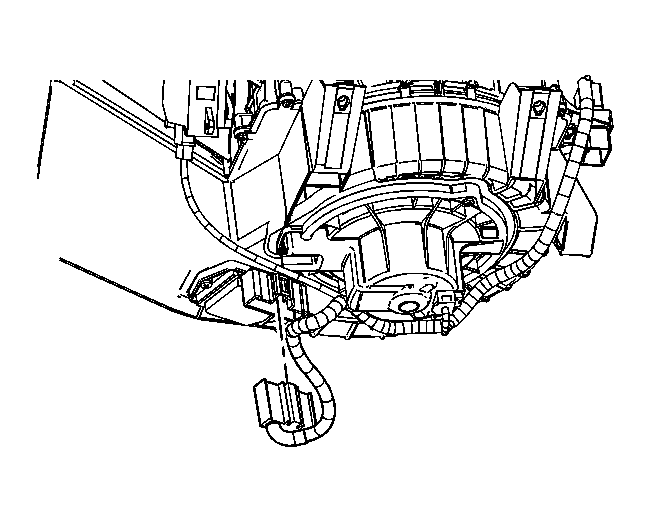

Fig 2: View Of Blower Motor Control Processor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector to the blower motor control processor.
Install the right sound insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages, and Console.
