Navigation System Schematics

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

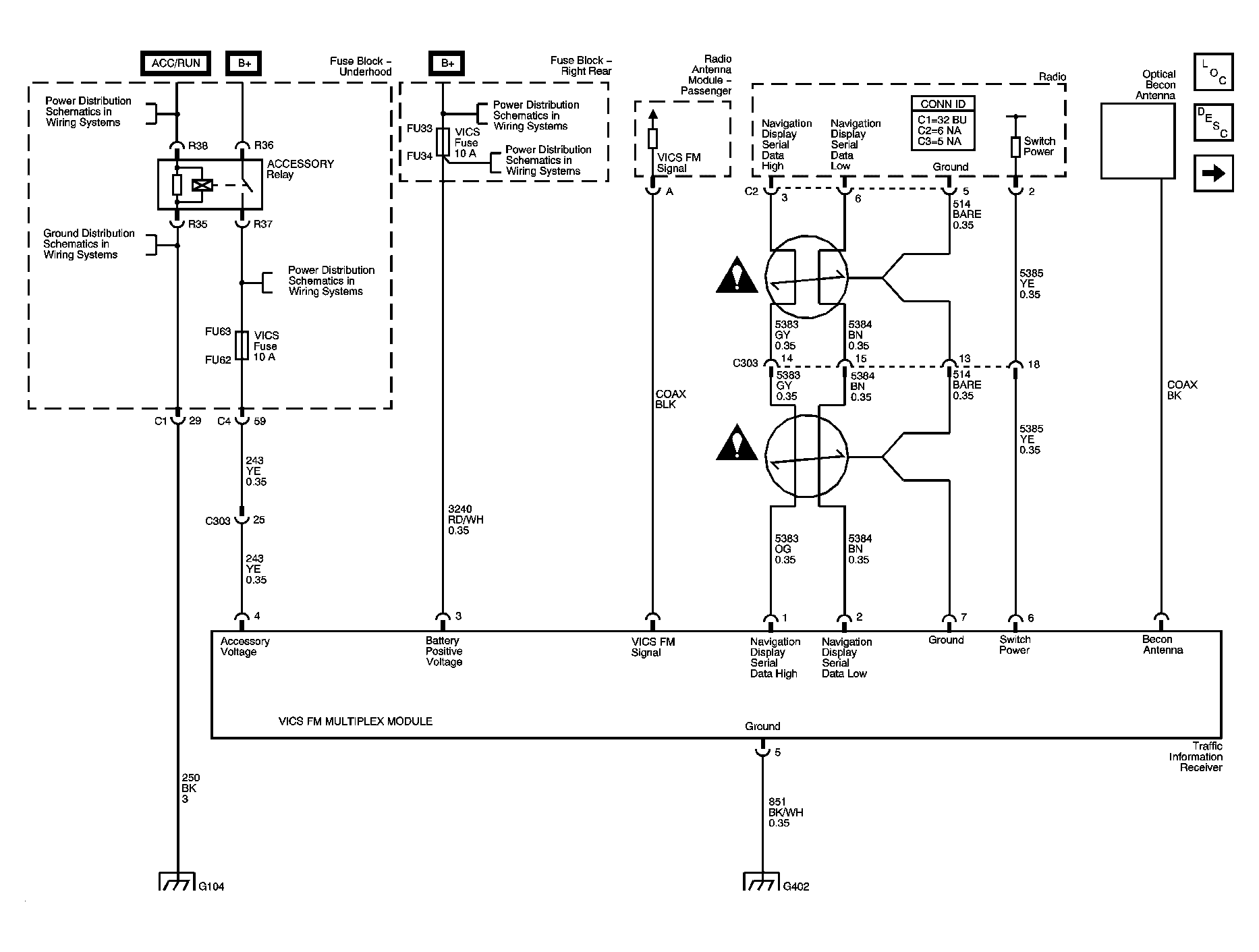

Fig 1: Traffic Information Receiver (U2X)
GM1242233Courtesy of GENERAL MOTORS CORP.

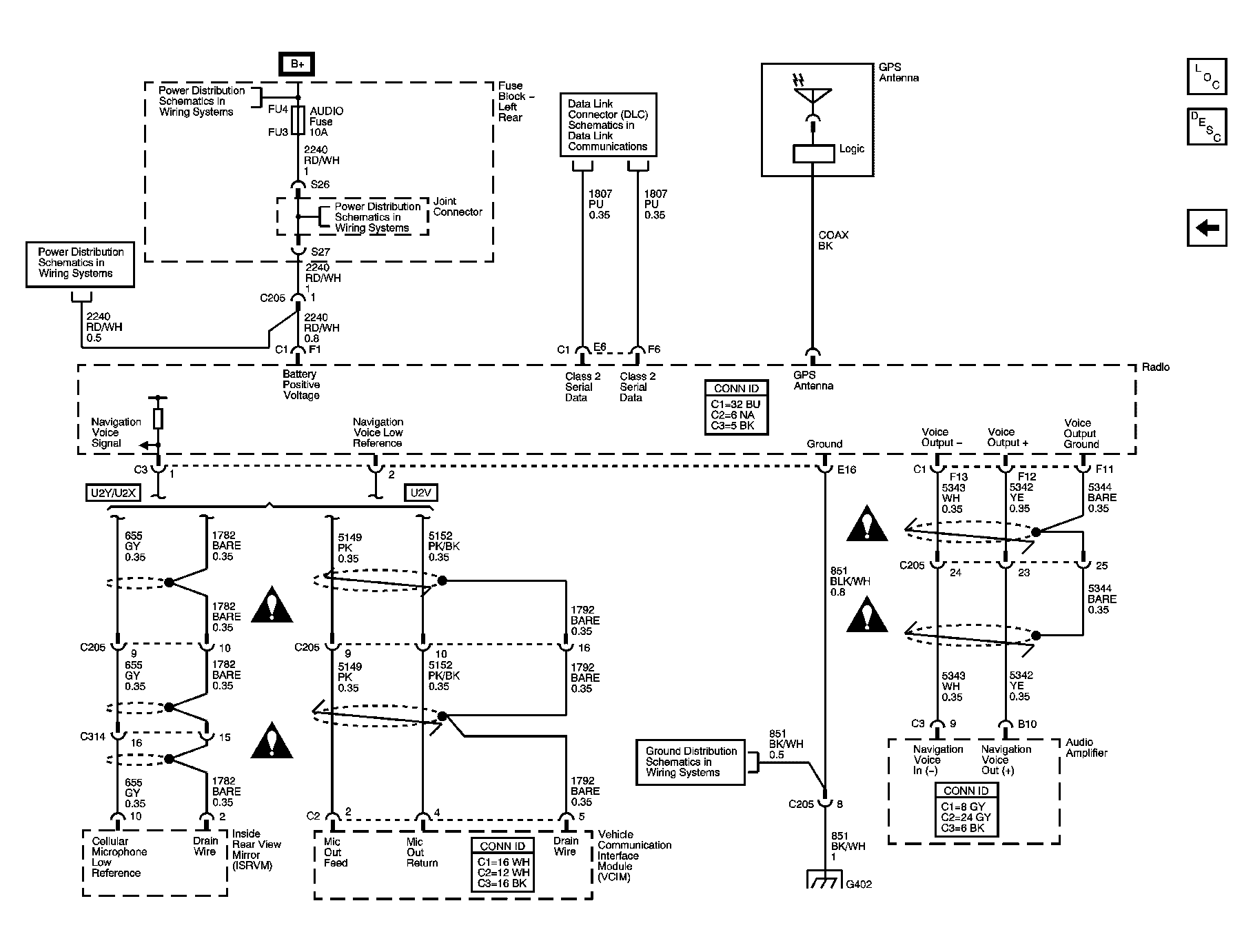

Fig 2: Navigation Controls (U2V/U2X/U2Y)
GM1242237Courtesy of GENERAL MOTORS CORP.
