Steering Wheel Controls Schematics

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

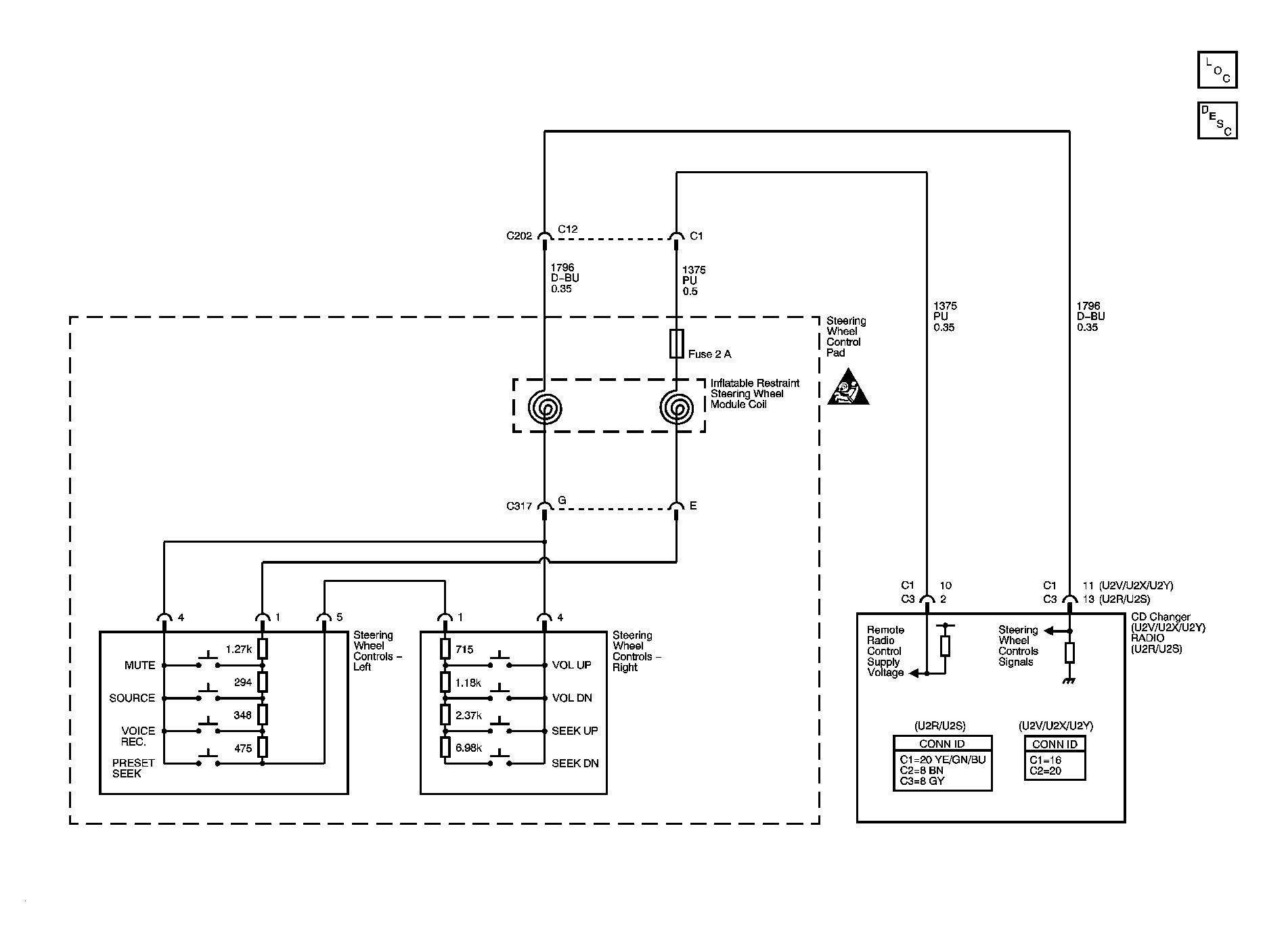

Fig 1: Steering Wheel Controls Schematics
GM1260619Courtesy of GENERAL MOTORS CORP.
