Radio/Audio System Schematics

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

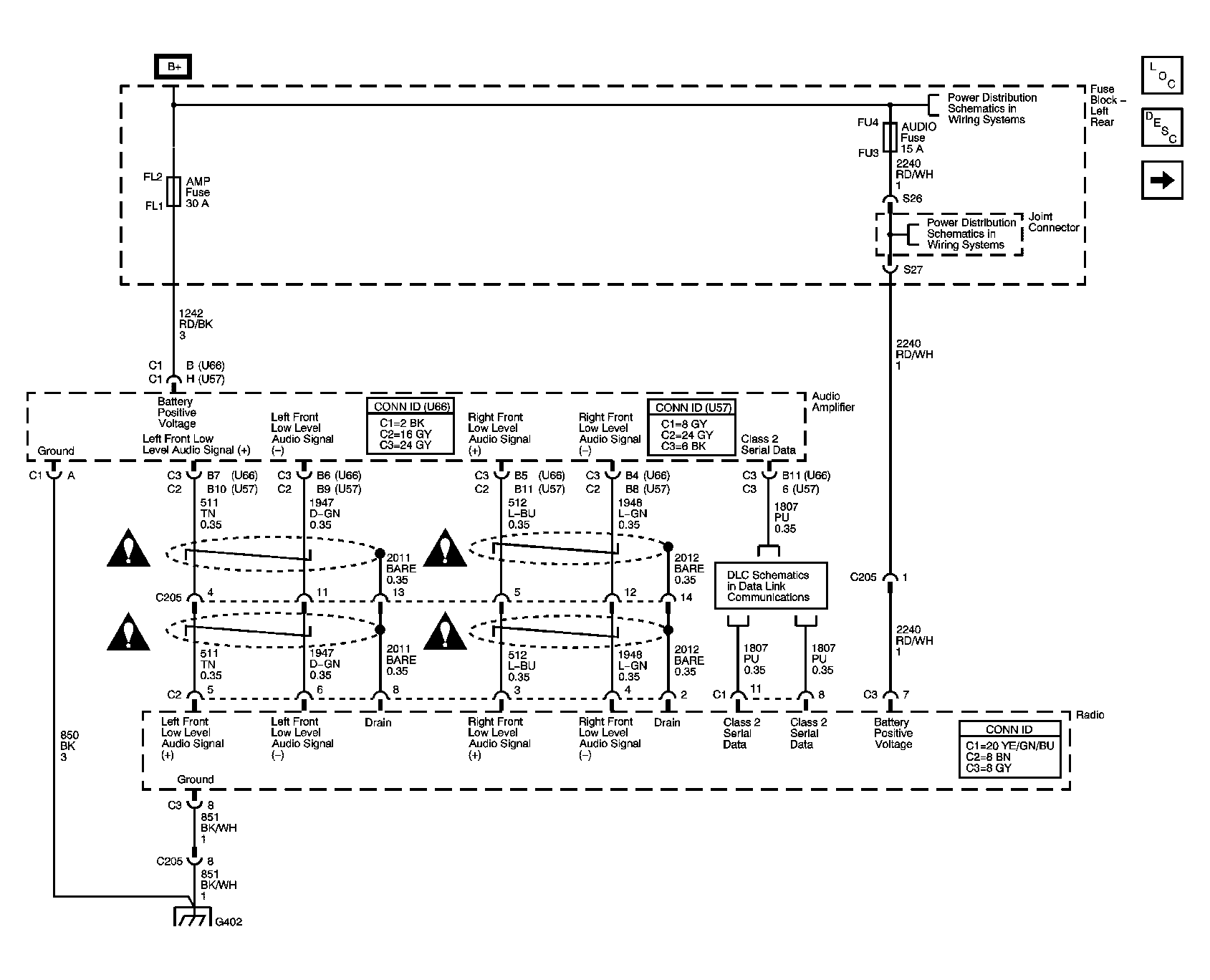

Fig 1: Radio and Audio Amplifier (U2R/U2S)

Courtesy of GENERAL MOTORS CORP.

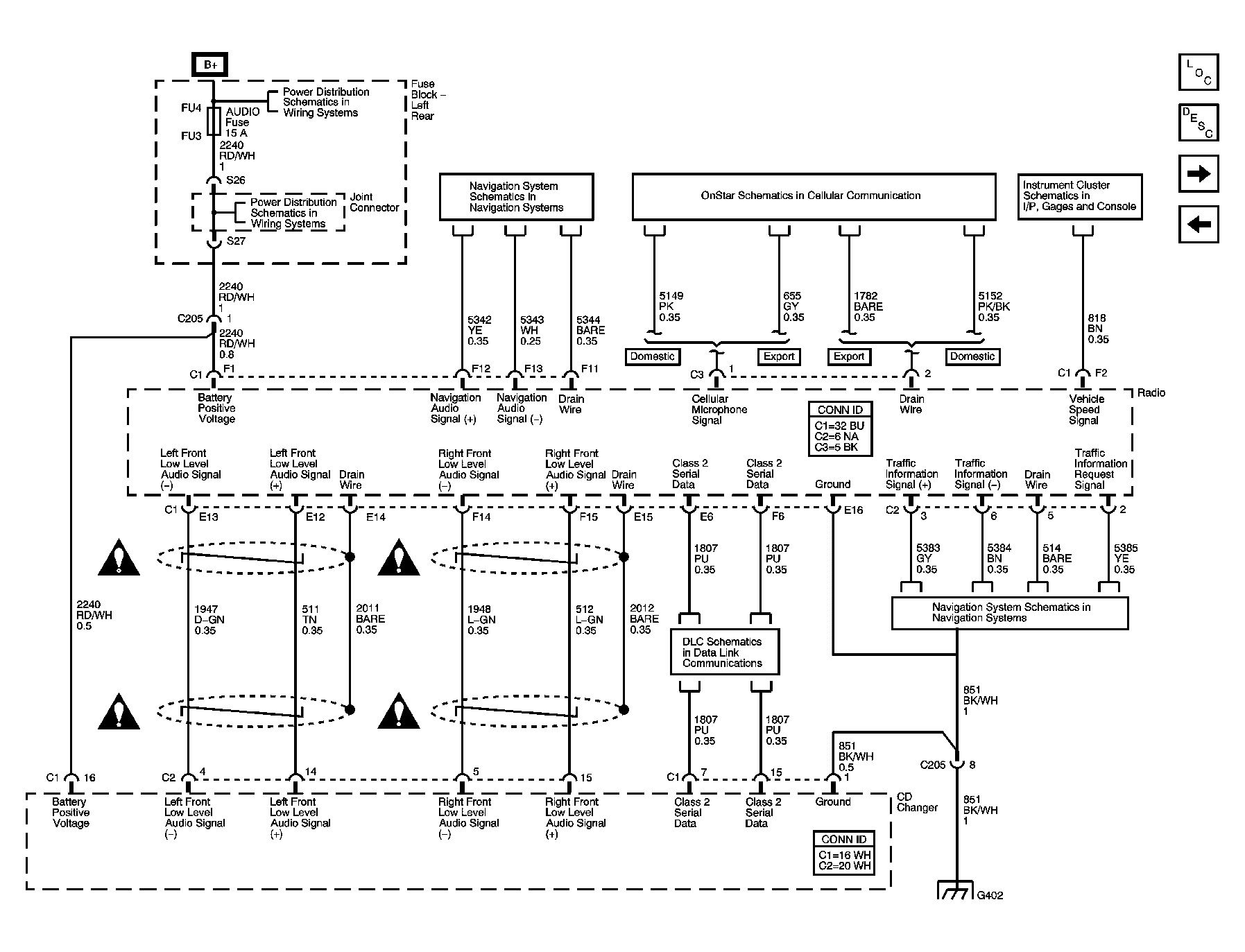

Fig 2: Radio and CD Changer (U2V/U2X/U2Y)

Courtesy of GENERAL MOTORS CORP.

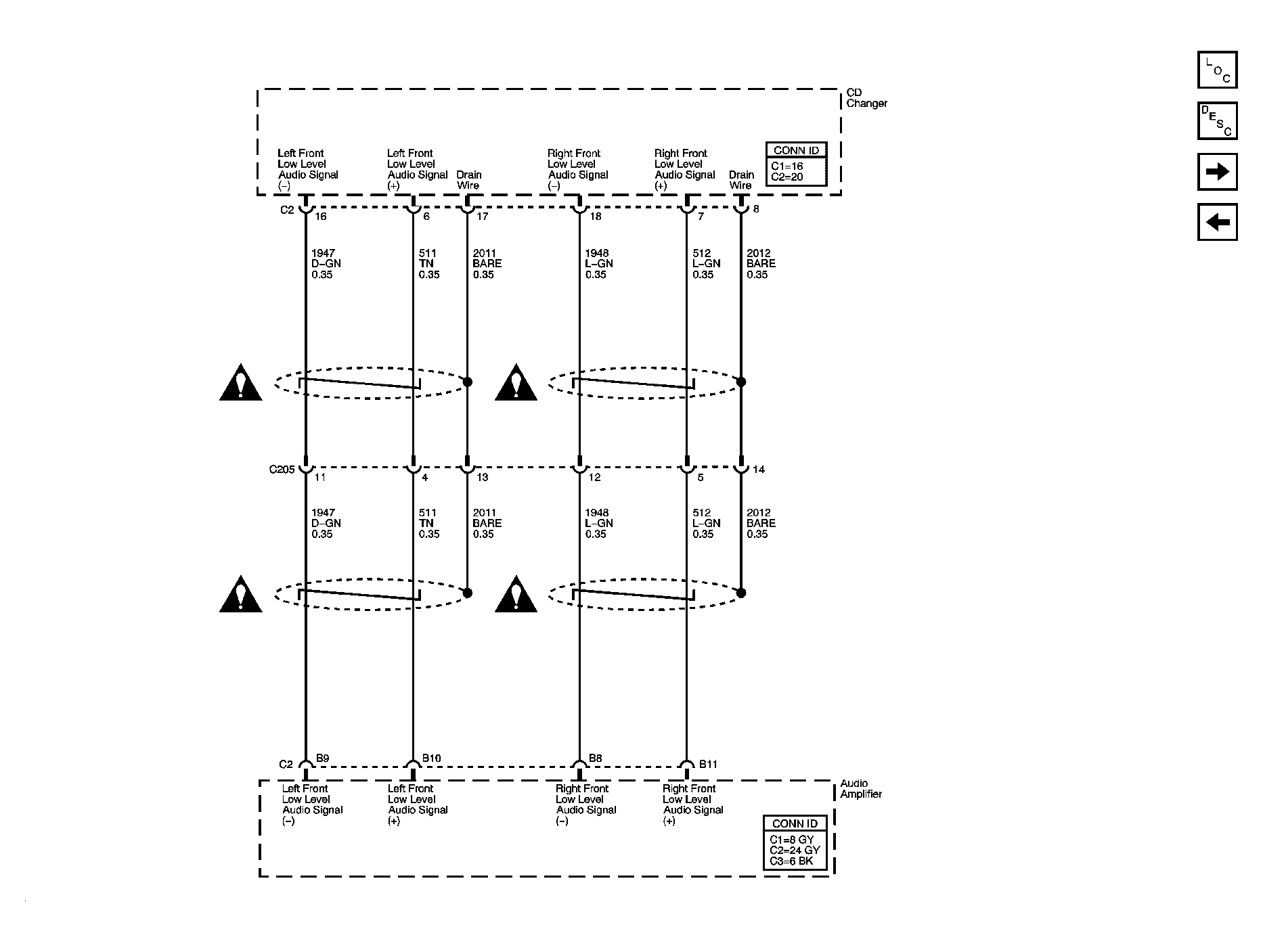

Fig 3: CD Player To Audio Amplifier (U2V/U2X/U2Y)

Courtesy of GENERAL MOTORS CORP.

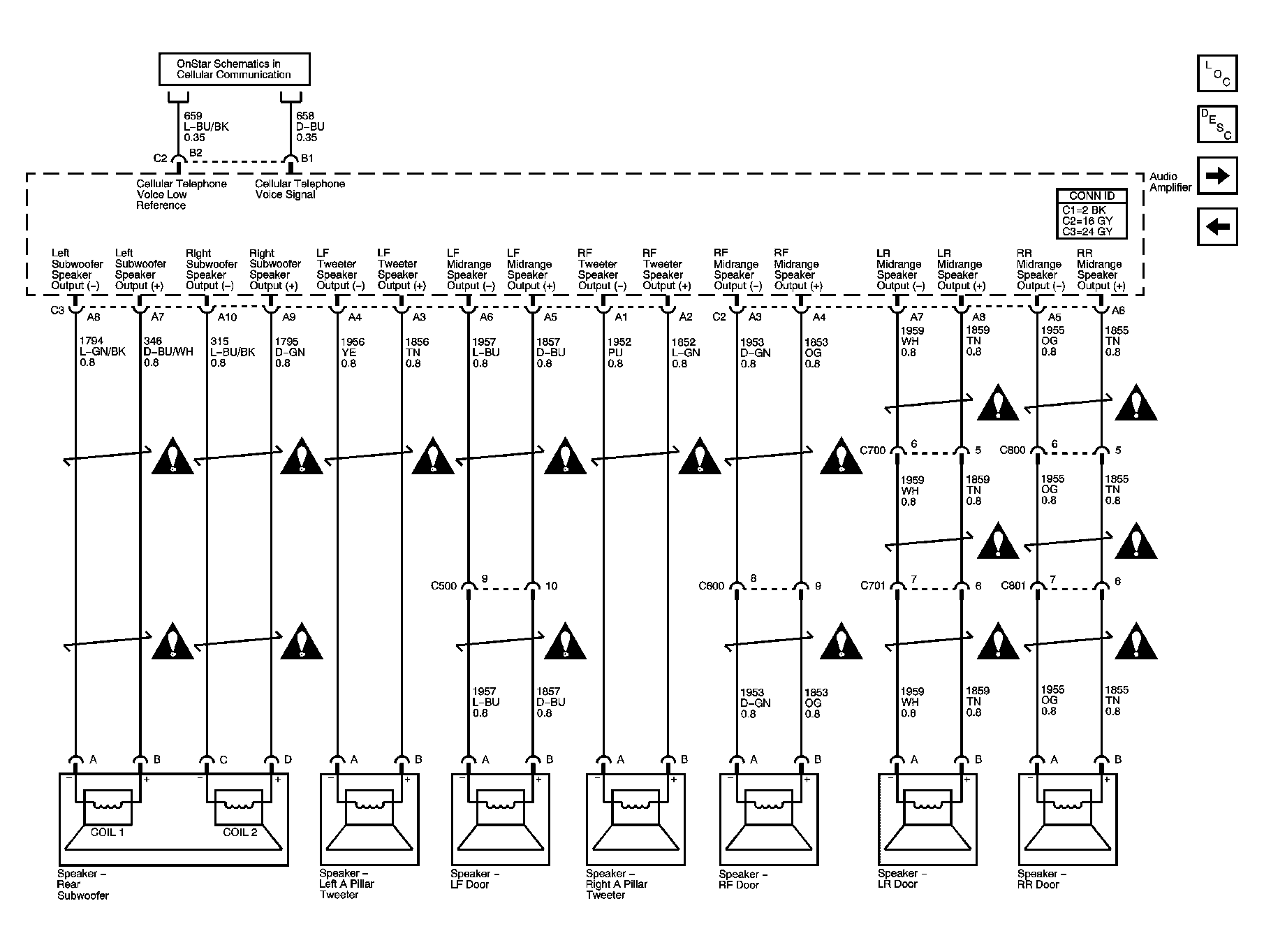

Fig 4: Speakers (U66)

Courtesy of GENERAL MOTORS CORP.

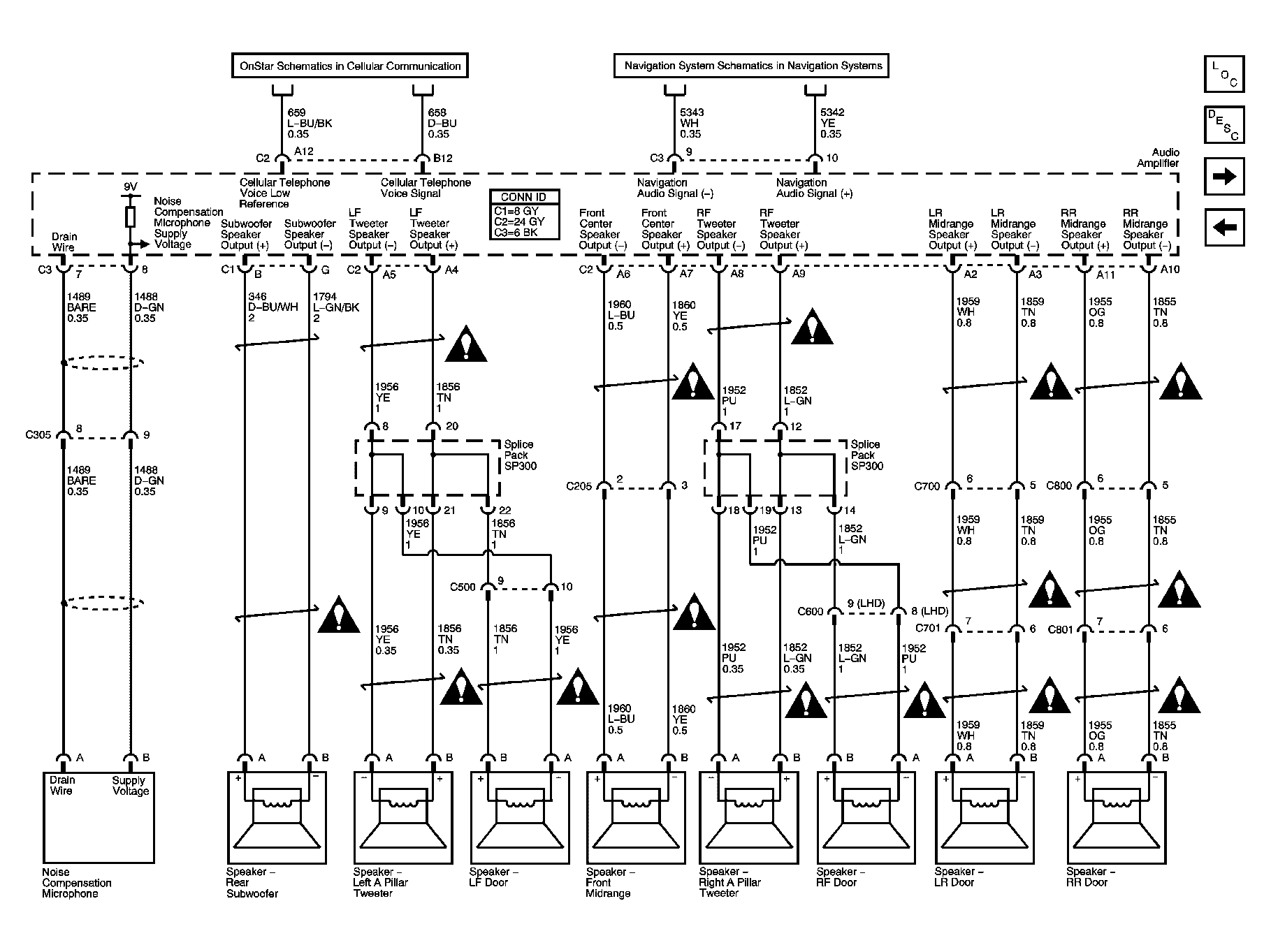

Fig 5: Speakers (V57)

Courtesy of GENERAL MOTORS CORP.

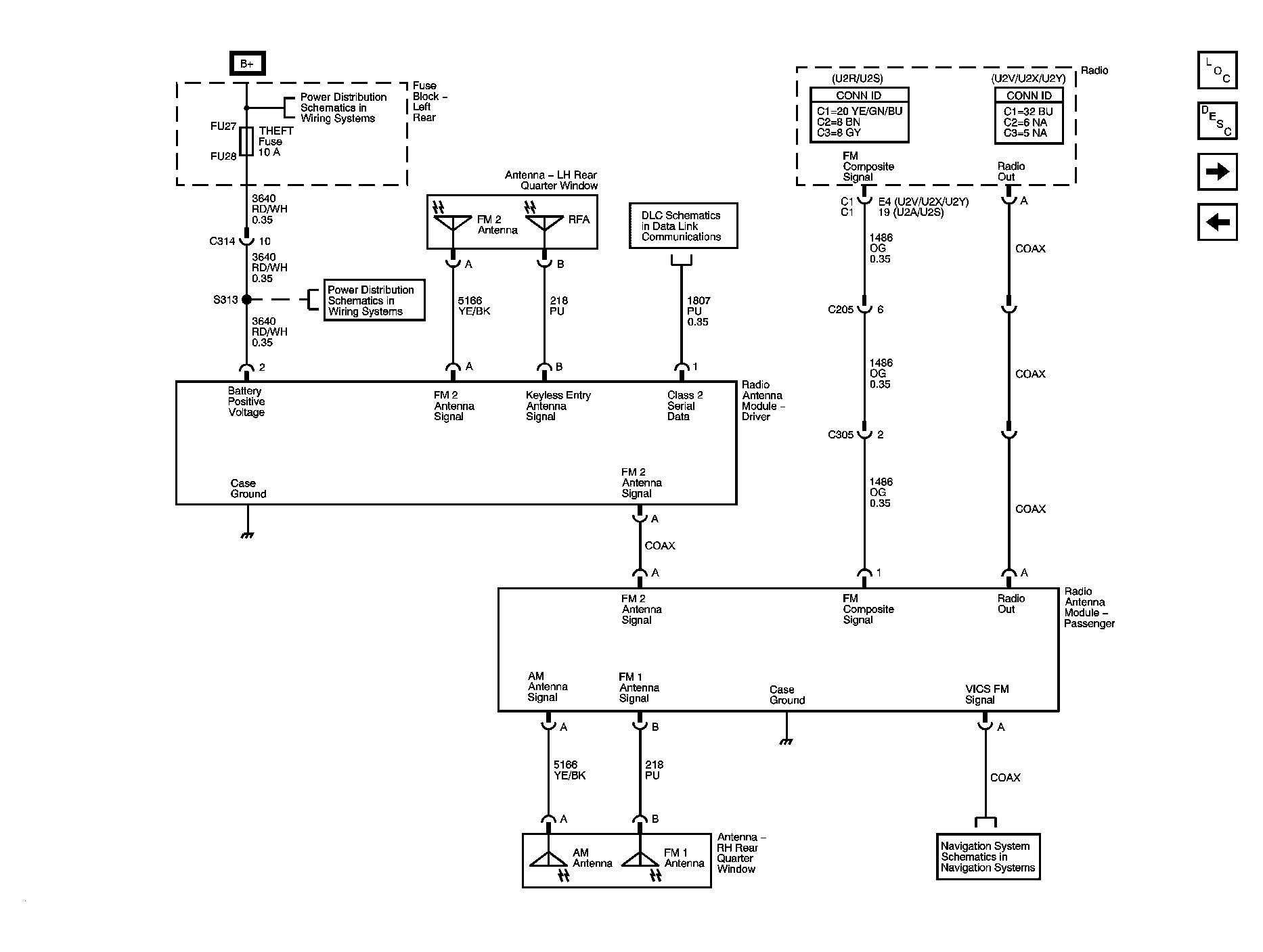

Fig 6: Radio Antenna

Courtesy of GENERAL MOTORS CORP.

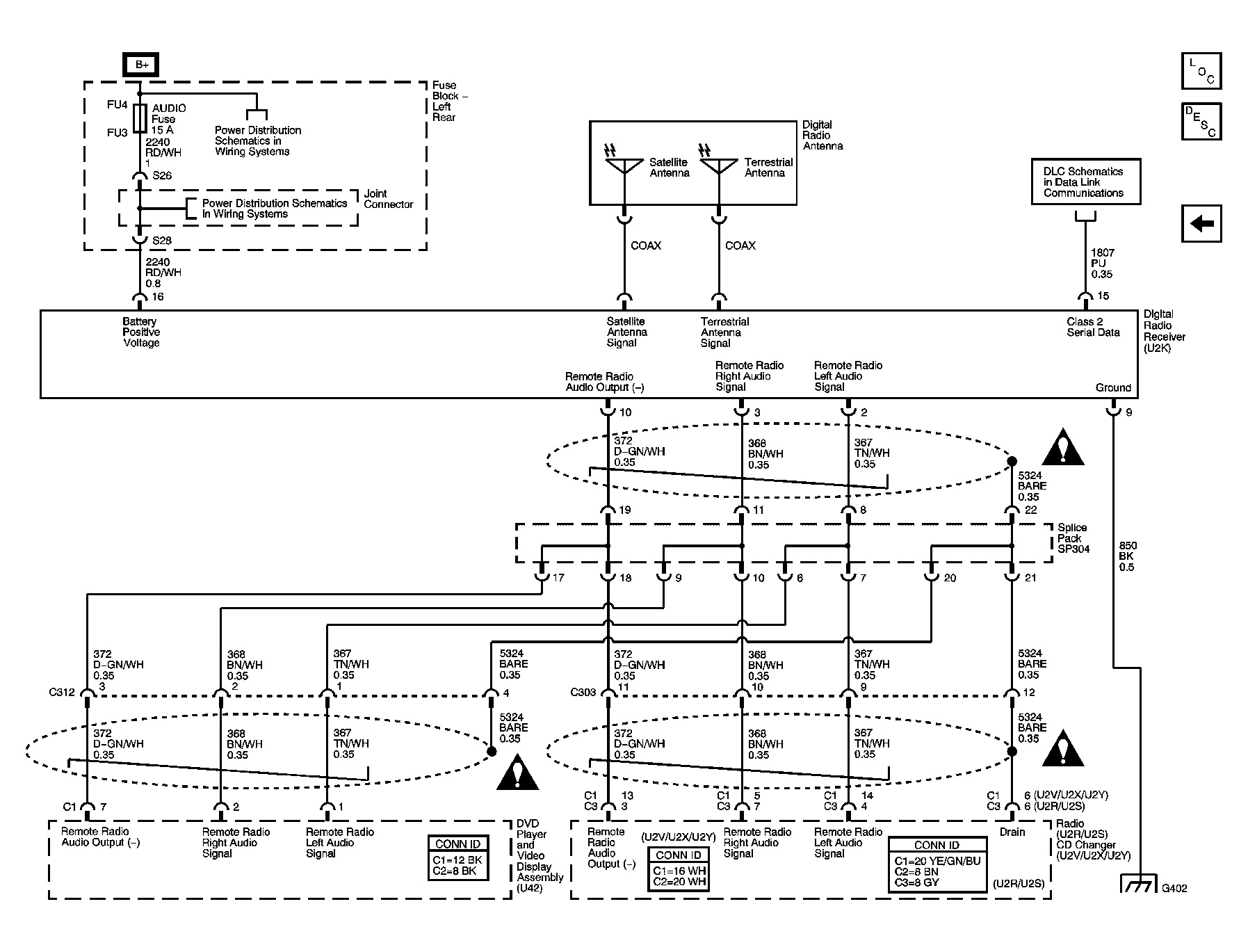

Fig 7: Digital Radio (U2K)

Courtesy of GENERAL MOTORS CORP.
