Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Locate the speaker onto the studs (1) on the vehicle floor.
Connect the electrical connector.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fasteners (2) securing the speaker.
Tighten: Tighten the fasteners to 9 N.m (80 lb in).

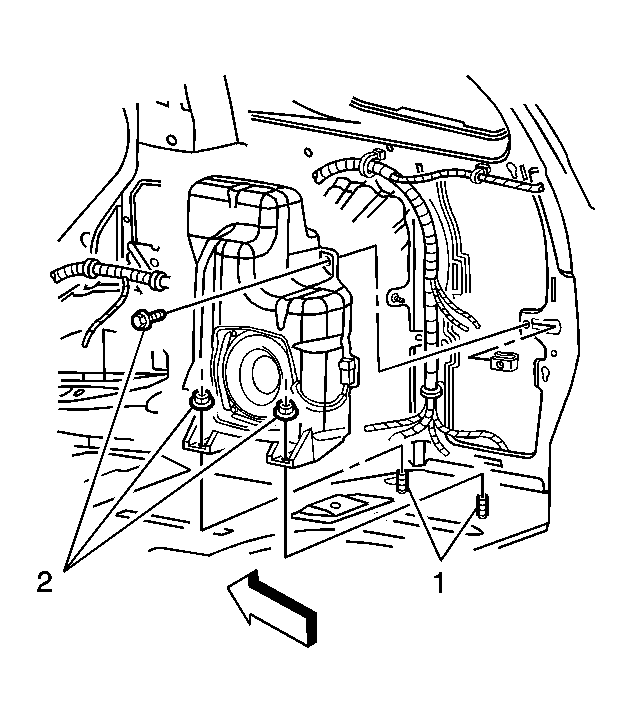

Fig 1: View Of Rear Speaker

Courtesy of GENERAL MOTORS CORP.

Install the body side trim panel. Refer to Trim Panel Replacement - Body Side Rear in Interior Trim.
