Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (2).
Install the speaker (1) to the I/P retainer.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the 4 fasteners securing the speaker.
Tighten: Tighten the fasteners to 2 N.m (18 lb in).

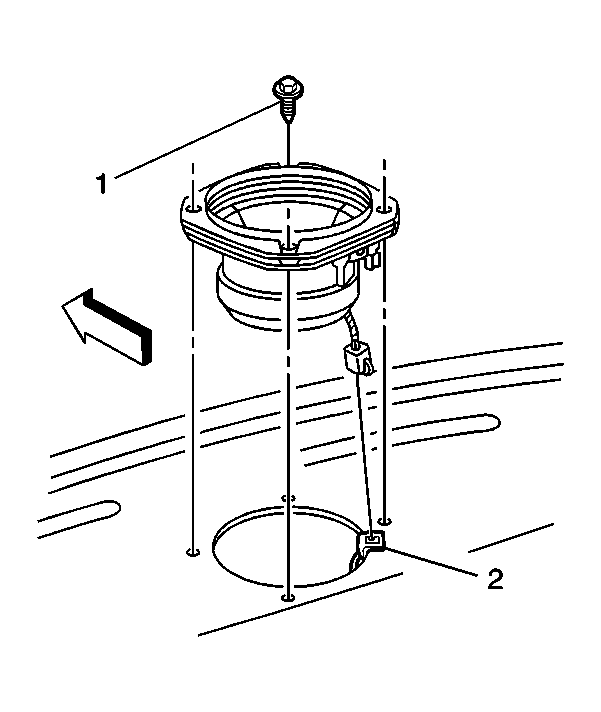

Fig 1: View Of Front Speaker

Courtesy of GENERAL MOTORS CORP.

Reinstall the defroster grille. Refer to Defroster Grille Replacement in Instrument Panel, Gages and Console.
