Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the horn electrical connector (3) to the horn assembly (2).
  2. Install the stud of the horn assembly (2) into the large portion of the keyhole slot (4).
  3. Slide the horn assembly (2) forward in the keyhole slot (4).
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Tighten the bolt (1) in order to secure the horn assembly (2) to the body side rail.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

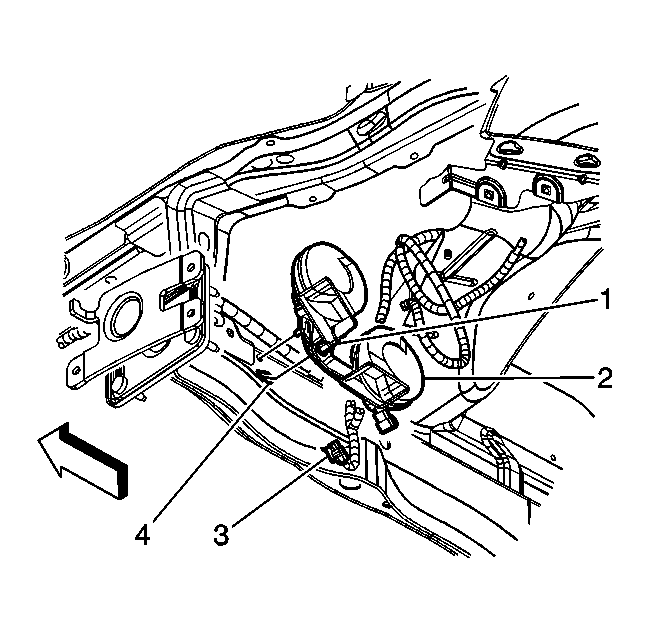

    5. Fig 1: View Of Horn Assembly
    GM702109Courtesy of GENERAL MOTORS CORP.
  5. Install the lower air deflector. Refer to Air Deflector Replacement - Front in Bumpers.
  6. Lower the vehicle.
