Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the antenna base to the roof opening.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the expansion sleeve (2) and the bolt (3).

    Tighten:  Tighten the nut to 6 N.m (53 lb in).

  3. Connect the antenna cables (4).

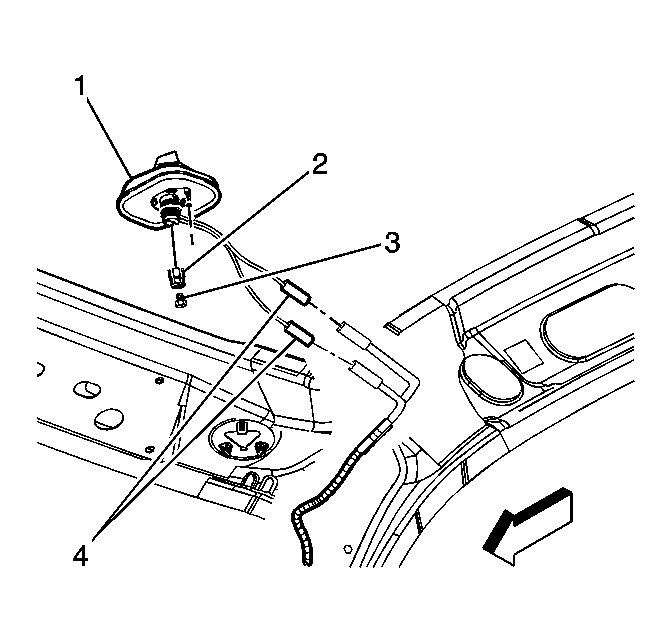

    4. Fig 1: View Of Antenna Base & Components
    GM1194930Courtesy of GENERAL MOTORS CORP.
  4. Install the headliner. Refer to Headliner Replacement in Interior Trim.
