Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the traction control electrical connector.
  2. Install the trim plate to the console with the front tabs.
  3. Push down on the rear of the trim plate to lock it onto the console.

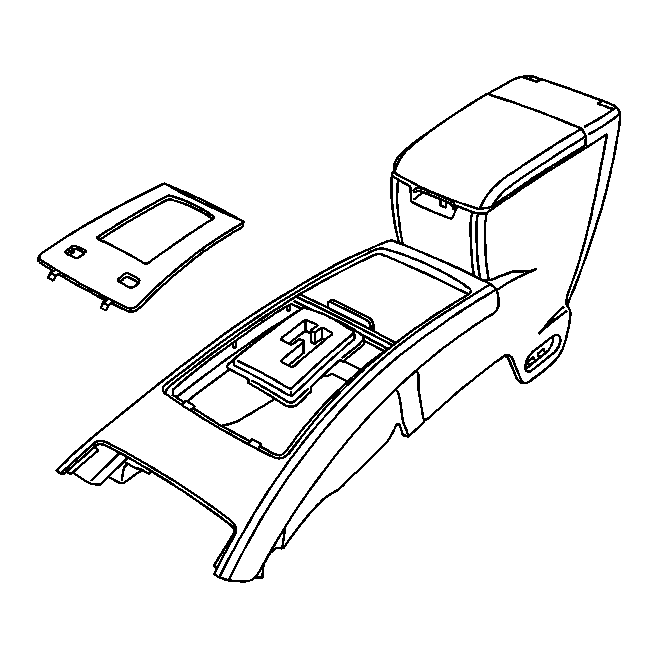

    4. Fig 1: View Of Console Shift Lever Trim Plate
    GM1233706Courtesy of GENERAL MOTORS CORP.
