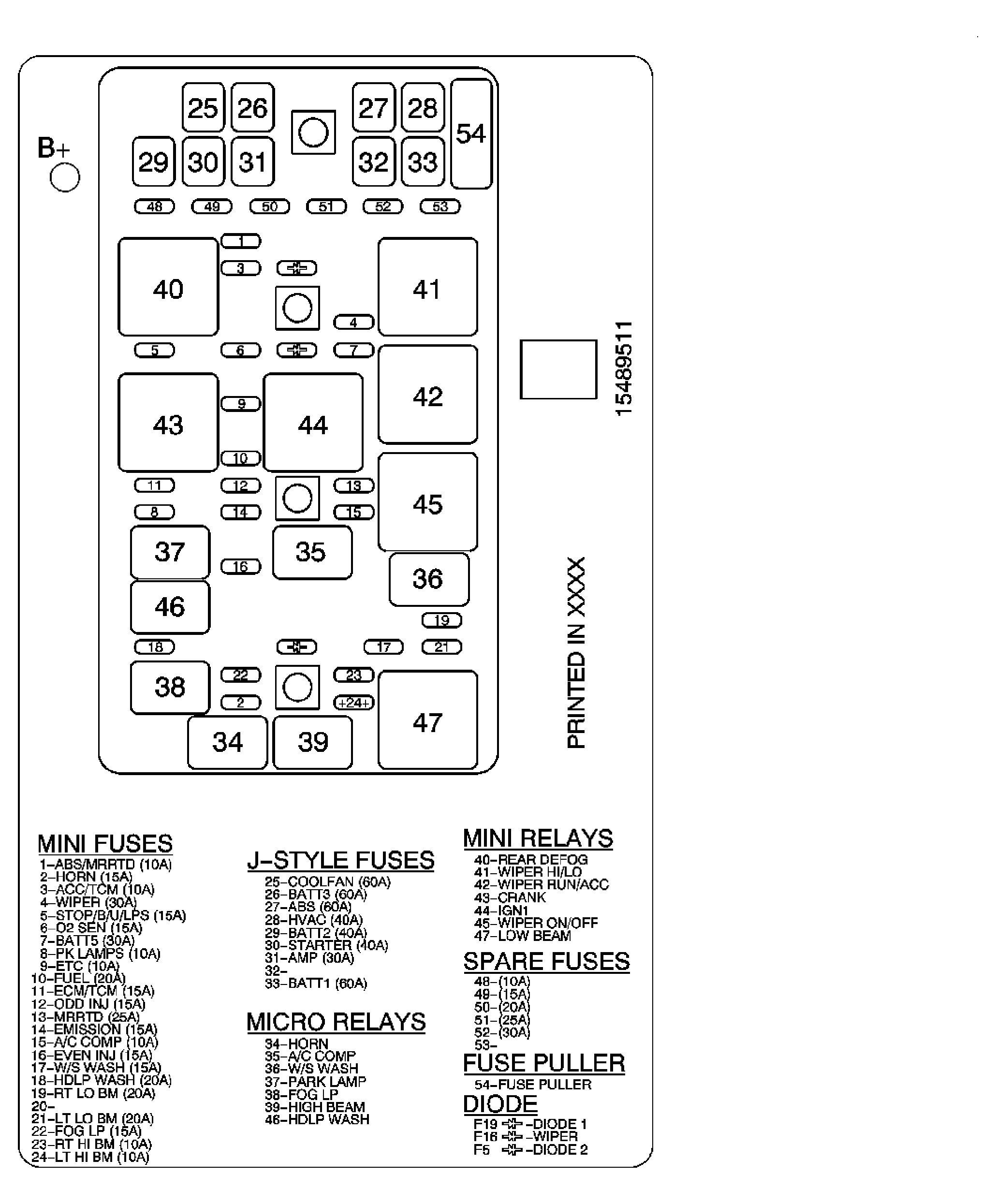

Fuse Block - Underhood Label
Fuse Block - Underhood Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | ABS/MRRTD Fuse | 10A | Electronic Brake Control Module (EBCM) and Electronic Suspension Control (ESC) Module |
| 2 | HORN Fuse | 15A | Generator and HORN Relay 34 |
| 3 | ACC/TCM Fuse | 10A | Distance Sensing Cruise Control Module (K59) and Transmission Control Module (TCM) |
| 4 | WIPER Fuse | 30A | WIPER ON/OFF Relay 45 and WIPER RUN/ACC Relay 42 |
| 5 | STOP/BU/LPS Fuse | 15A | Capacitor CP200, Body Control Module (BCM) STOP LAMP Relay 4 and REVERSE LAMPS Relay 3 |
| 6 | 02 SEN Fuse | 15A | Heated Oxygen Sensors (HO2S) |
| 7 | BATT5 Fuse | 30A | Body Control Module (BCM) TILT/TELE SW/MEM SEAT MOD, ACCA/DRIV DR SW, IGNITION SW/INTR SENS, ONSTAR, and PARK BRAKE SOL A Fuses |
| 8 | PK LAMPS Fuse | 10A | PARK LAMP Relay 37 |
| 9 | ETC Fuse | 10A | Engine Control Module (ECM) |
| 10 | FUEL Fuse | 20A | Fuel Pump Control Module |
| 11 | ECM/TCM | 15A | Engine Control Module (ECM) and Transmission Control Module (TCM) |
| 12 | ODD INJ Fuse | 15A | Odd Fuel Injectors and Ignition Coil/Modules |
| 13 | MRRTD Fuse | 25A | Evaporative Emission (EVAP) Canister Vent Solenoid and Electronic Suspension Control (ESC) Module |
| 14 | EMISSION Fuse | 15A | Evaporative Emission (EVAP) Canister Purge Solenoid |
| 15 | A/C COMP Fuse | 10A | A/C COMP Relay 35 |
| 16 | EVEN INJ Fuse | 15A | Even Fuel Injectors and Ignition Coil/Modules |
| 17 | W/S WASH Fuse | 15A | W/S WASH Relay 36 |
| 18 | HDLP WASH Fuse | 20A | HDLP WASH Relay 46 |
| 19 | RT LO BM Fuse | 20A | Right Headlamp Ballast |
| 20 | - | - | Not Used |
| 21 | LT LO BM Fuse | 20A | Left Headlamp Ballast |
| 22 | FOG LP Fuse | 15A | FOG LP Relay 38 |
| 23 | RT HI BM Fuse | 10A | Right High Beam Headlamp |
| 24 | LT HI BM Fuse | 10A | Left High Beam Headlamp |
| 25 | COOLFAN Fuse (Late) | 60A | Fan Control Module |
| 26 | BATT 3 Fuse | 60A | Body Control Module (BCM) A.C. LATCH/PK BRK B, BTSI SOL/COL LOCK, CLUSTER, DOOR LOCKS, HVAC/PWR SND, INTERIOR LIGHTS, PWR FLDG MIR-EXT/RET, RADIO/ANT/VICS, REAR FOG/ALDL TOP SW Fuses, and RUN/CRANK Relay 2 |
| 27 | ABS Fuse | 60A | Electronic Brake Control Module (EBCM) |
| 28 | HVAC Fuse | 40A | Blower Motor Control Processor |
| 29 | BATT2 Fuse | 40A | Folding Top Module and REAR DEFOG Relay 4 |
| 30 | STARTER Fuse | 40A | CRANK Relay 43 |
| 31 | AMP Fuse | 30A | Audio Amplifier |
| 32 | COOLFAN Fuse (Early) | 40A | Cooling Fan |
| 33 | BATT1 Fuse | 60A | I/P Fuse Block DOOR CONTROLS and POWER SEATS Circuit Breakers, HEATED SEAT LH, HEATED SEAT RH, and POWER LUMBAR LH/RH Fuses |
| 34 | HORN Relay | - | Horns |
| 35 | A/C COMP Relay | - | A/C Compressor Clutch |
| 36 | W/S WASH Relay | - | Windshield Washer Fluid Pump |
| 37 | PARK LAMP Relay | - | Park Lamps |
| 38 | FOG LP Relay | - | Front Fog Lamps |
| 39 | HIGH BEAM Relay | - | High Beam Headlamps |
| 40 | REAR DEFOG Relay | - | Rear Window Defogger |
| 41 | WIPER HI/LO Relay | - | Wiper/Washer System |
| 42 | WIPER RUN/ACC Relay | - | Wiper/Washer System |
| 43 | CRANK Relay | - | Starter |
| 44 | IGN1 Relay | - | EMISSION, EVEN INJ, ETC, FUEL, O2, and ODD INJ Fuses and A/C COMP Relay 35 |
| 45 | WIPER ON/OFF Relay | - | Wiper/Washer System |
| 46 | HDLP WASH Relay | - | Headlamp Washer Fluid Pump |
| 47 | LOW BEAM Relay | - | Low Beam Headlamps |
| 48 | SPARE FUSE | 10A | Not Used |
| 49 | SPARE FUSE | 15A | Not Used |
| 50 | SPARE FUSE | 20A | Not Used |
| 51 | SPARE FUSE | 25A | Not Used |
| 52 | SPARE FUSE | 30A | Not Used |
| 53 | - | - | Not Used |
| 54 | FUSE PULLER | - | Fuse Puller |
| F5 | DIODE 2 | - | Wiper/Washer System |
| F16 | WIPER Diode | - | Wiper/Washer System |
| F19 | DIODE 1 | - | Wiper/Washer System |
