Anti-Lock Brake System Schematics

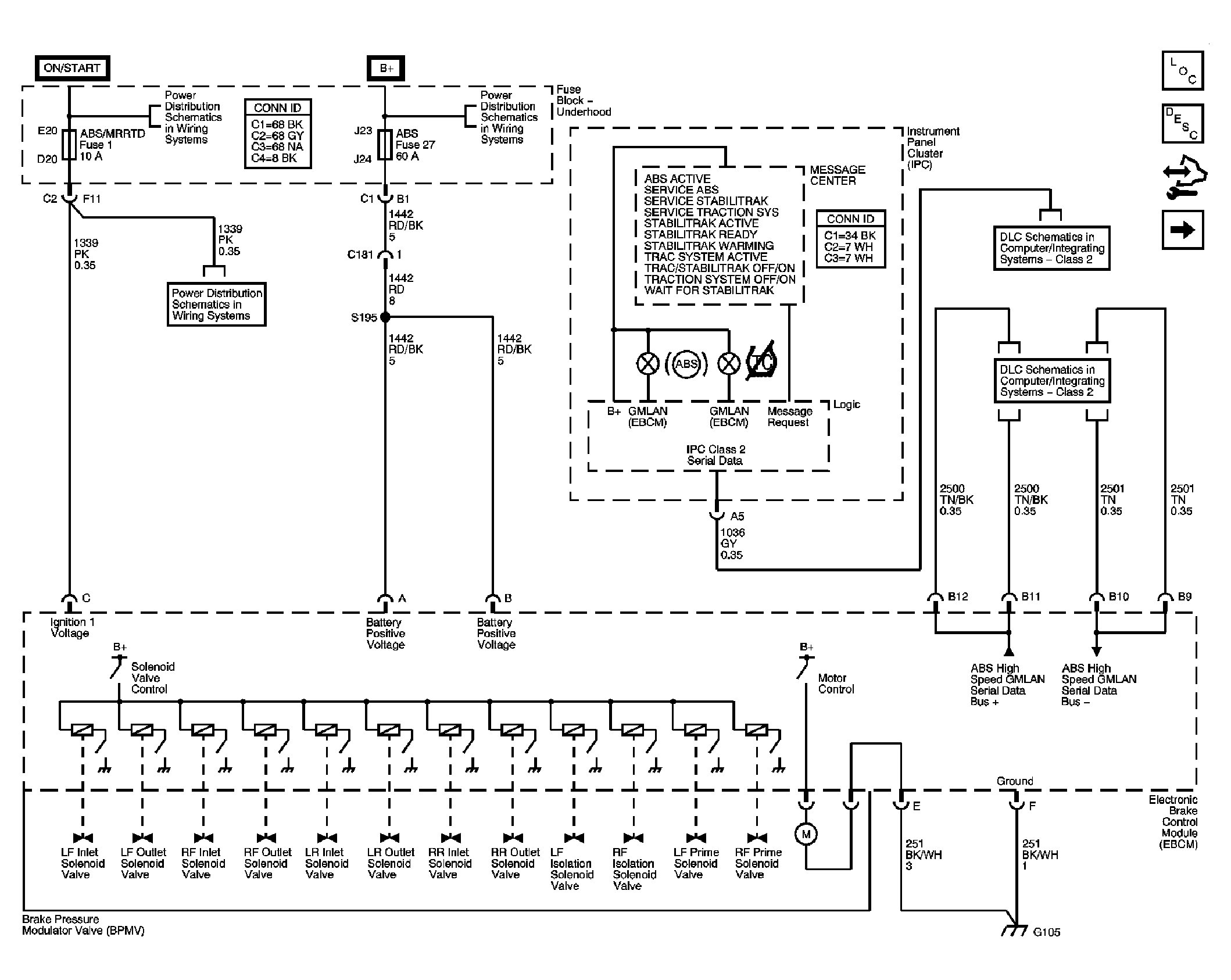

Fig 1: Ground, Indicators, Messages, and Power
GM1686700Courtesy of GENERAL MOTORS CORP.

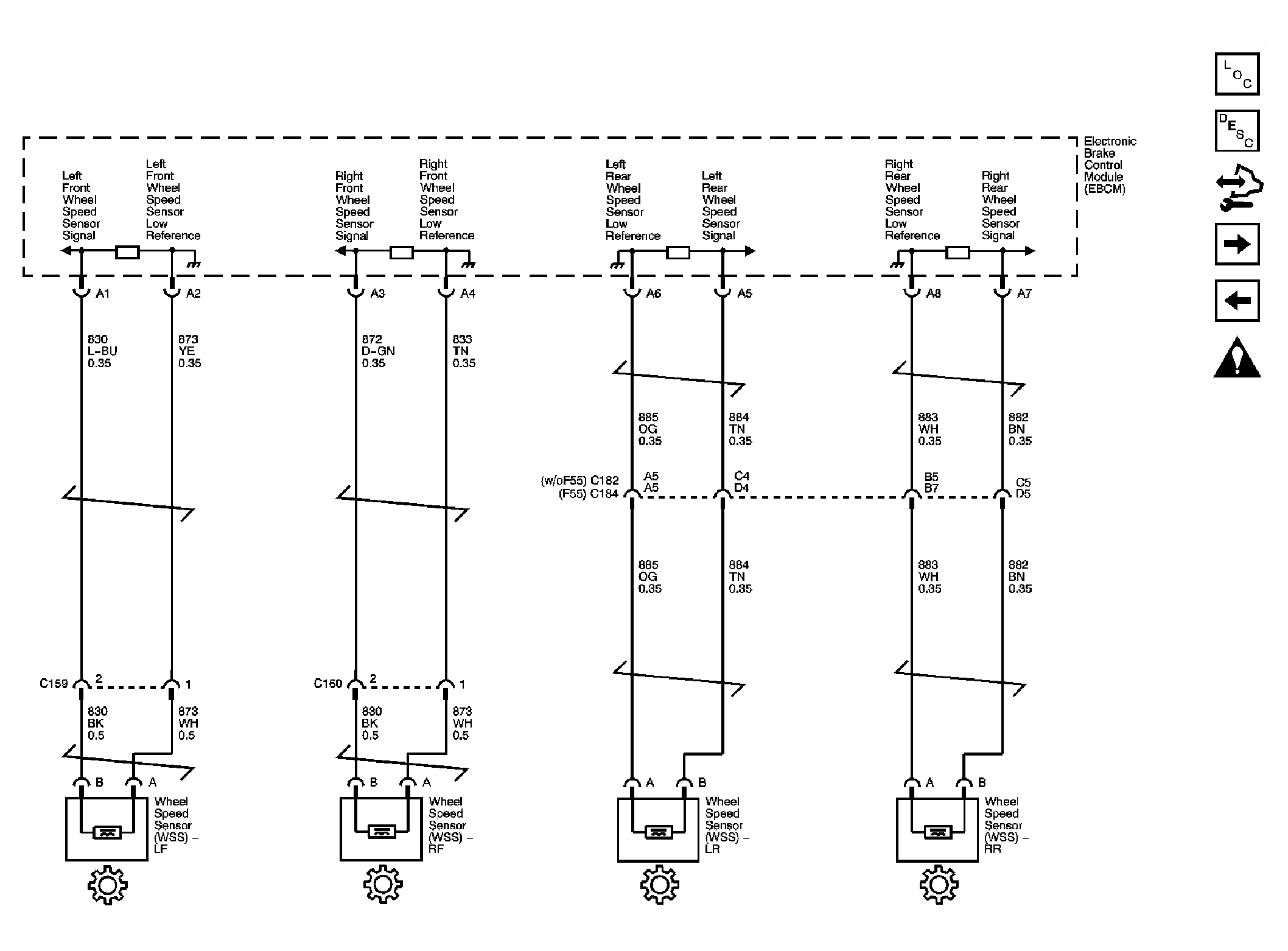

Fig 2: Wheel Speed Sensors
GM1480603Courtesy of GENERAL MOTORS CORP.

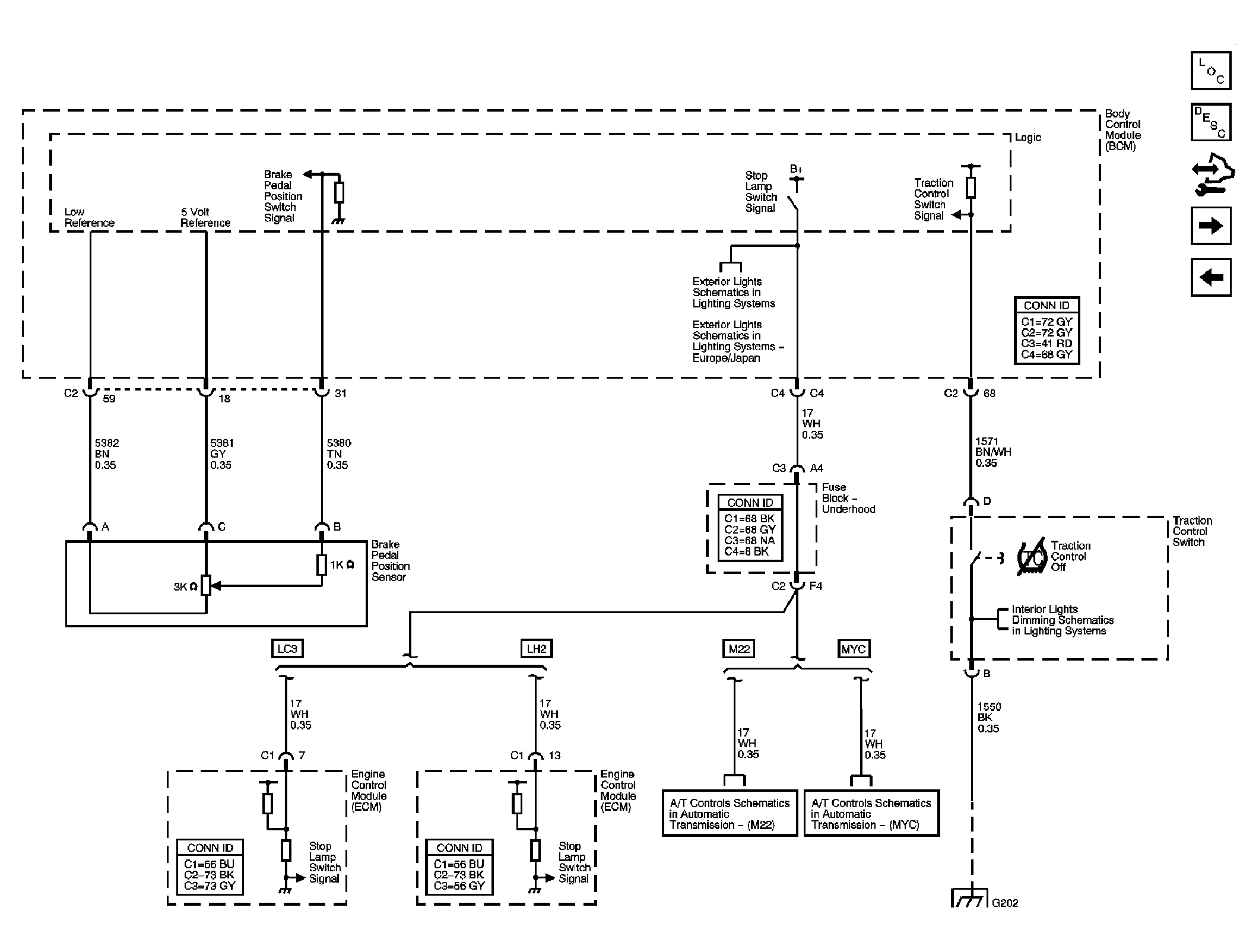

Fig 3: Brake Pedal Signal and Traction Control Switch
GM1659007Courtesy of GENERAL MOTORS CORP.

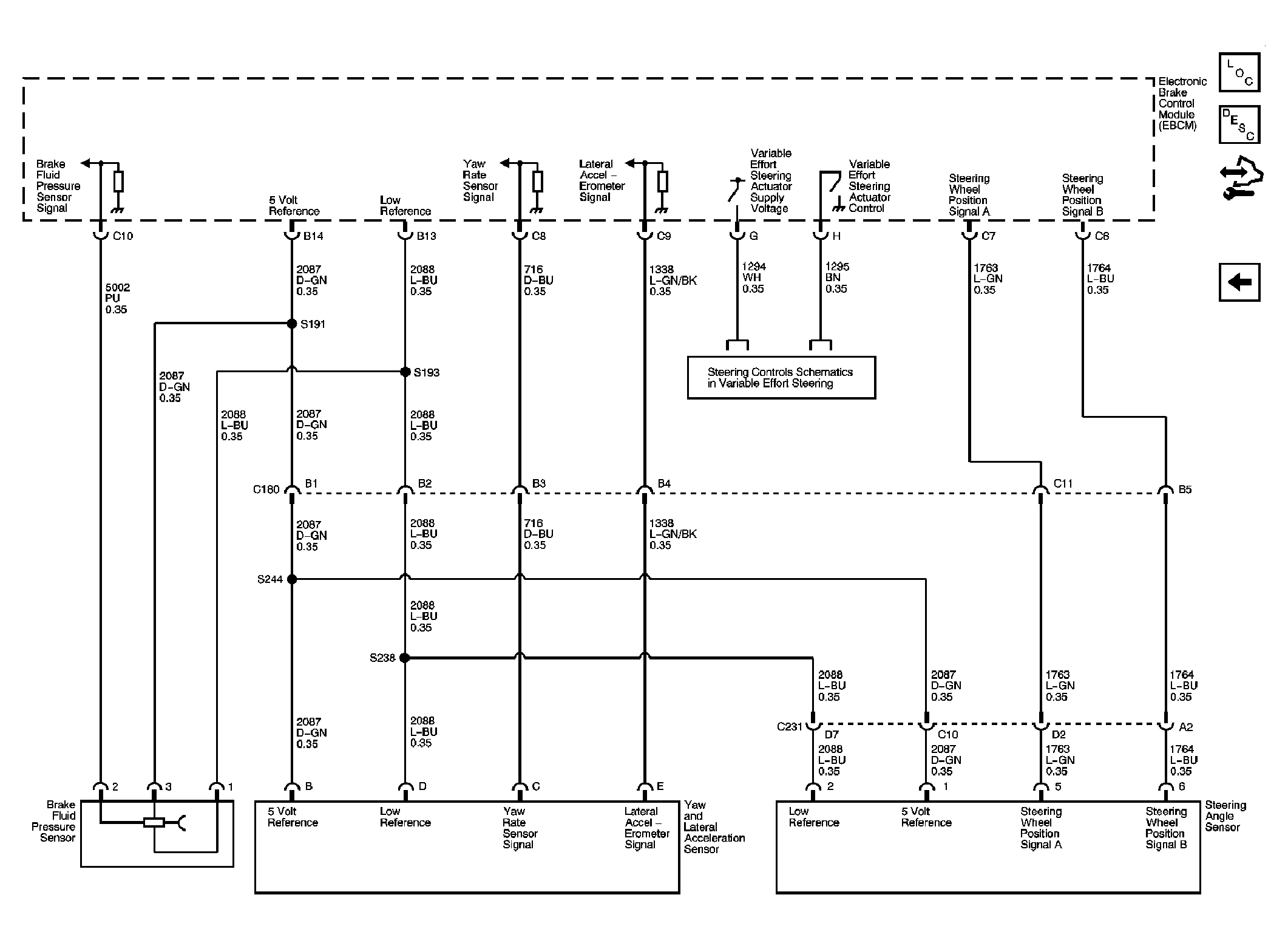

Fig 4: Stability Control Sensors
GM1480606Courtesy of GENERAL MOTORS CORP.
