Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Control Module Schematics
Door Control Module Schematics

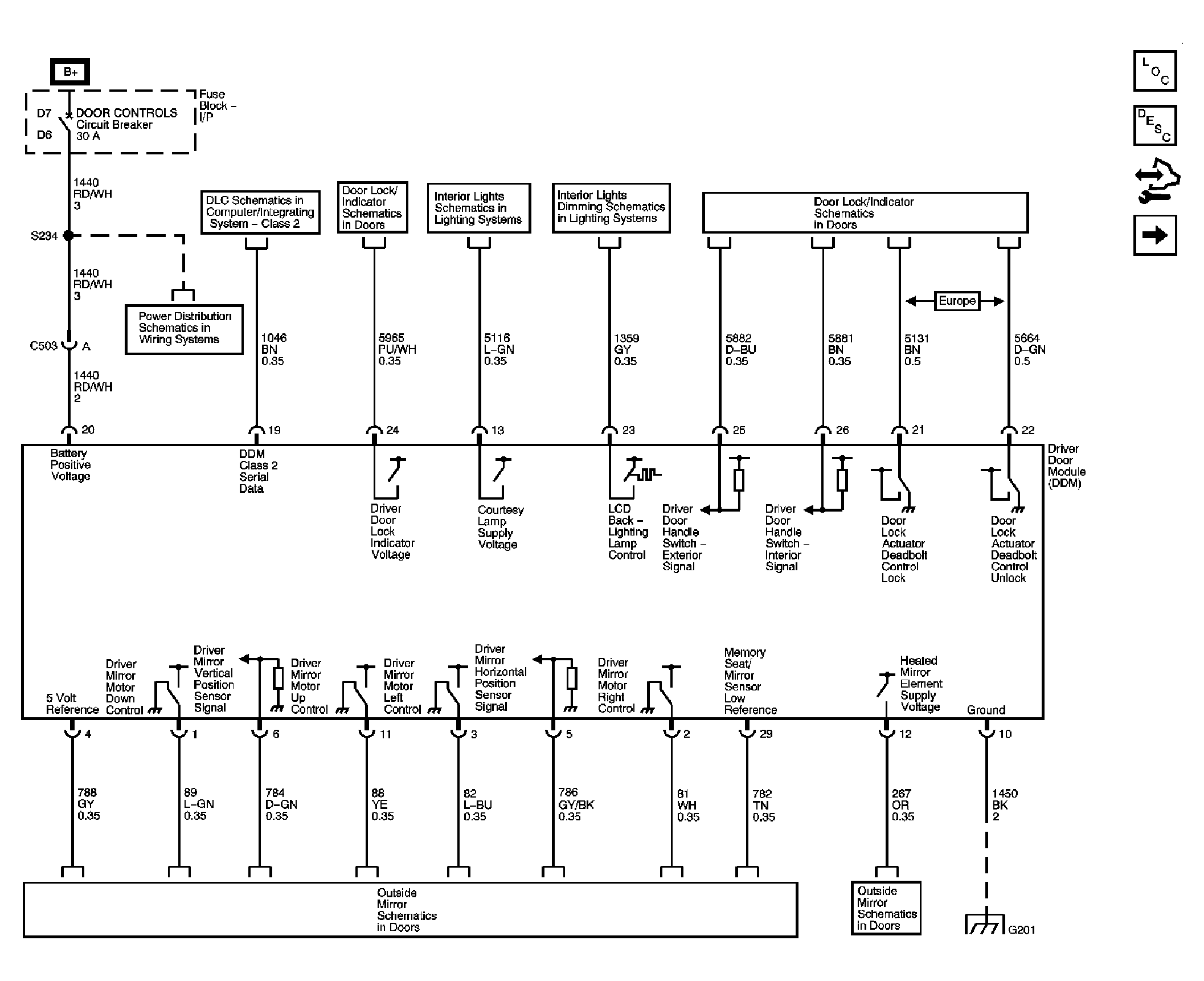

Fig 1: Driver
Courtesy of GENERAL MOTORS CORP.

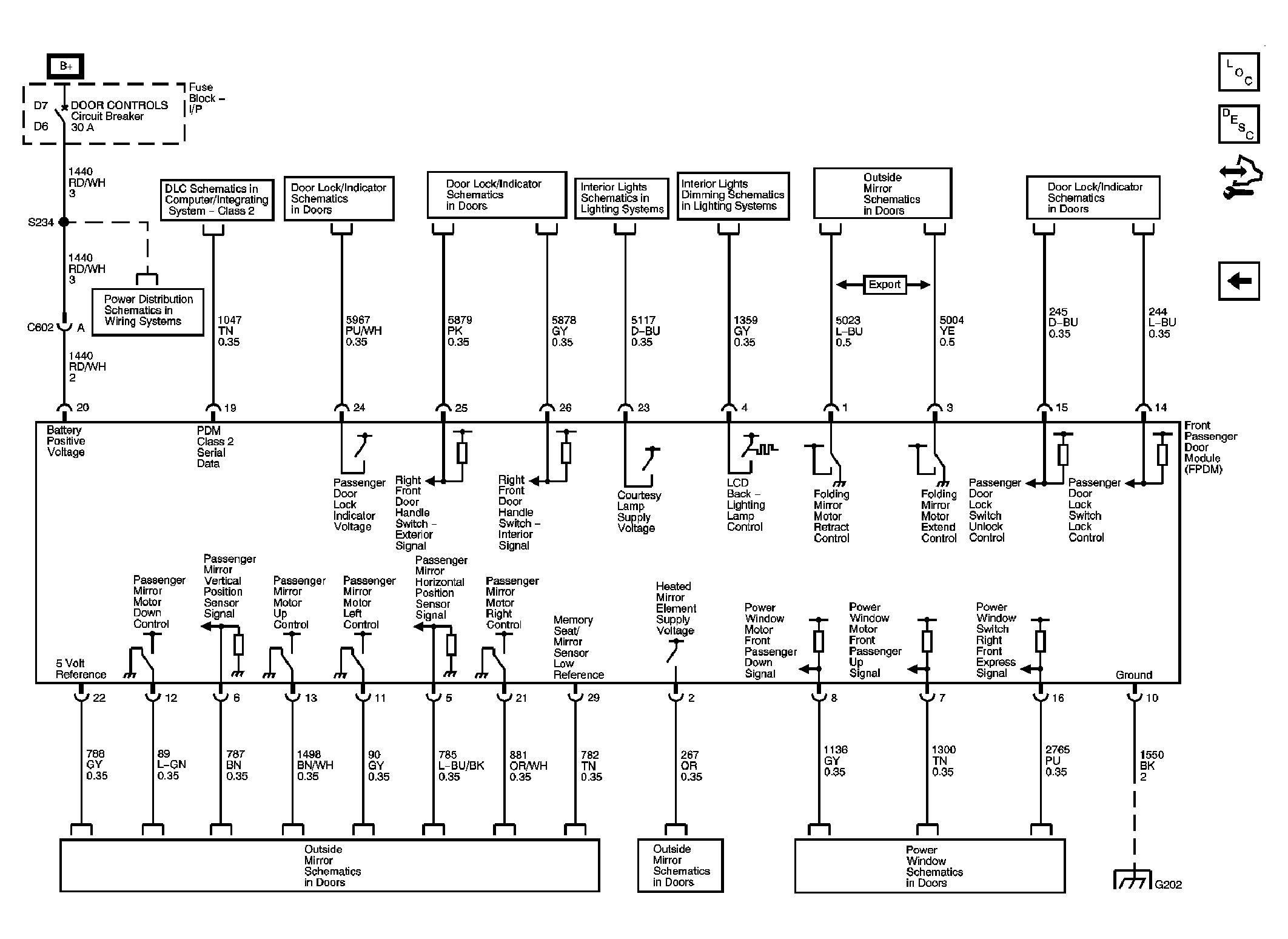

Fig 2: Passenger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
