Installation Procedure
- Clean and prepare all of the welded surface and apply 3M weld-thru coating P/N 05916 or equivalent as necessary.
Courtesy of GENERAL MOTORS CORP.

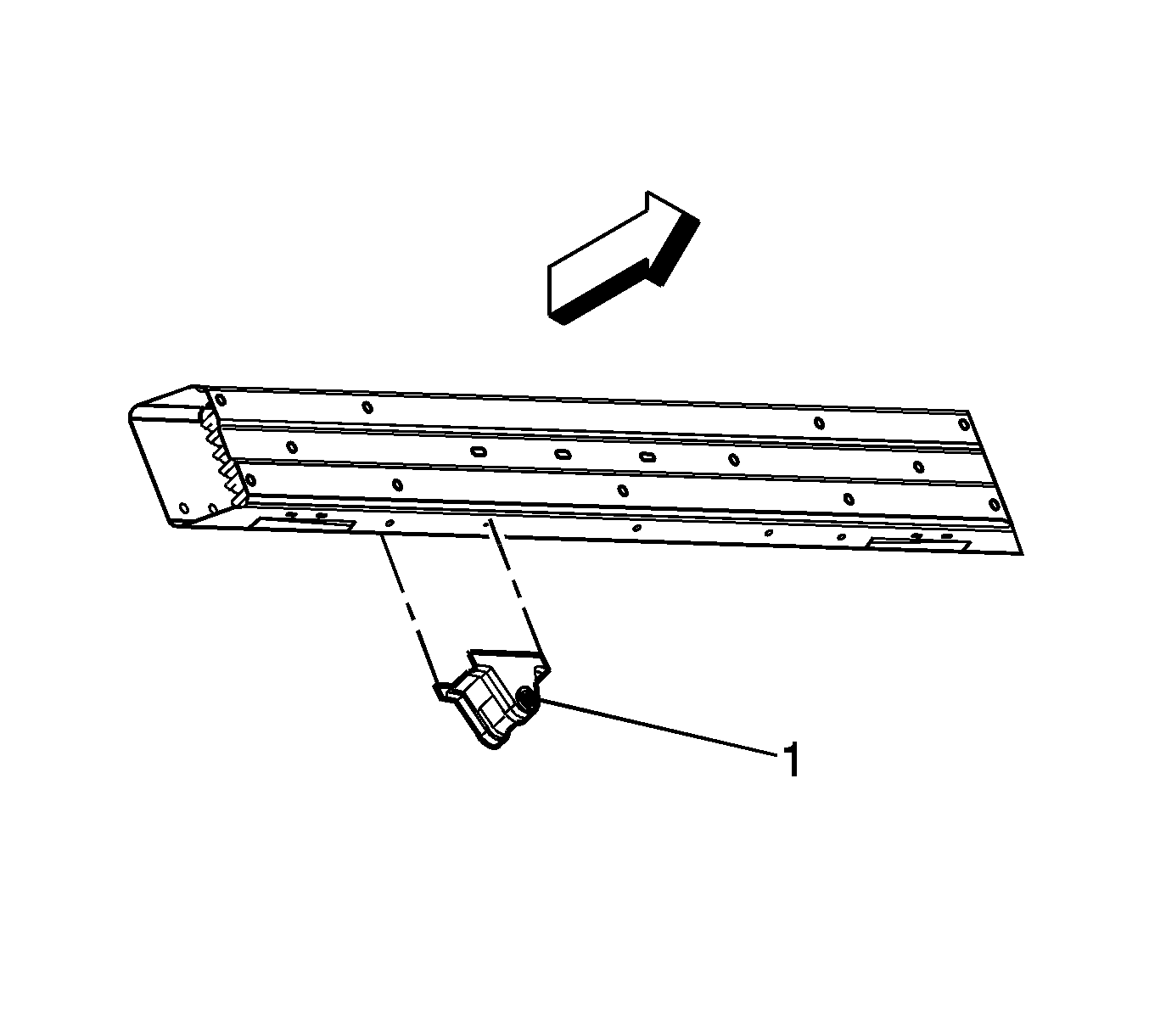

- Position the tow hook (1) to the passenger side of the impact bar.
Courtesy of GENERAL MOTORS CORP.

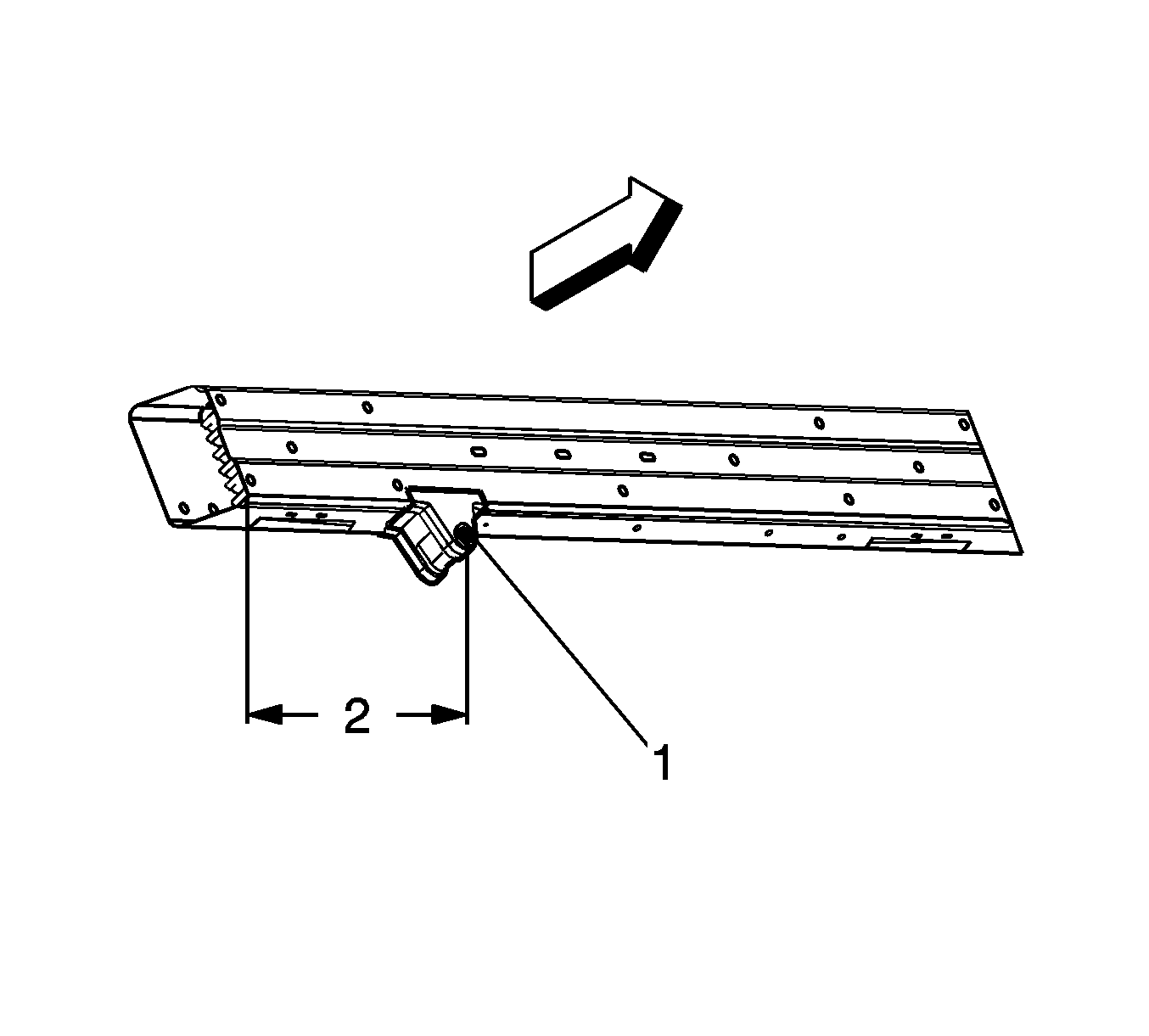

- From right outer edge of the impact bar (2) measure 269 mm (105/8 in) to the center of the tow hook (1).
Courtesy of GENERAL MOTORS CORP.

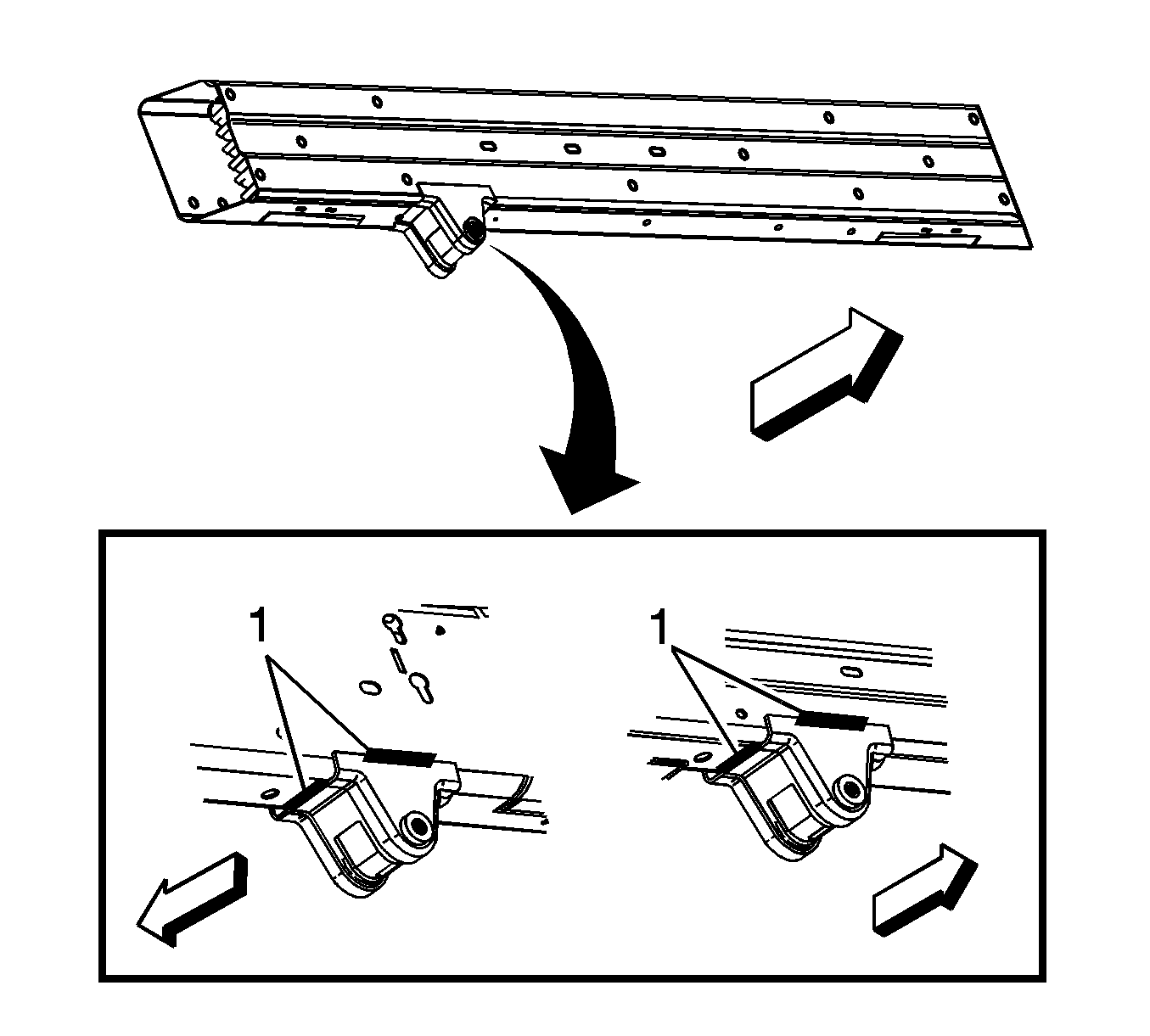

- Using a Metal Inset Gas (MIG) welder, weld a 51 mm (2 in) stitch along the tow hook to the impact bar in 4 places (1).
- Front
- Rear
- Inboard side
- Outboard side
- Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to Anti-Corrosion Treatment and Repair
in Paint and Coating.
- Paint the repair area. Refer to Basecoat/Clearcoat Paint Systems
in Paint and Coating.
- Install all related panels and components.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
in Engine Electrical.
- Enable the SIR system. Refer to SIR Disabling and Enabling
in SIR.
