Body Control System Schematics

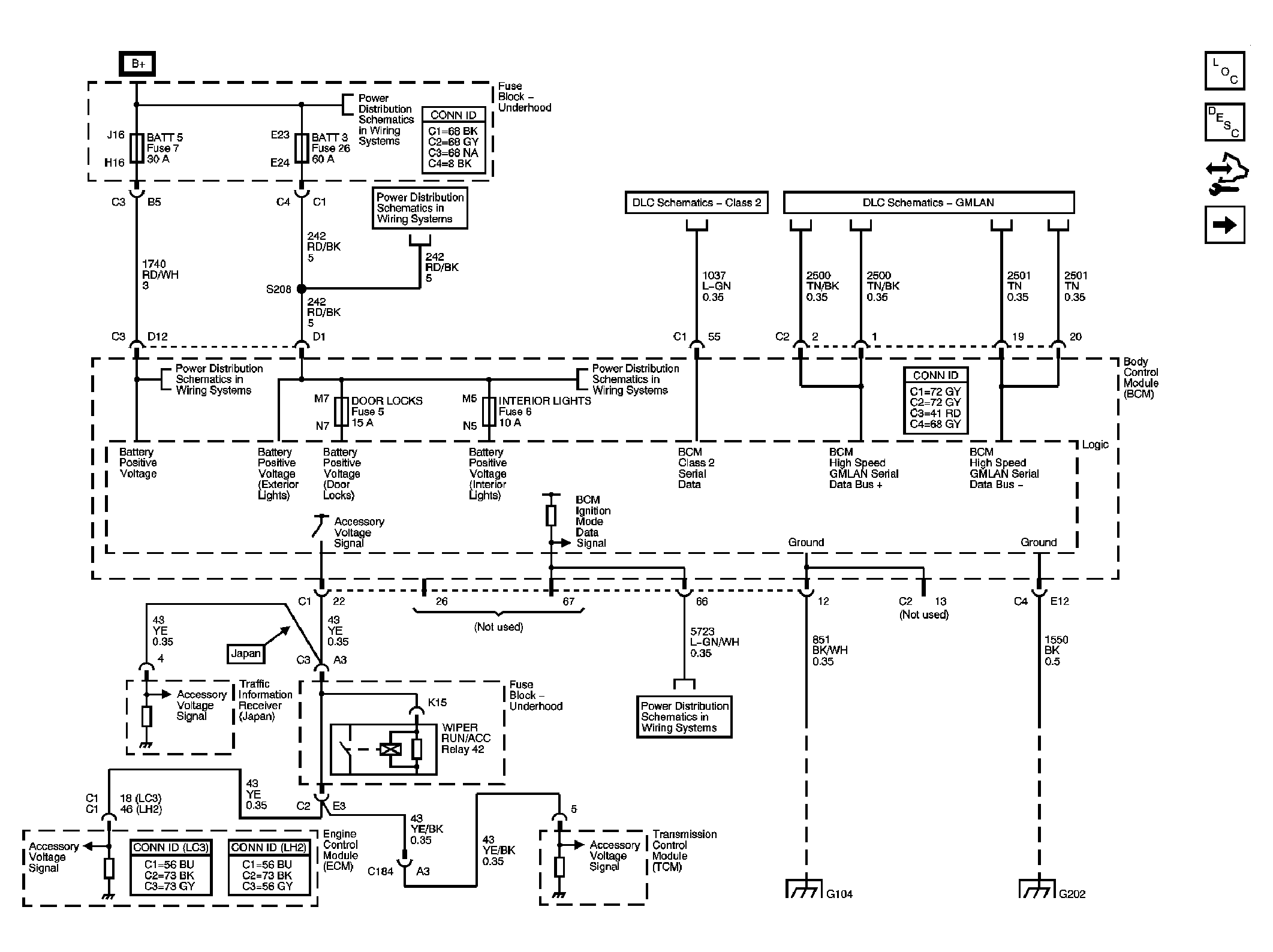

Fig 1: DLC, Ground and Power
GM1658973Courtesy of GENERAL MOTORS CORP.

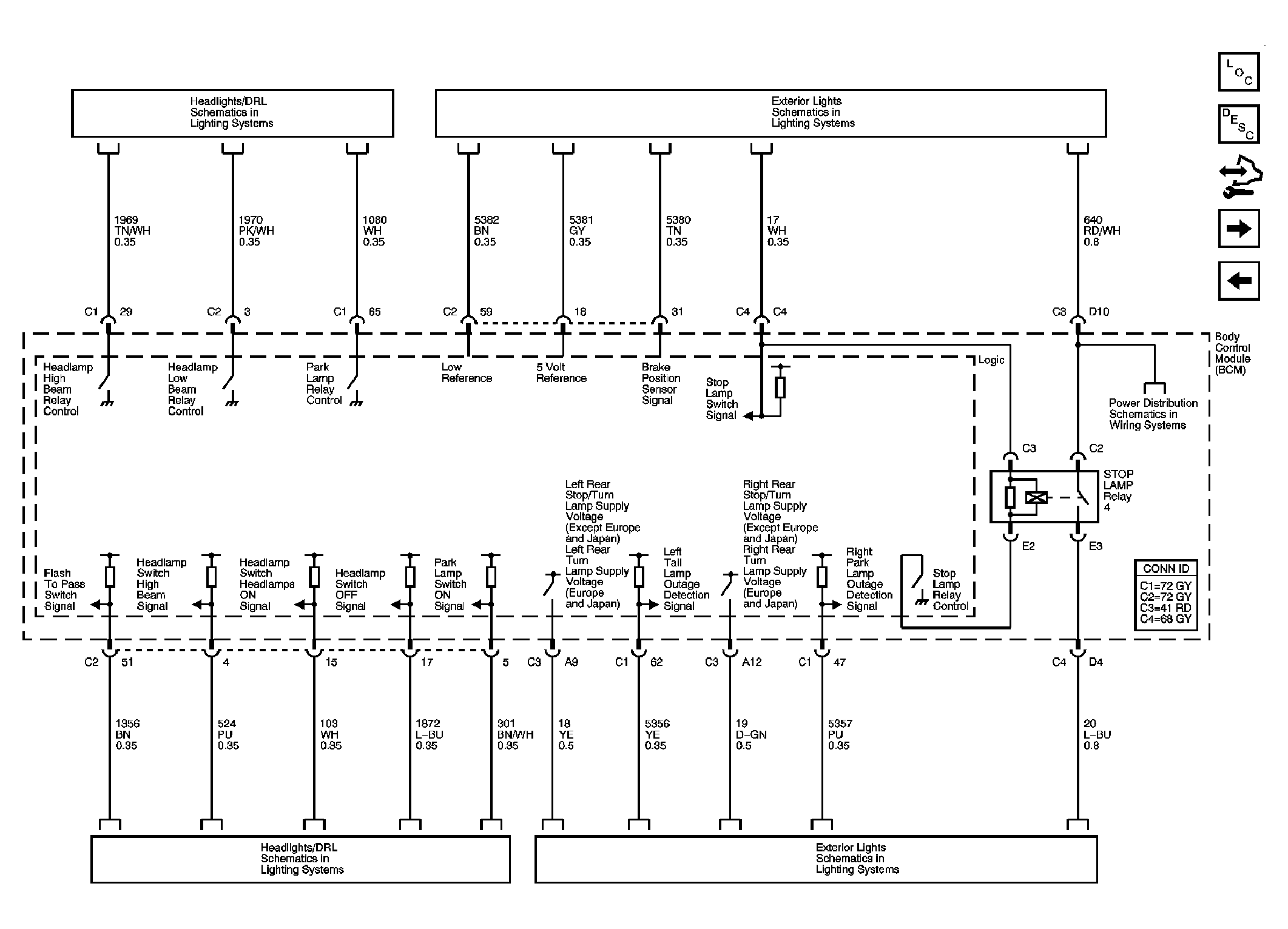

Fig 2: Lighting References 1 of 2
GM1480877Courtesy of GENERAL MOTORS CORP.

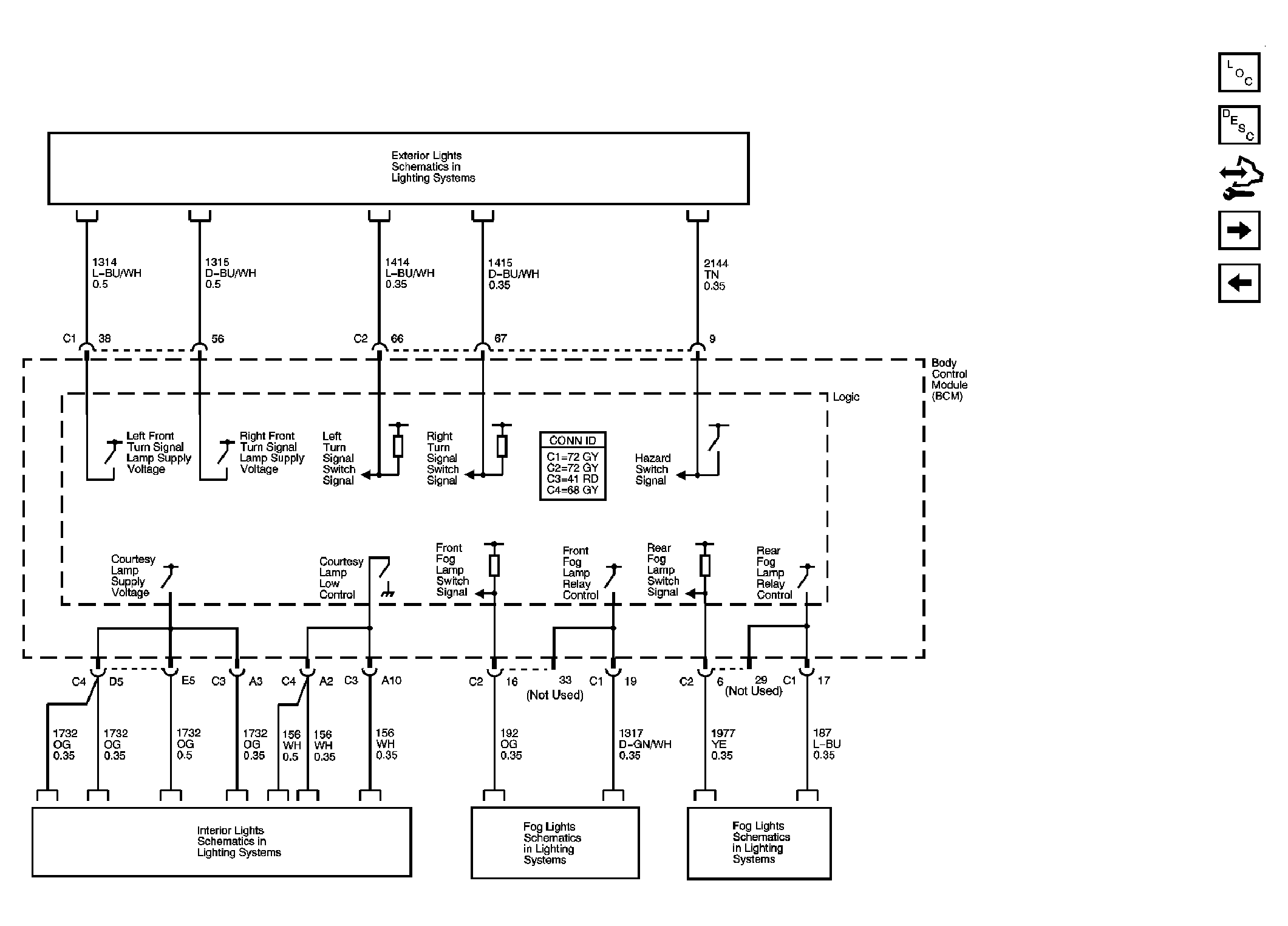

Fig 3: Lighting References 2 of 2
GM1480879Courtesy of GENERAL MOTORS CORP.

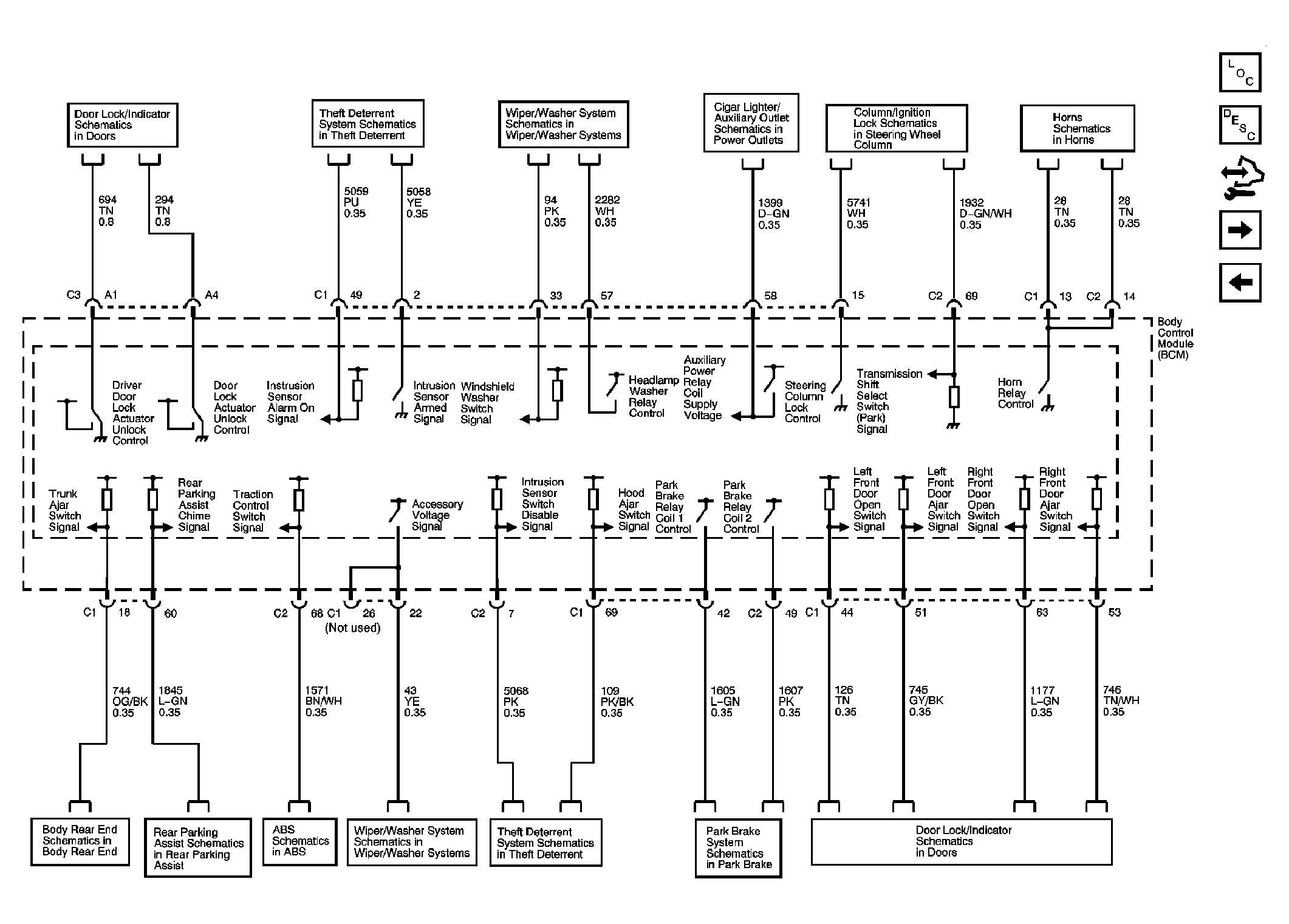

Fig 4: Subsystems References
GM1480880Courtesy of GENERAL MOTORS CORP.

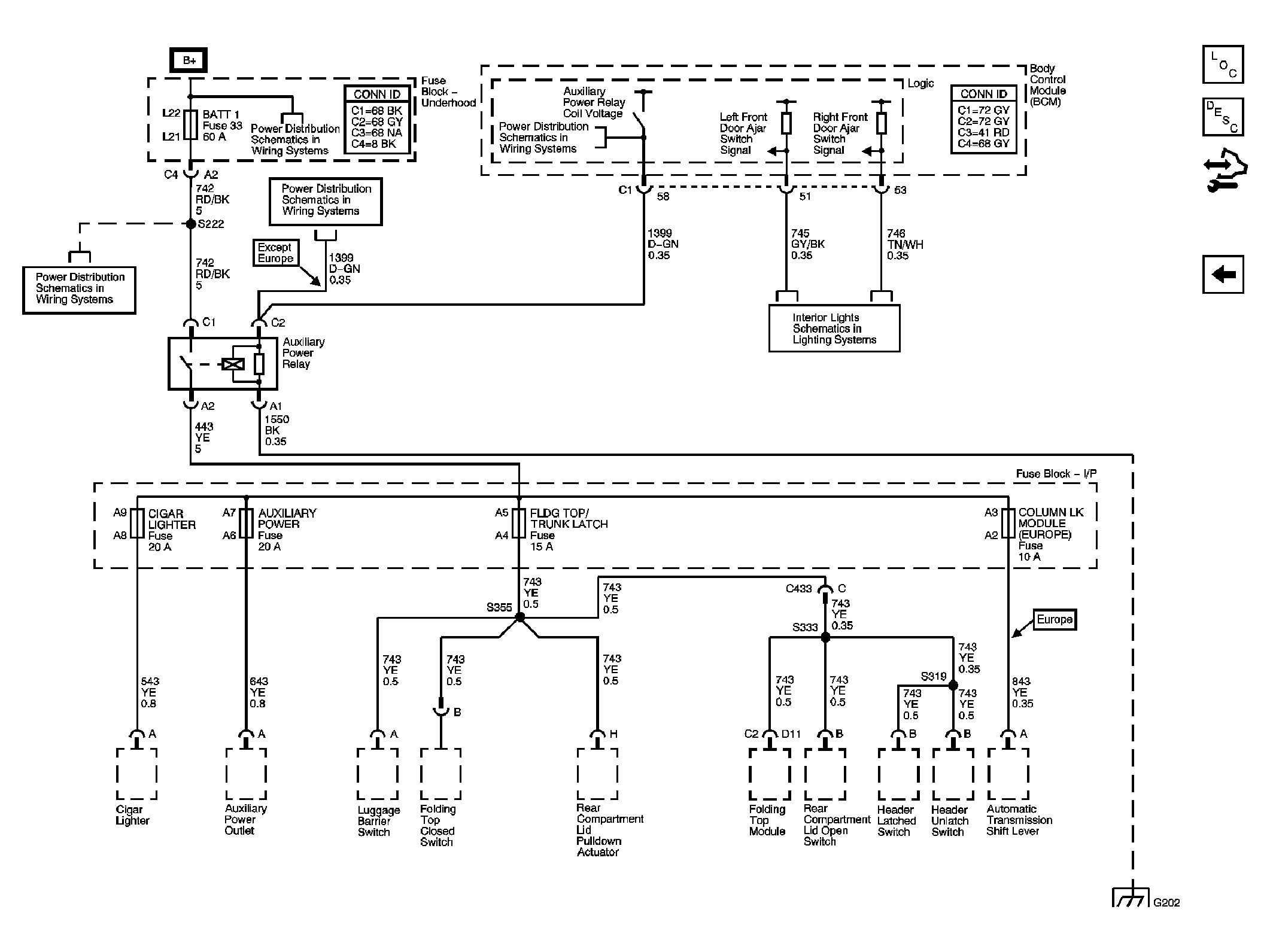

Fig 5: Auxiliary Power
GM1480882Courtesy of GENERAL MOTORS CORP.
