Object Detection Schematics

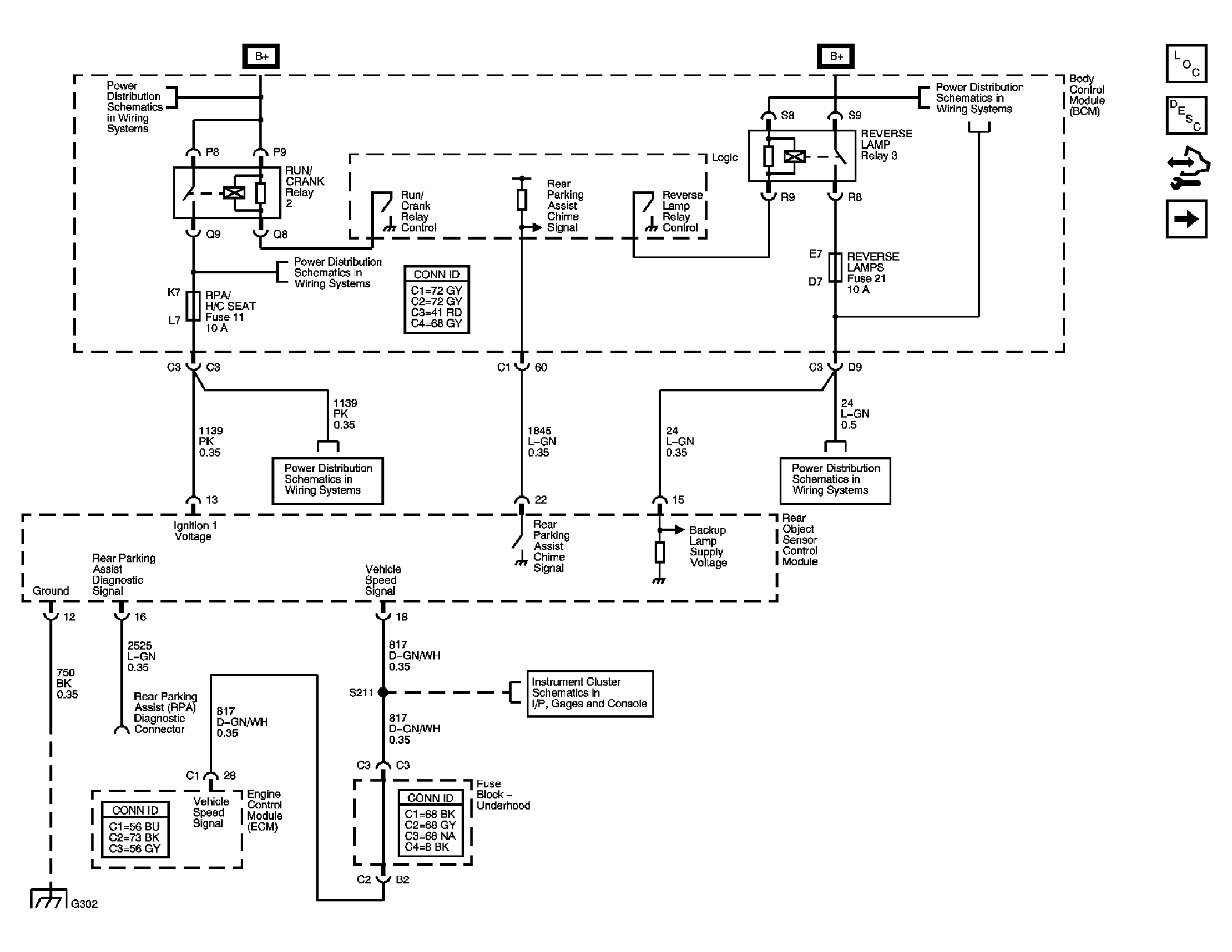

Fig 1: DLC, Ground, Power, and Non-Sensor Signals
Courtesy of GENERAL MOTORS CORP.

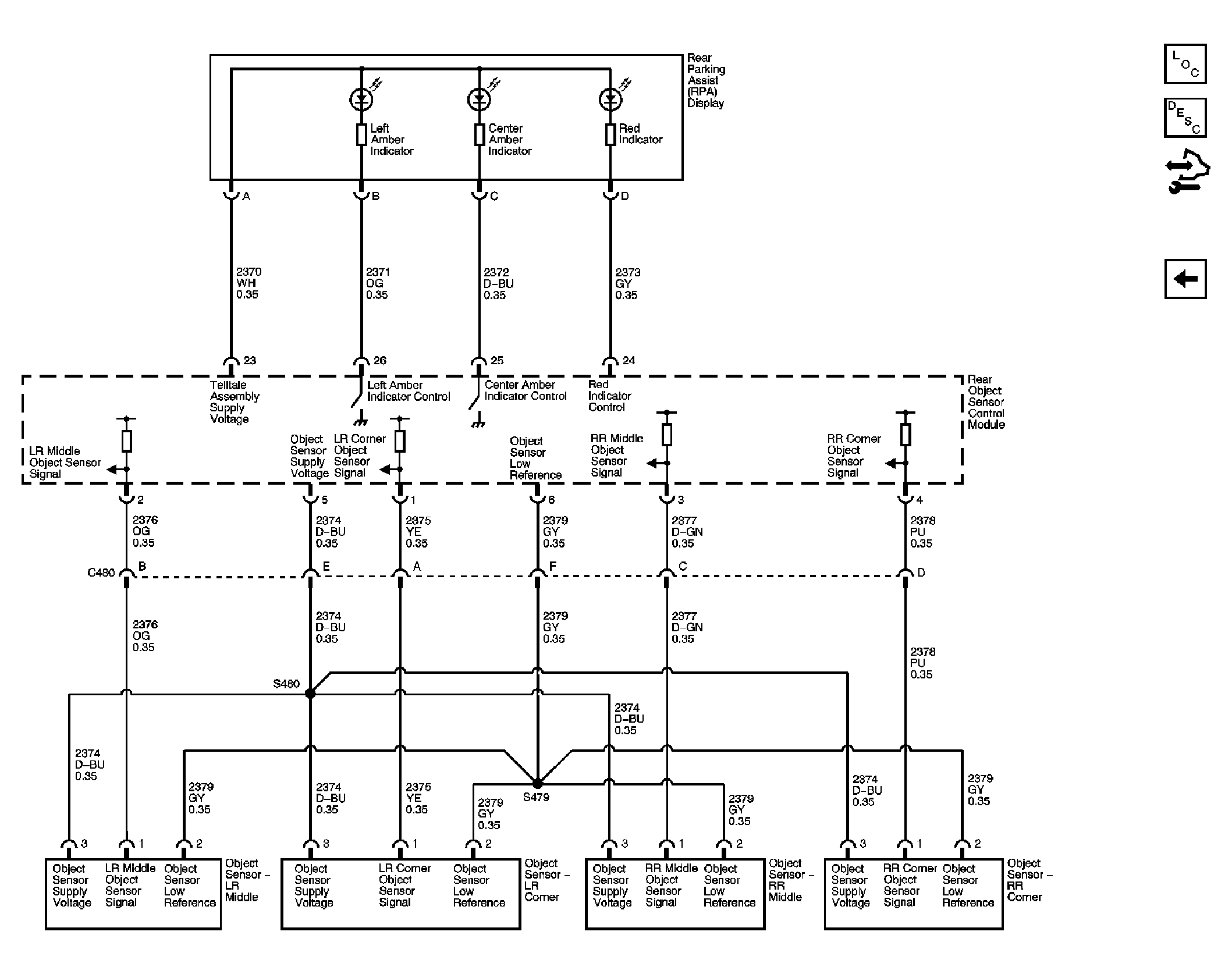

Fig 2: Display and Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
