Television Antenna Amplifier Replacement

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

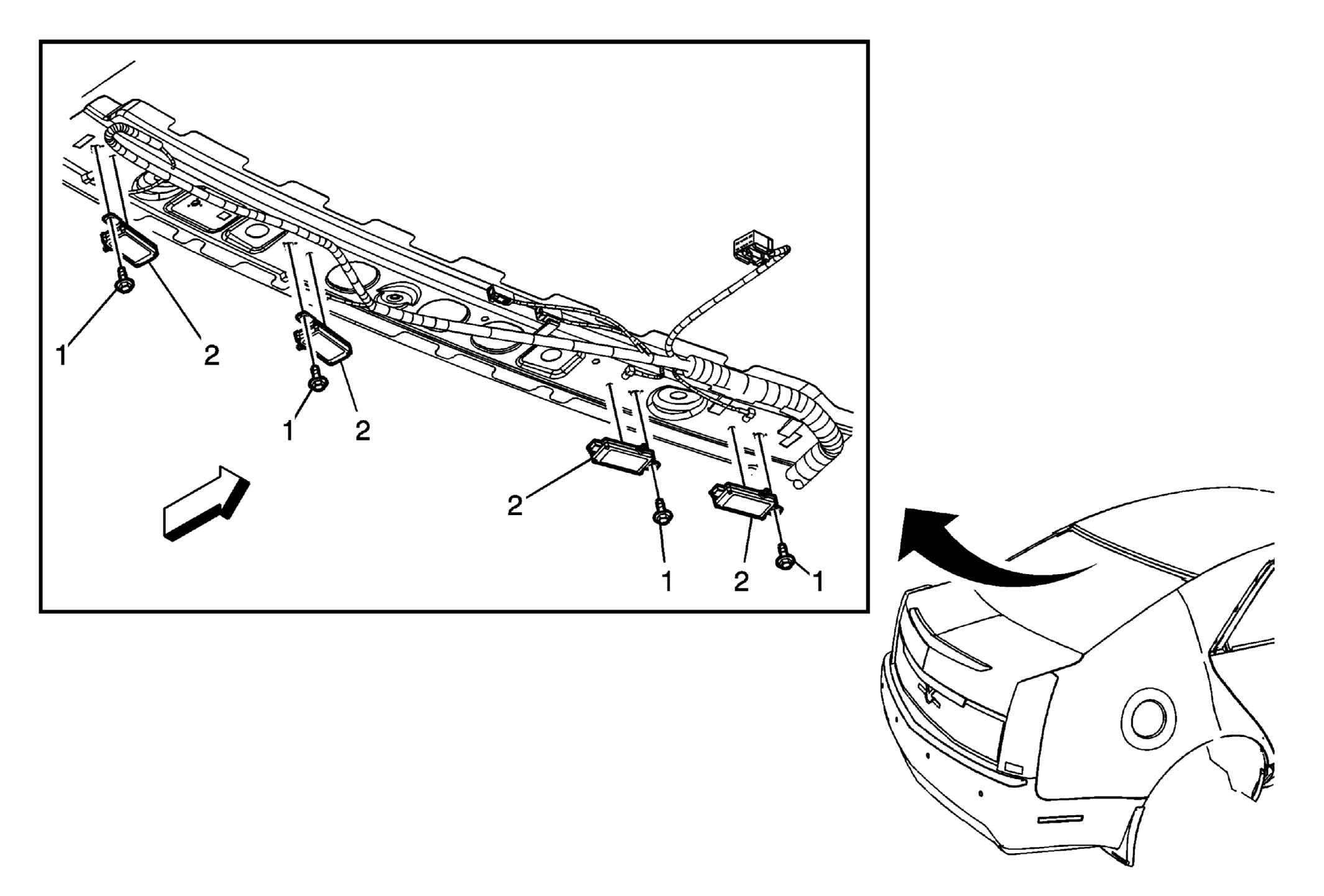

Fig 1: Television Antenna Amplifier & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement (Coupe) , Headlining Trim Panel Replacement (Sedan) , Headlining Trim Panel Replacement (Wagon) .
1	Television Antenna Amplifier Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Television Antenna Amplifier Assembly Procedure Disconnect the electrical connections. Disconnect the antenna cables.

Callout

Component Name

Preliminary Procedure
Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement (Coupe) , Headlining Trim Panel Replacement (Sedan) , Headlining Trim Panel Replacement (Wagon) .

Television Antenna Amplifier Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Television Antenna Amplifier Assembly

Procedure

Disconnect the electrical connections.
Disconnect the antenna cables.
