Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

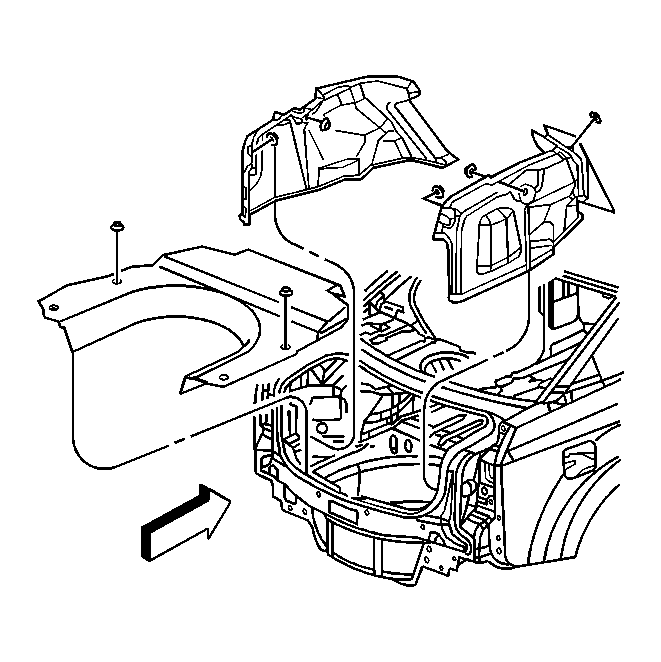

    Fig 1: Rear Compartment Trim Panel
    GM729789Courtesy of GENERAL MOTORS CORP.
  1. Install the rear compartment side trim panels.
  2. Install the rear compartment side trim panel retainers.
  3. Install the rear compartment floor trim panel.
  4. Install the rear compartment floor trim panel retainers.
  5. Install the rear compartment sill plate.
