Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

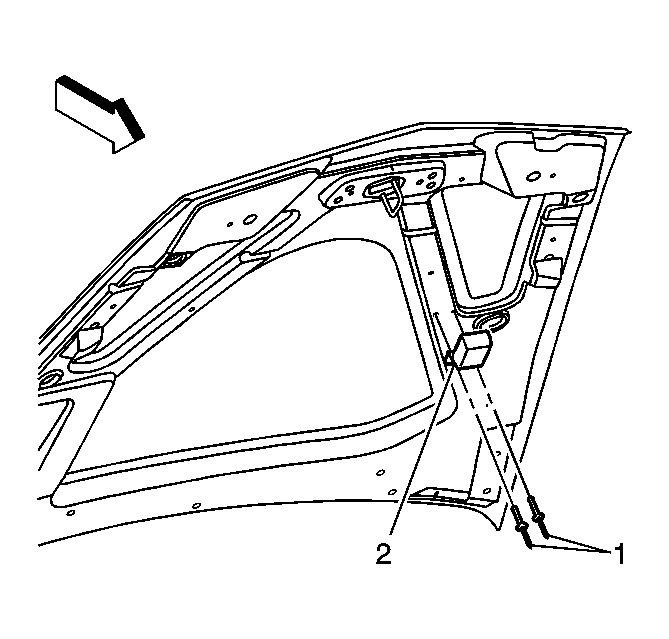

    Fig 1: View Of Underhood Lamp & Rivets
    GM916411Courtesy of GENERAL MOTORS CORP.
  1. Position the underhood lamp (2) to the hood.
  2. Rivet (1) the underhood lamp (2) to the hood.

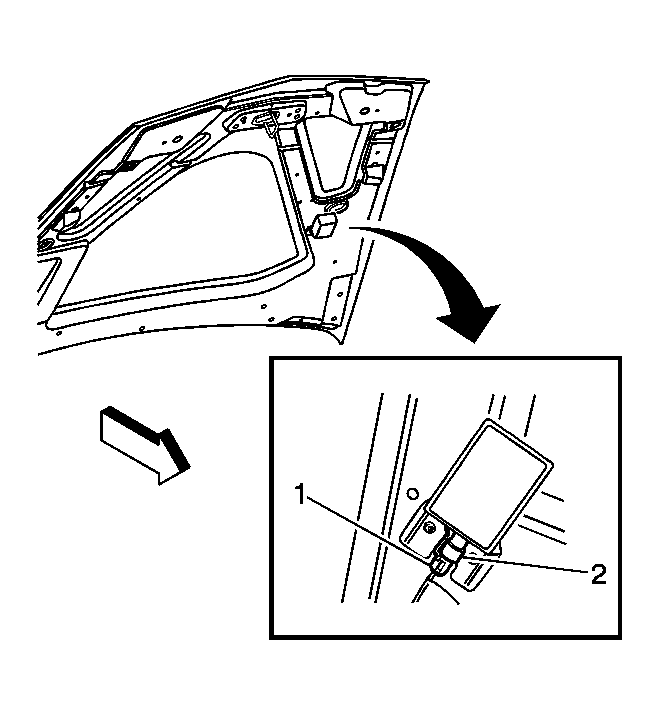

    3. Fig 2: View Of Underhood Lamp & Electrical Connector
    GM916439Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (1) to the underhood lamp (2).
  4. Inspect the underhood lamp for proper operation.
  5. Install the hood insulator. Refer to Hood Insulator Replacement .
  6. Close the hood.
