Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

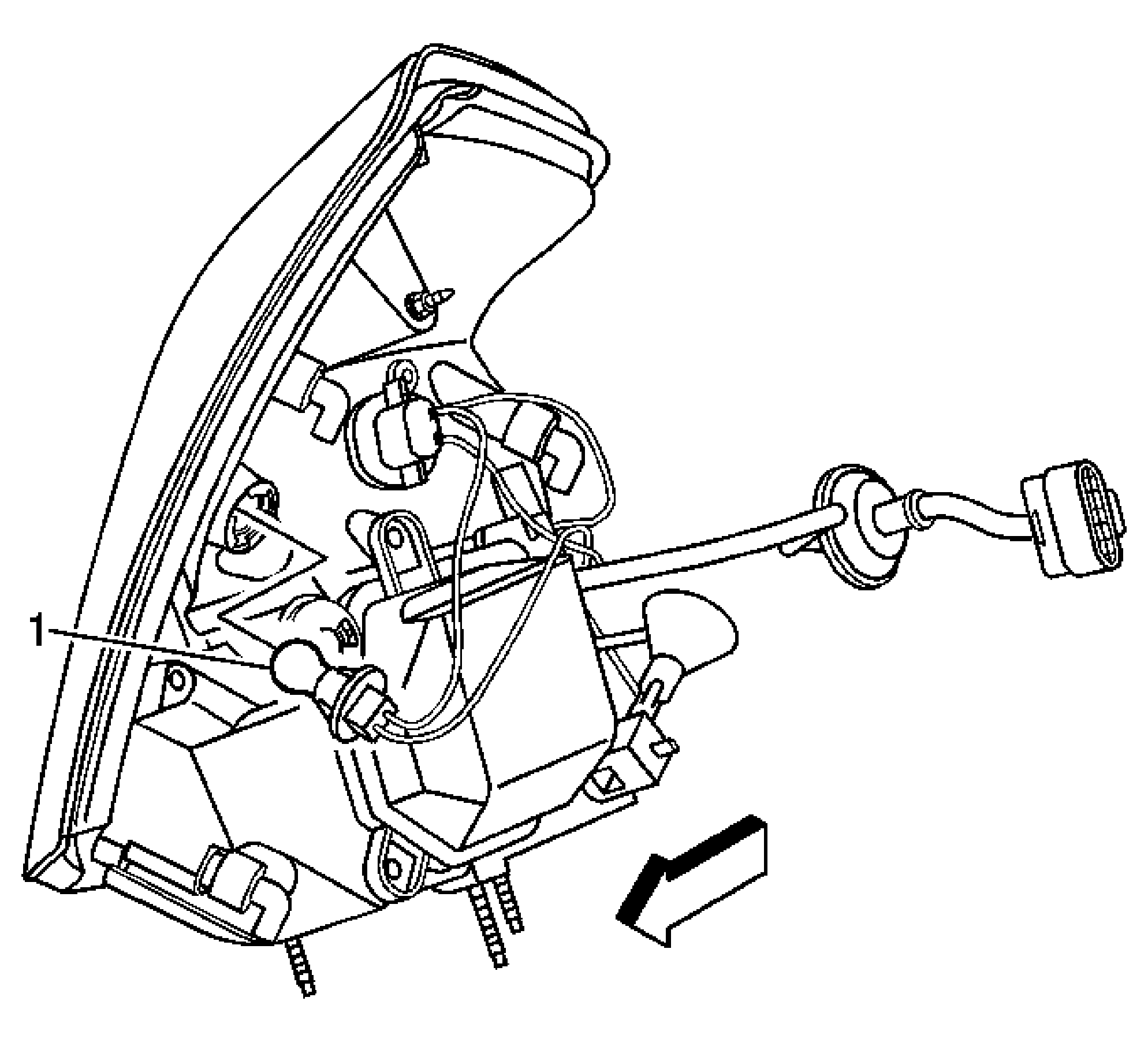

Fig 1: Identifying Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove either the LF or RF headlamp Assembly. Refer to Headlamp Replacement .
1	Front Side Marker Lamp Bulb Tip: Disengage the bulb socket from the headlamp and remove the side marker lamp bulb.
