Horn Replacement

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

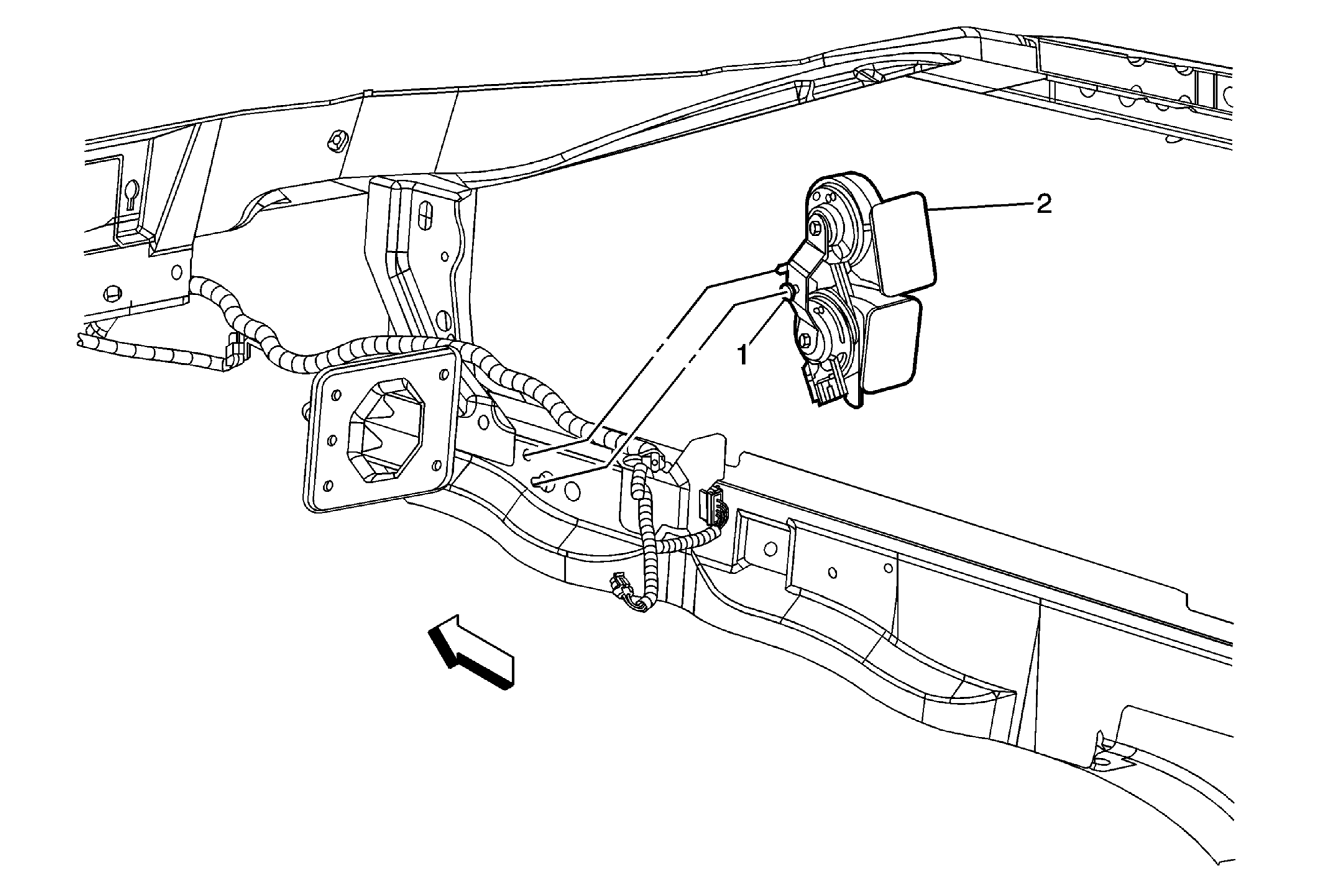

Fig 1: Locating Horn Assembly

Courtesy of GENERAL MOTORS CORP.

Horn Replacement

Callout	Component Name
Preliminary Procedure: Remove the left front fascia extension. Refer to Front Bumper Fascia Extension Replacement (DW) or Front Bumper Fascia Extension Replacement (DX) .
1	Horn Bolt (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Horns Tips Disconnect the electrical connector. Replace each unit as needed.

Callout

Component Name

Preliminary Procedure:
Remove the left front fascia extension. Refer to Front Bumper Fascia Extension Replacement (DW) or Front Bumper Fascia Extension Replacement (DX) .

Horn Bolt (Qty: 1)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Horns

Tips

Disconnect the electrical connector.
Replace each unit as needed.
