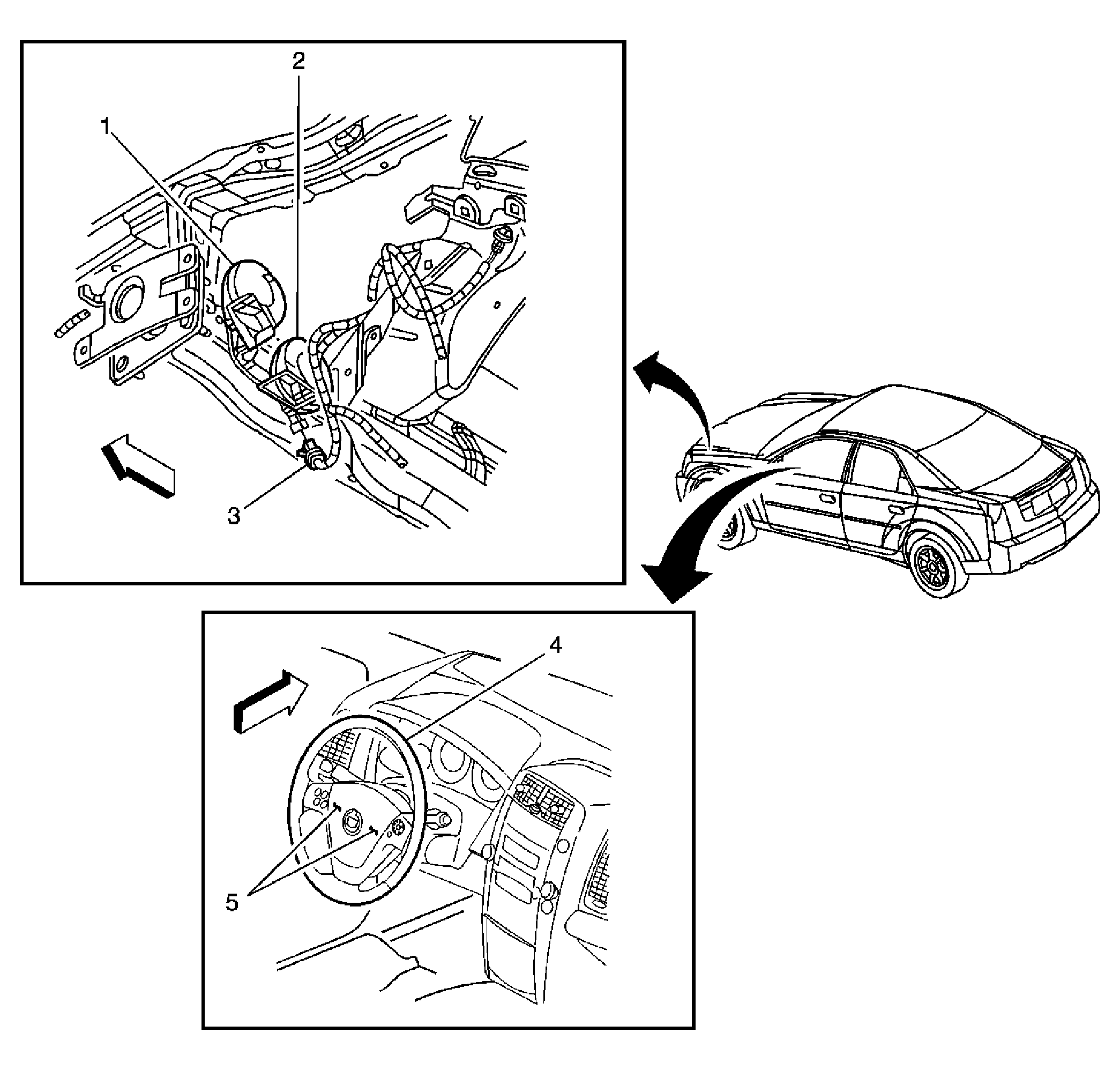

Horn Component Views
WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Horn - Low Note |
| 2 |
Horn - High Note |
| 3 |
Horn Assembly Connector |
| 4 |
Steering Wheel (LHD shown, RHD similar) |
| 5 |
Horn Switch (Part of Inflatable Restraint Steering Wheel Module) |
