Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the hood ajar switch to the vehicle.

NOTE: Refer to Fastener Notice .

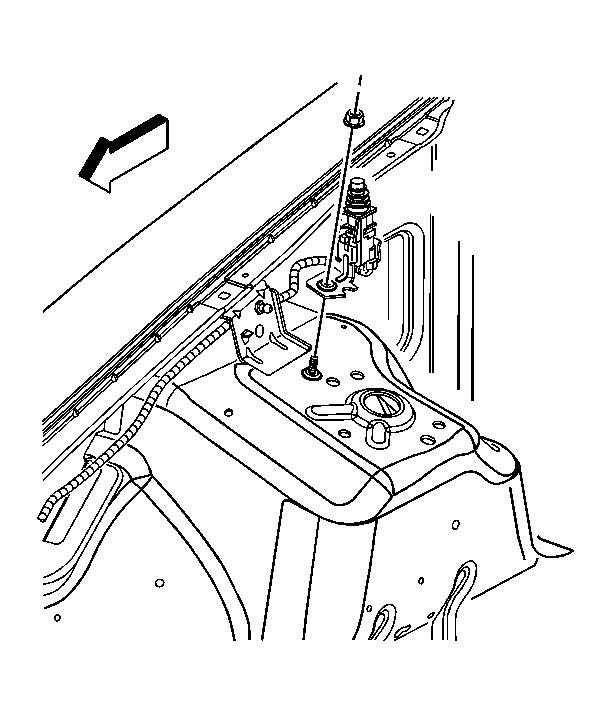

Fig 1: View Of Hood Ajar Switch (Export)

Courtesy of GENERAL MOTORS CORP.

Install the fastener to secure the hood ajar switch.
Tighten: Tighten the fastener to 9 N.m (80 lb in).
Connect the electrical connector to the hood ajar switch.
Close the hood.
