Engine Electrical Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Electrical Components (Under Intake Manifold - LH2 - LHD)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 1

Callout	Component Name
1	Knock Sensor (KS) 1
2	Crankshaft Position (CKP) Sensor
3	Starter Motor
4	Knock Sensor (KS) 2

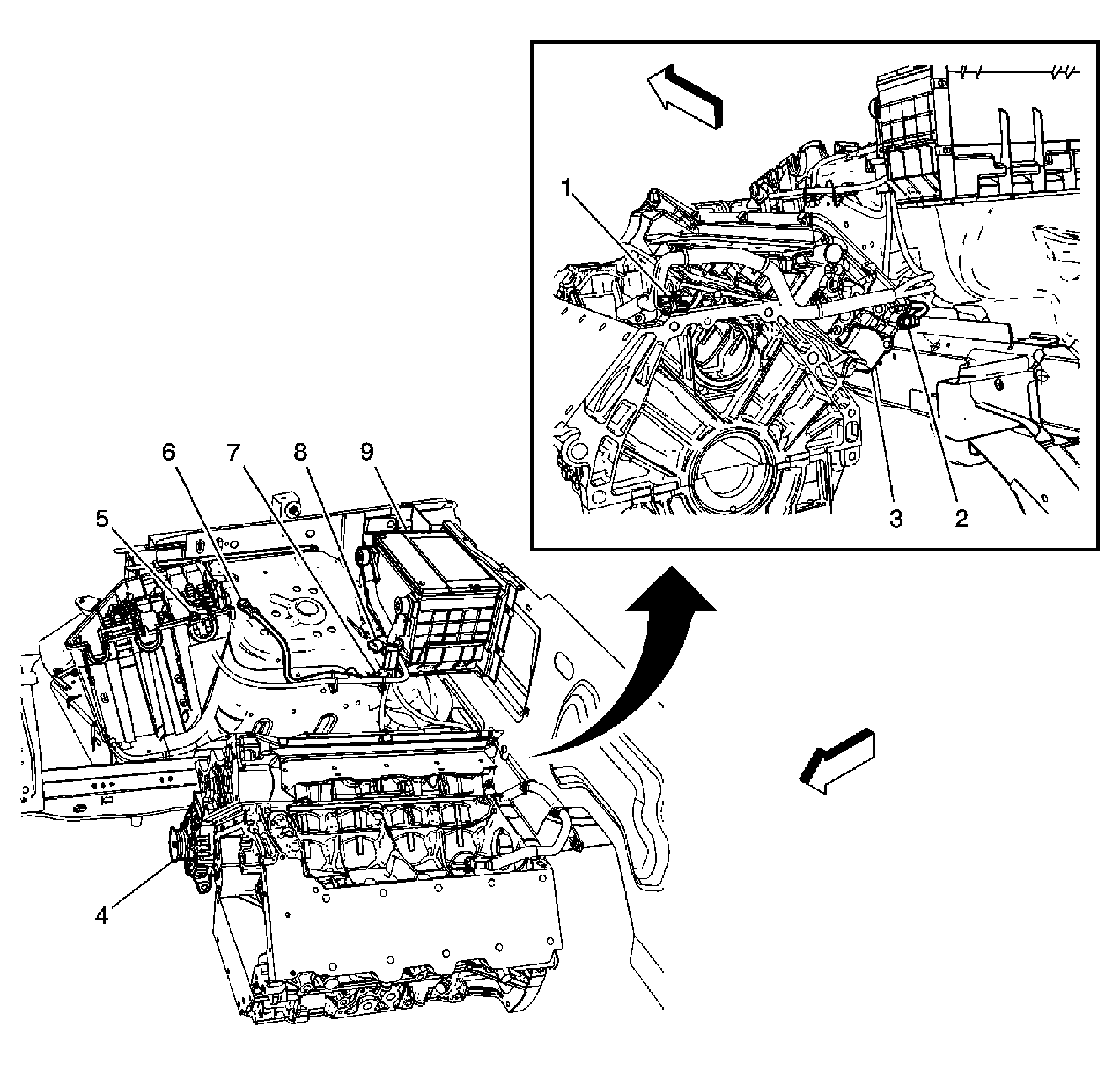

Fig 2: Identifying Battery Cables (LH2 - LHD)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 2

Callout	Component Name
1	C107
2	G102
3	Cylinder Head - RH
4	Generator
5	Battery Positive Voltage (Stud)
6	G105
7	C103
8	Battery Current Sensor
9	Battery

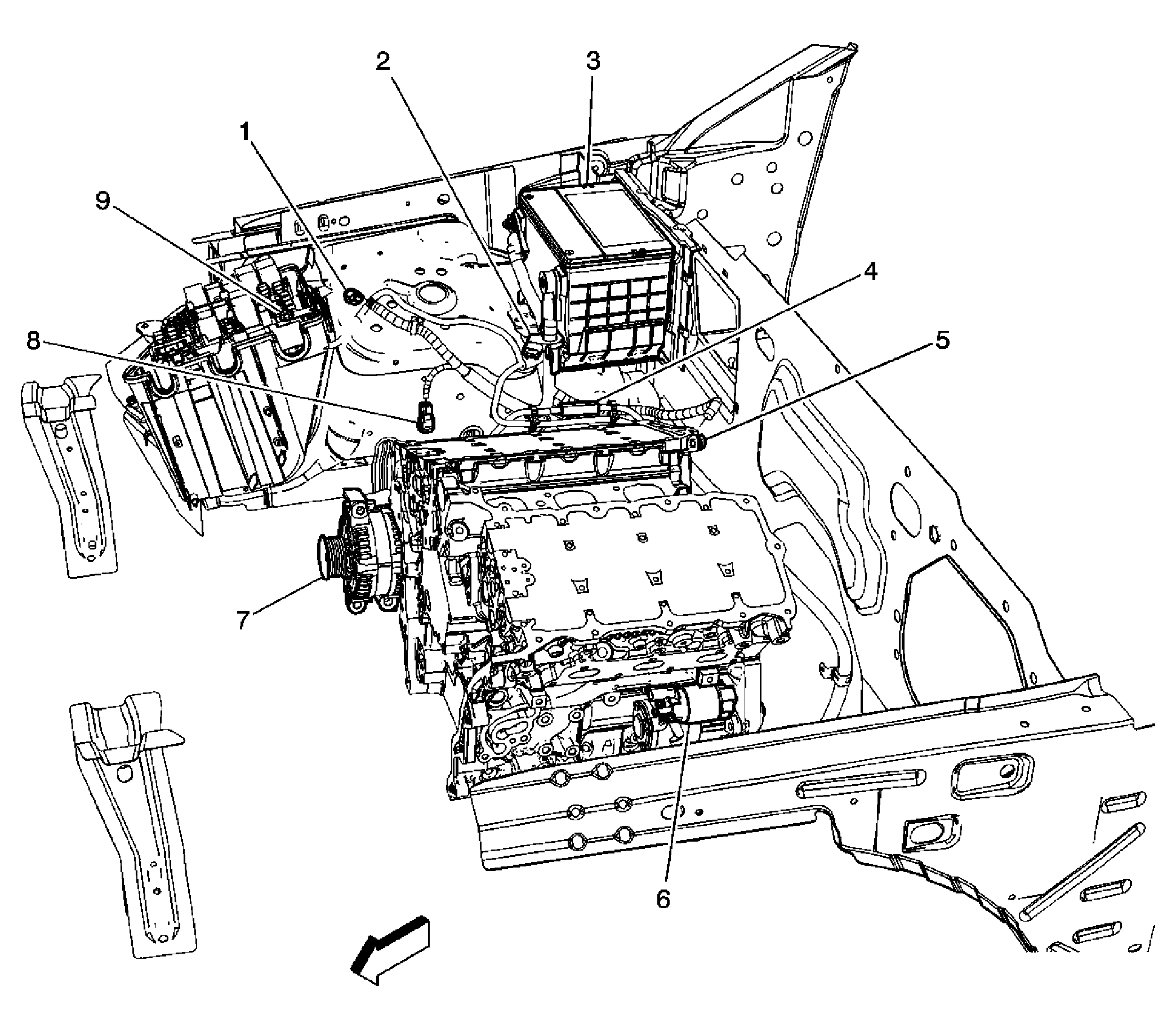

Fig 3: Identifying Battery Cables (LY7 - LHD)

Courtesy of GENERAL MOTORS CORP.

Callouts For Fig 3

Callout	Component Name
1	G105
2	Battery Current Sensor
3	Battery
4	Mega Fuse (200A)
5	G102
6	Starter
7	Generator
8	C103
9	Battery Positive Voltage (Stud)
