Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

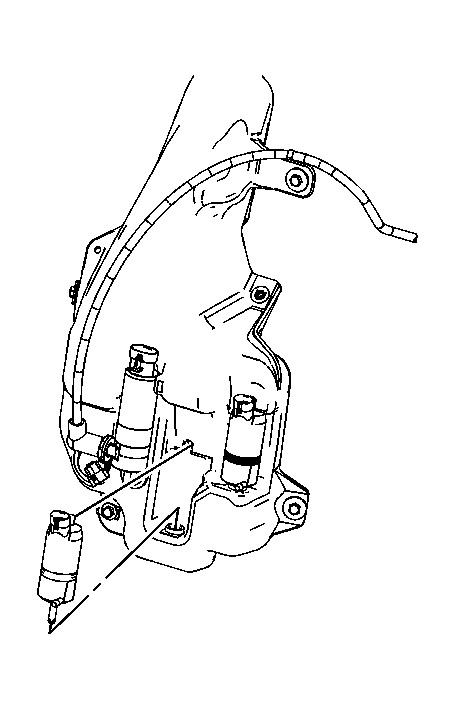

    Fig 1: View Of Windshield Washer Pump
    GM1233338Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the washer pump intake nozzle with washer solvent to aid in the installation of the washer pump into the washer container.
  2. Secure the washer pump in the washer solvent container.
  3. Ensure the washer pump is secure to the washer solvent container.
  4. Connect the electrical connector to the washer pump.
  5. Connect the washer hose to the washer pump.
  6. Install the passenger side front wheelhouse liner.
    7. Fig 2: View Of Lower Air Deflector
    GM738140Courtesy of GENERAL MOTORS CORP.
  7. Install the lower air deflector. Refer to Front Air Deflector Replacement .
  8. Open the hood.
  9. Fill the washer solvent container with new washer solvent.
  10. Verify operation of the pump.
  11. Close the hood.
