Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

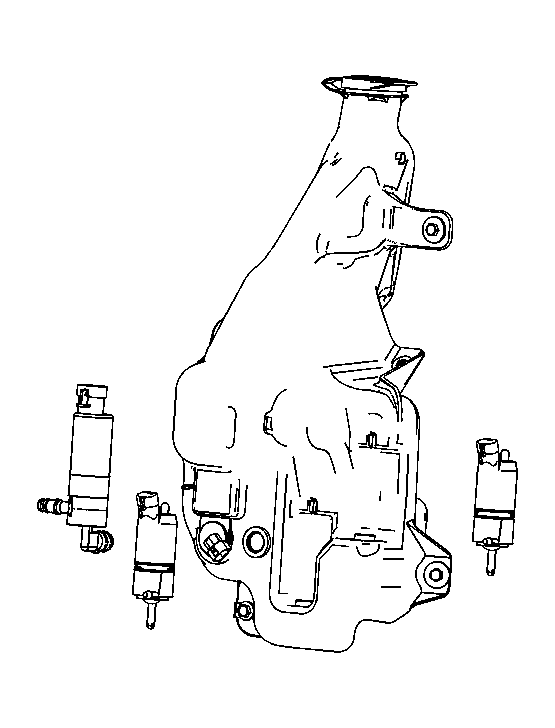

Fig 1: View Of Washer Solvent Container & Exterior Components

Courtesy of GENERAL MOTORS CORP.

Install the following components to the washer solvent container:
- The washer pumps
- The washer level sensor
- The horizontal bracket
- The washer container cap

Fig 2: View Of Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Position the washer solvent container filler neck up through the radiator support.
Engage the electrical harness retainer clip to the washer solvent container.

NOTE: Refer to Fastener Notice .

Install the solvent container fasteners.
Tighten: Tighten the solvent container fasteners to 6 N.m (53 lb in).
Connect the washer hoses to the washer pumps.
Connect the electrical connectors to the washer pumps.
Connect the electrical connector to the washer solvent level sensor.
Install the headlamp assembly. Refer to Headlamp Replacement .
Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Fig 3: View Of Lower Air Deflector

Courtesy of GENERAL MOTORS CORP.

Install the lower air deflector. Refer to Front Air Deflector Replacement .

Fig 4: View Of Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Install the bolt to secure the washer solvent container filler neck to the upper tie bar.
Tighten: Tighten the bolt to 6 N.m (53 lb in).
Fill the washer solvent container.
Install the washer solvent container cap to the washer solvent container.
Close the hood.
