Wiper/Washer Component Views (LHD)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Driver Information Center (DIC) Switch |
| 2 | Dimmer Switch |
| 3 | Turn Signal/Multifunction Switch |
| 4 | Inflatable Restraint Steering Wheel Module |
| 5 | Instrument Panel Cluster (IPC) |
| 6 | Windshield Wiper/Washer Switch |
| 7 | Sunload/Ambient Light Sensor |
| 8 | Speaker - Instrument Panel (UQS) |
| 9 | Analog Clock |
| 10 | Radio/CD/DVD/Navigation Unit (UV2) |
| 11 | Inflatable Restraint I/P Module |
| 12 | HVAC Control Module |
| 13 | Rear Window Defogger Switch |
| 14 | Courtesy Lamp - Right Footwell |
| 15 | Hazard Switch |
| 16 | Tow/Haul Switch |
| 17 | Cigar Lighter |
| 18 | Rear Video Display (U42) |
| 19 | DVD Player (U42) |
| 20 | Speaker - Center Console (UQS) |
| 21 | Auxiliary Power Outlet - Center Console 2 (UQS) |
| 22 | Auxiliary Power Outlet - Center Console 1 |
| 23 | Floor Console |
| 24 | Inflatable Restraint I/P Module Indicator (AQS) |
| 25 | Traction Control Switch |
| 26 | Inside Air Temperature Sensor |
| 27 | Steering Wheel Controls - Right |
| 28 | Courtesy Lamp - Left Footwell |
| 29 | Steering Wheel Controls - Left |
| Callout | Component Name |
|---|---|

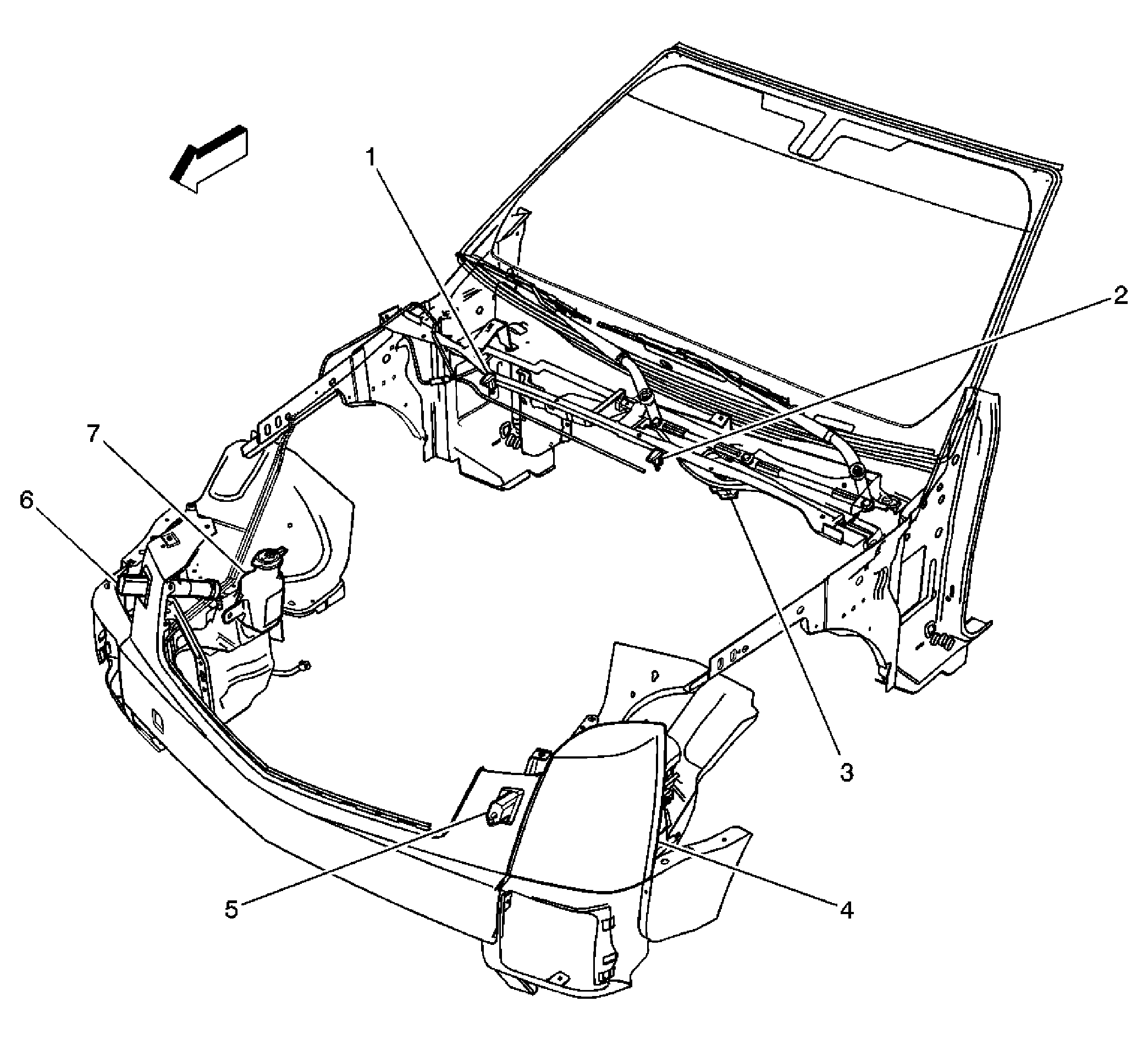

| 1 | Heated Washer Nozzle - Right (XA7) |
| 2 | Heated Washer Nozzle - Left (XA7) |
| 3 | Windshield Wiper Motor |
| 4 | Headlamp - Left |
| 5 | Headlamp Washer Nozzle - Left (CE4) |
| 6 | Headlamp Washer Nozzle - Right (CE4) |
| 7 | Washer Fluid Container |
| Callout | Component Name |
|---|---|

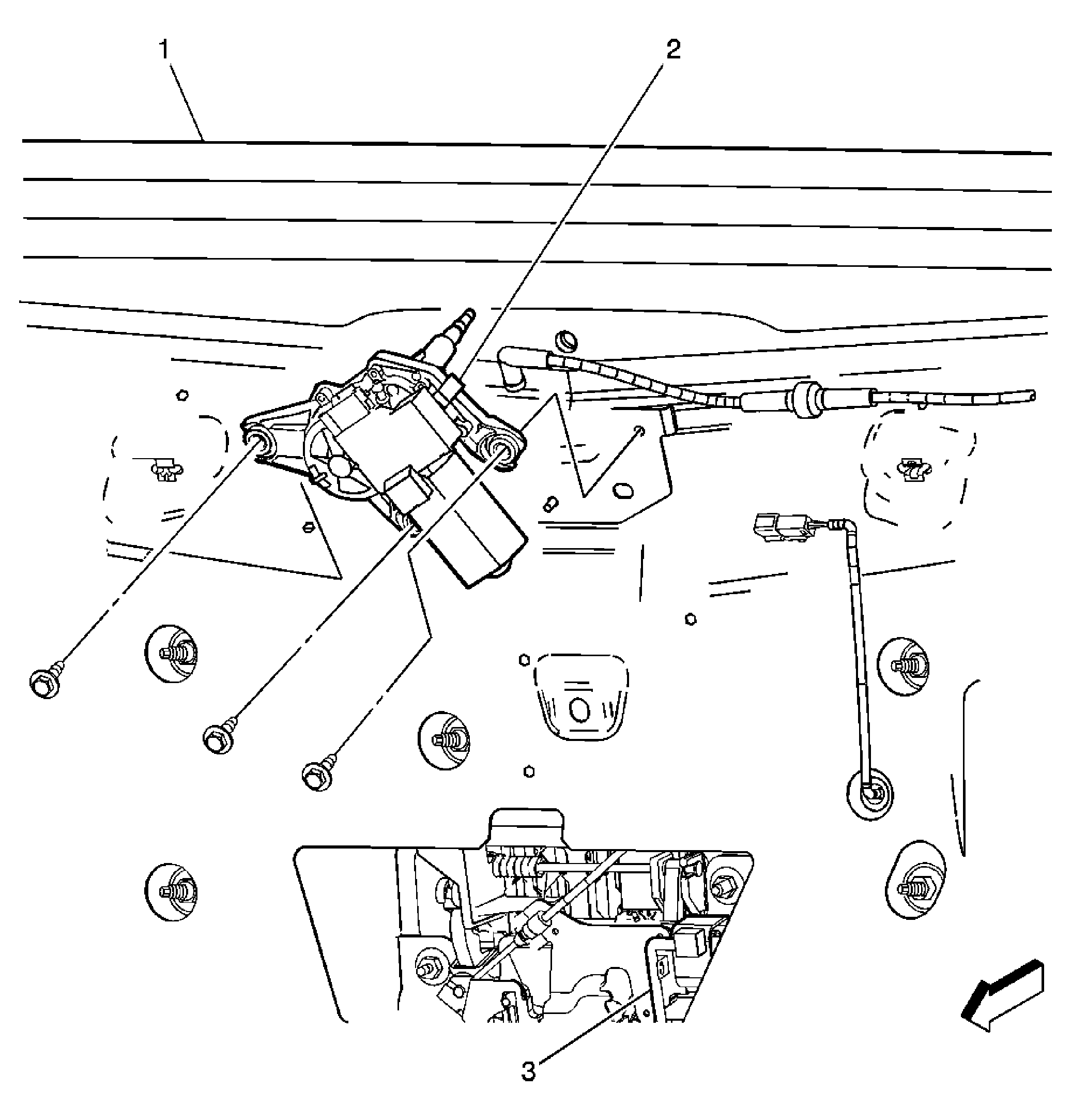

| 1 | Rear Window Defogger Grid |
| 2 | Rear Wiper Motor |
| 3 | Liftgate Latch |
| Callout | Component Name |
|---|---|

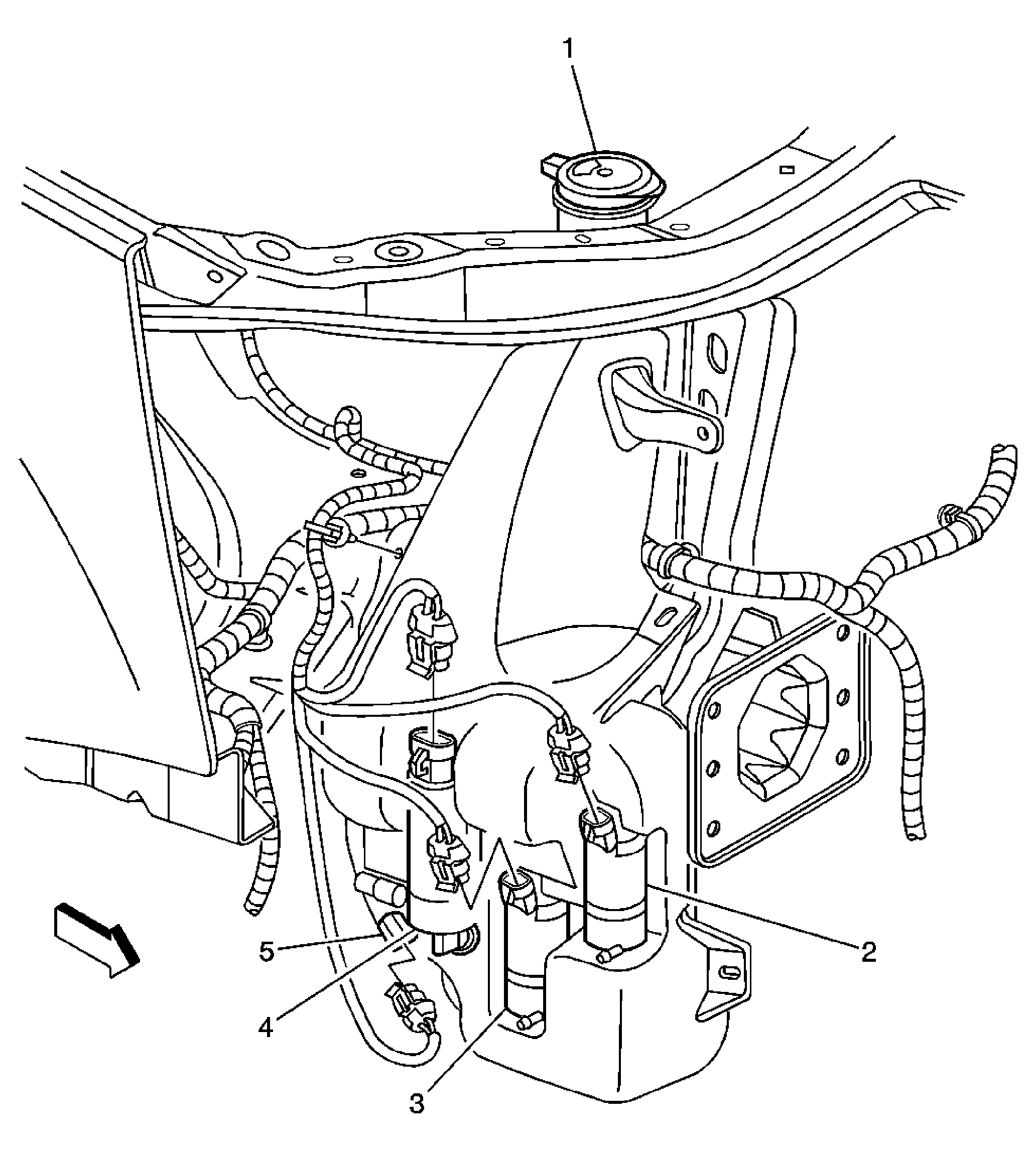

| 1 | Washer Solvent Container |
| 2 | Rear Window Washer Fluid Pump |
| 3 | Windshield Washer Fluid Pump |
| 4 | Headlamp Washer Fluid Pump (CE4) |
| 5 | Washer Fluid Level Switch |
| Callout | Component Name |
|---|---|
| 1 | Rear Wiper/Washer Switch |
| 2 | Blower Motor Switch - Auxiliary (C57) |
| 3 | Not Used |
| 4 | Rear Sunshade Switch (C3B) |
| 5 | Front Sunshade Switch (CF5/C3B) |
| 6 | Sunroof Switch (CF5/C3B)) |
| 7 | I/P Lamps Dimmer Switch |
| 8 | Noise Compensation Microphone (UQS) |
