Television Antenna Amplifier Replacement
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Television Antenna Amplifier Replacement

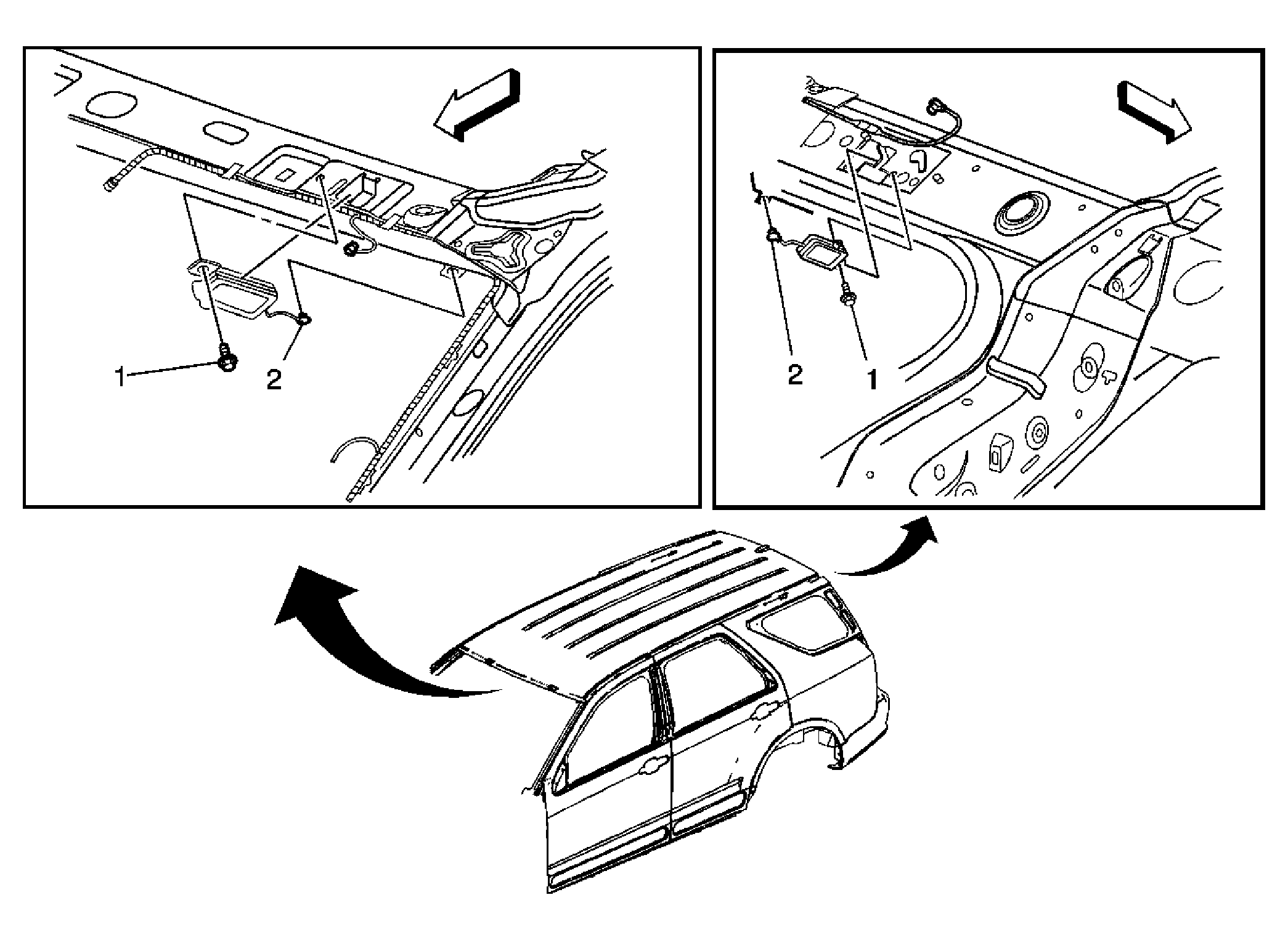

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Television Antenna Amplifier Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
Tighten: 9 N.m(80 lb in) |
| 2 | Television Antenna Amplifier (Qty: 4) Procedure: Disconnect the electrical connectors. |
