Installation Procedure
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
- Connect the electrical connectors.
- Install the overhead console into the headliner opening.
- Ensure the locking tabs are properly positioned.

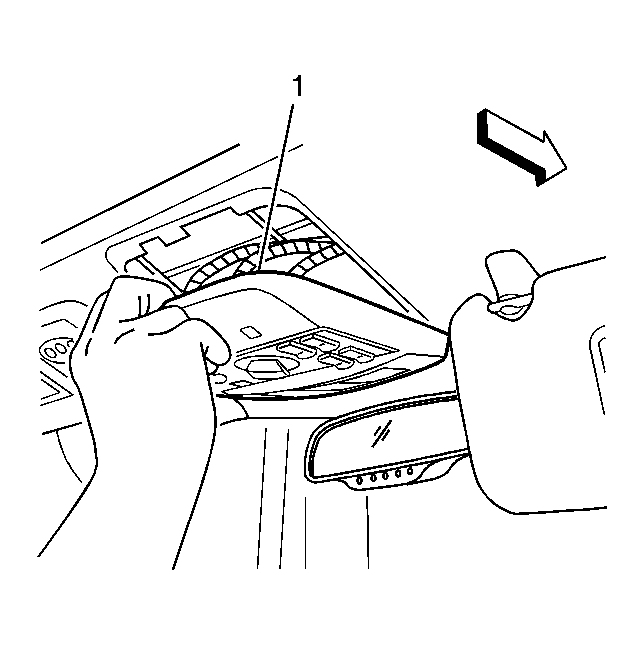

- Press upward on the overhead console (1) to secure the locking tabs to the console bracket.
