Console Front Trim Plate Replacement
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

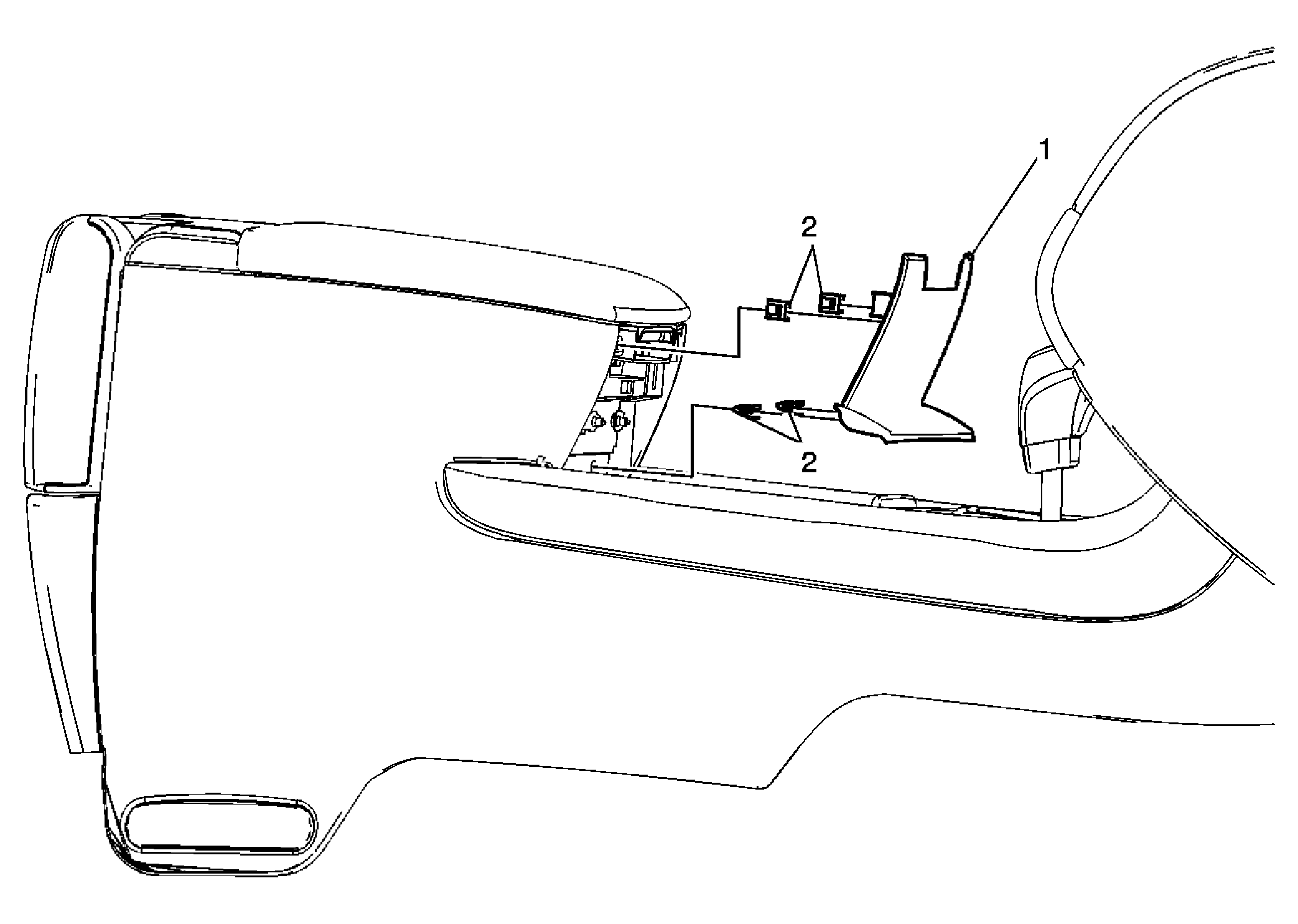

| Callout |
Component Name |
| 1 |
Console Front Trim Plate Assembly
Tip:
Use a plastic trim tool to aid in the removal of the console front trim plate assembly. |
| 2 |
Retainer Clip (Qty: 4) |
