Cooling System Component Views

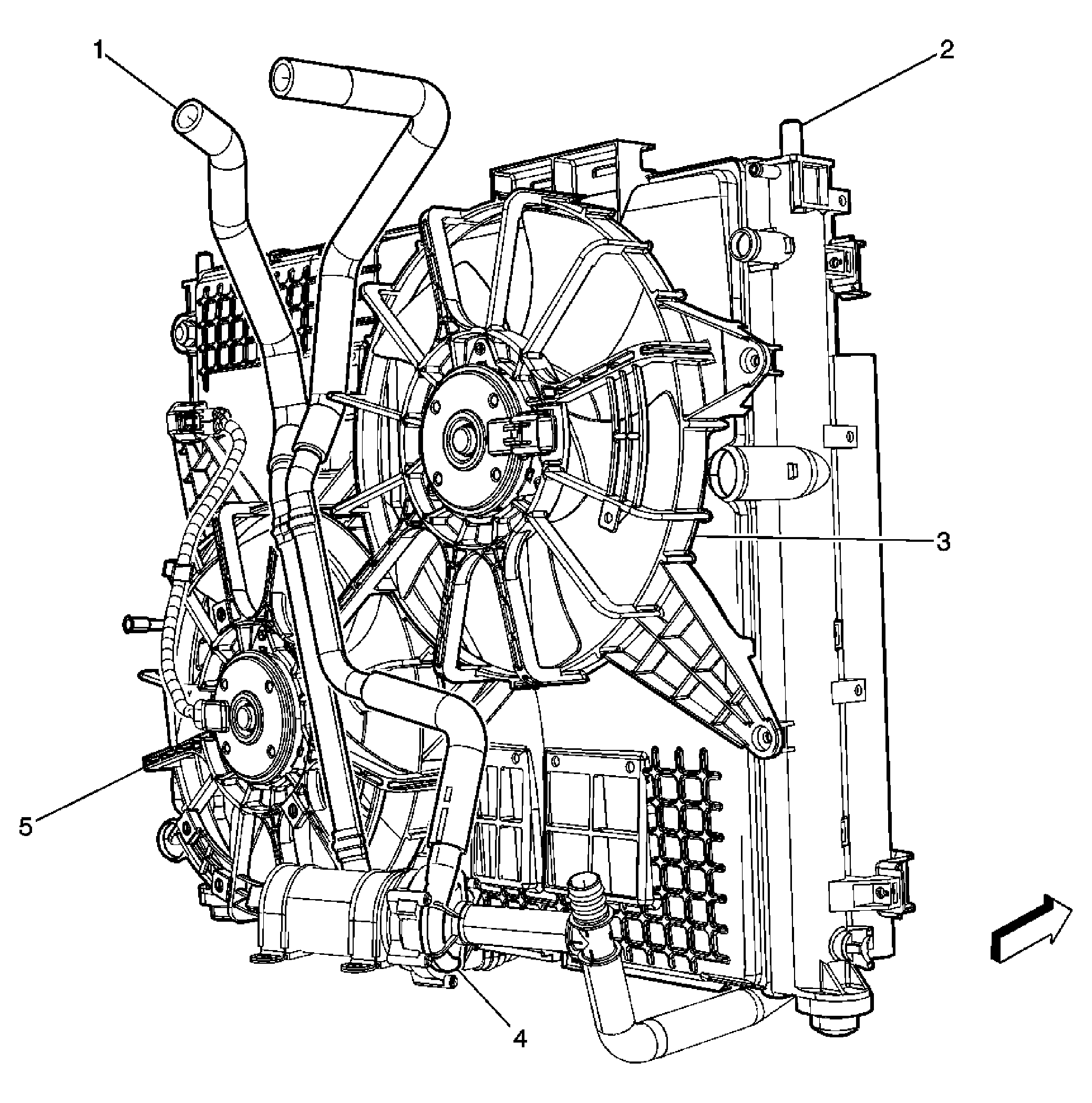

Fig 1: After Boil Heater Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Hose
2	Radiator
3	Cooling Fan - Right
4	After Boil Heater Pump (LH2/V92 Only)
5	Cooling Fan - Left

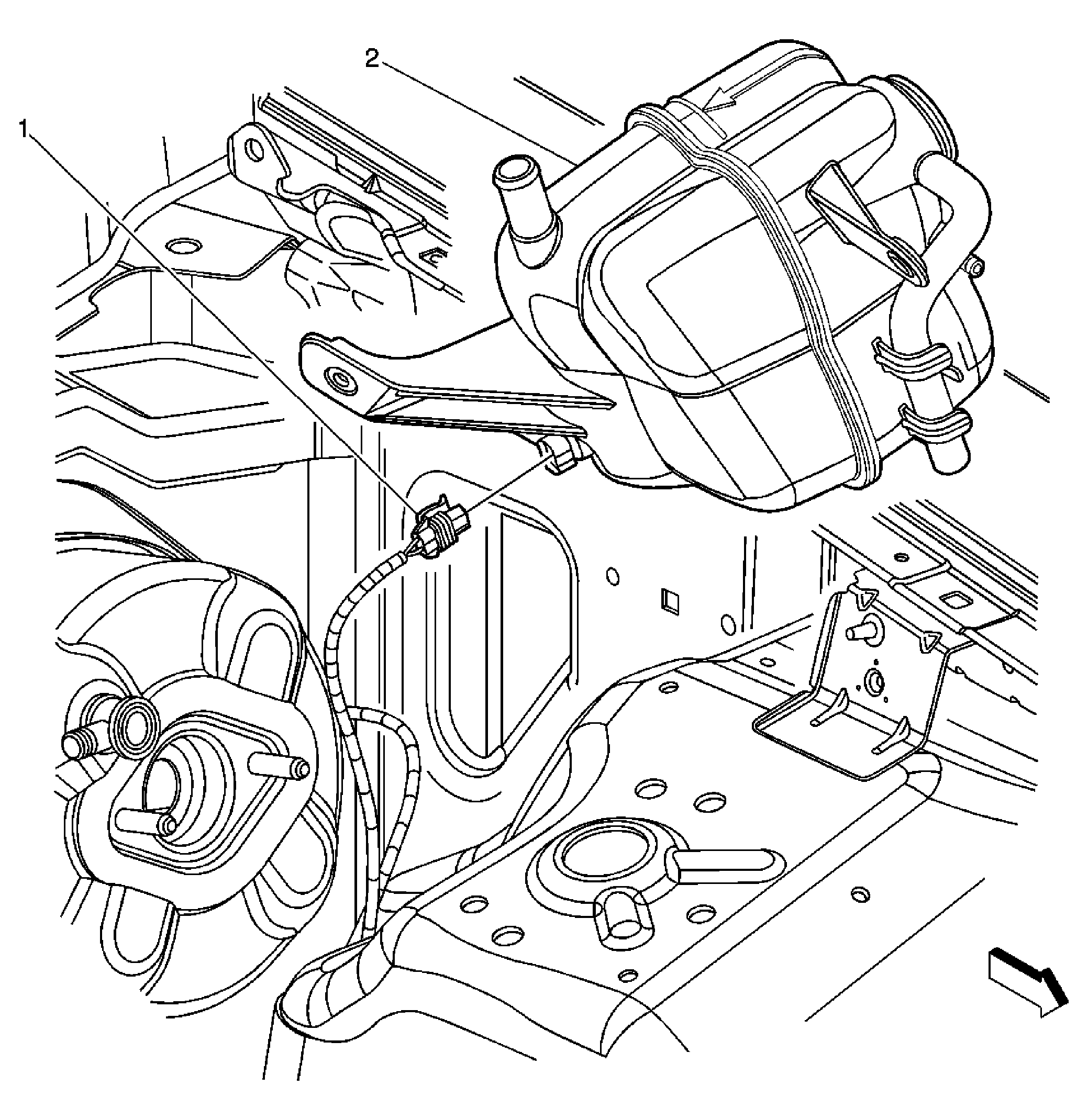

Fig 2: Coolant Level Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Coolant Level Switch
2	Coolant Recovery Reservoir

Fig 3: Cruise Control Module and Cooling Fans (LH2/V92)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Frame
2	Hood Latch Bracket
3	Cooling Fan - Left
4	Cooling Fan - Right
5	Distance Sensing Cruise Control Module (w/K59)
